14
Installation
Window and Fan
Install Fan Kit (if used)
If the 795CFKV2 Circulating Fan Kit (blower) is to be
installed, we suggest that you do it now.
The fan cavity is accessible from the back of the fi rebox
to facilitate its installation. If the fan is retrofi tted after
the installation of the appliance, the appliance will need
to be removed. Therefore, we recommend that, where
possible, the fan be installed before the appliance is
fi tted into the cavity.
Refer to instructions provided with the 795CFKV2 to
install the fan.
6’ power
cord

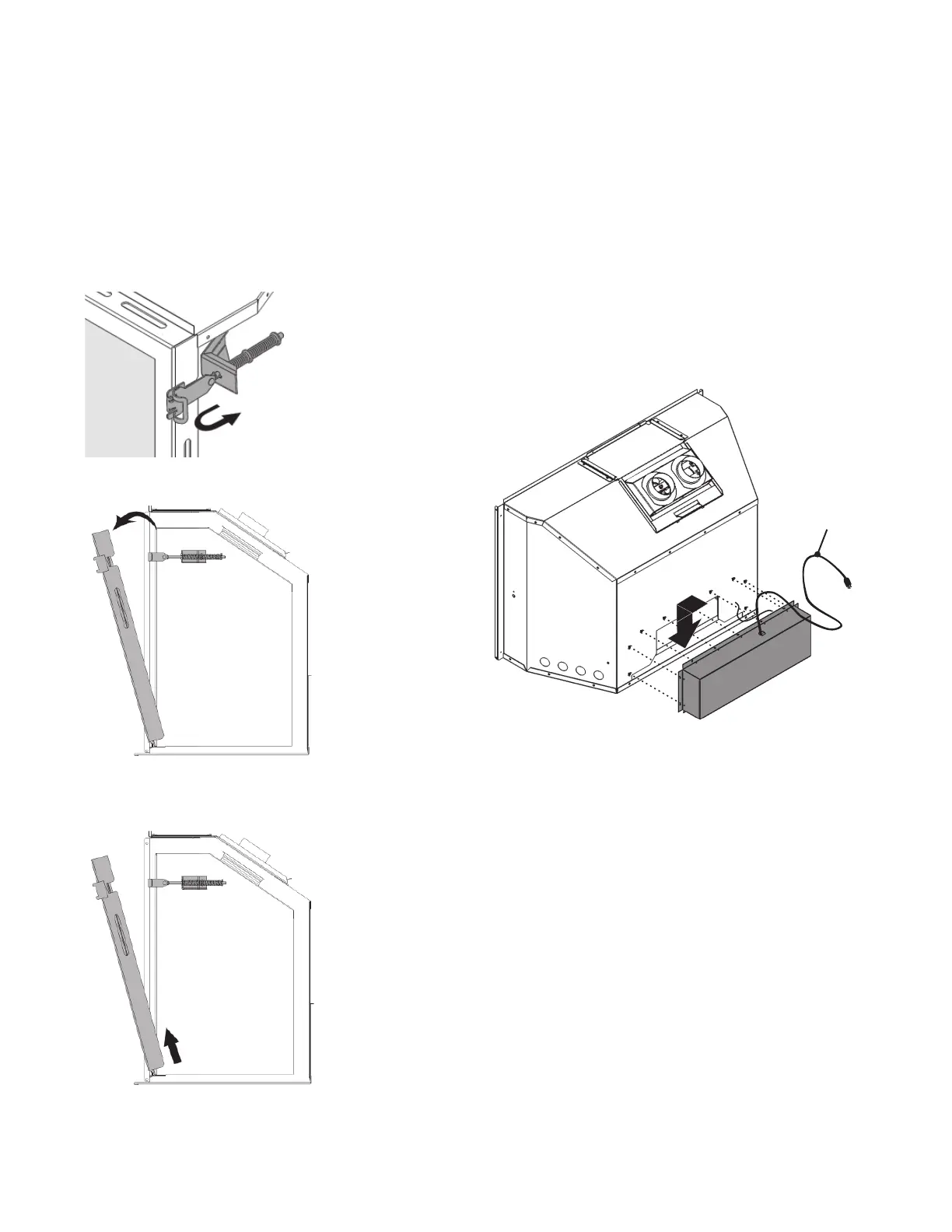

Remove Window
The window is held in place by a spring-loaded lever on
each side. To remove the window:
1. Locate the levers on each side of the window
towards the top. Using your fi nger, pull the lever
towards you and unhook it from the window frame
bracket.
2. Gently pull the top of the window outward.
3. Lift the window out of its bottom railing and set it
aside in a safe place to avoid damage.
