Liner Installation
The following guidelines apply to all panels except
706RGL Refl ective Glass Liners, for which separate
instructions are provided with that kit.
Note all ceramic liner kits come with two extra base
pieces. These may be disposed of, they are not installed
in a 700M.

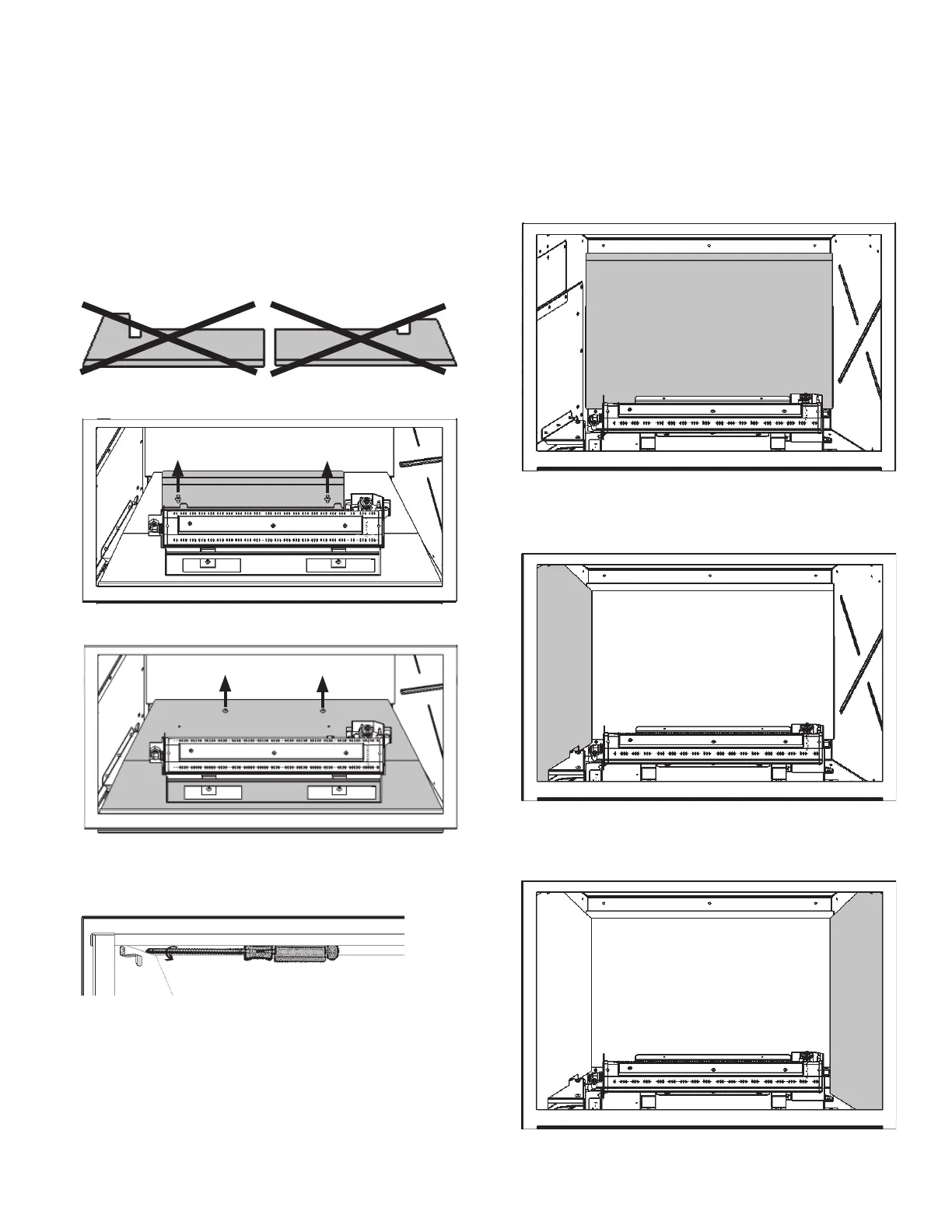

1. Remove the log support (2 screws).
2. Remove the burner cover (2 screws).
3. Inside the fi rebox, on the top of each side, release
the screw of the side brick anchors (one per side)
just enough to allow them to rotate.
4. Install the rear panel on the rail behind the burner,
against the back of the fi rebox. The angled edge
faces the top of the fi rebox. Support the rear panel
with your hand.
5. Install the left hand panel against the inside of the
fi rebox, bottom edge fi rst. Rotate the anchor down
to hold the panel.
6. Install the right hand panel against the inside of the
fi rebox, bottom edge fi rst. Rotate the anchor down
to hold the panel.
