Installation

Fuel Beds

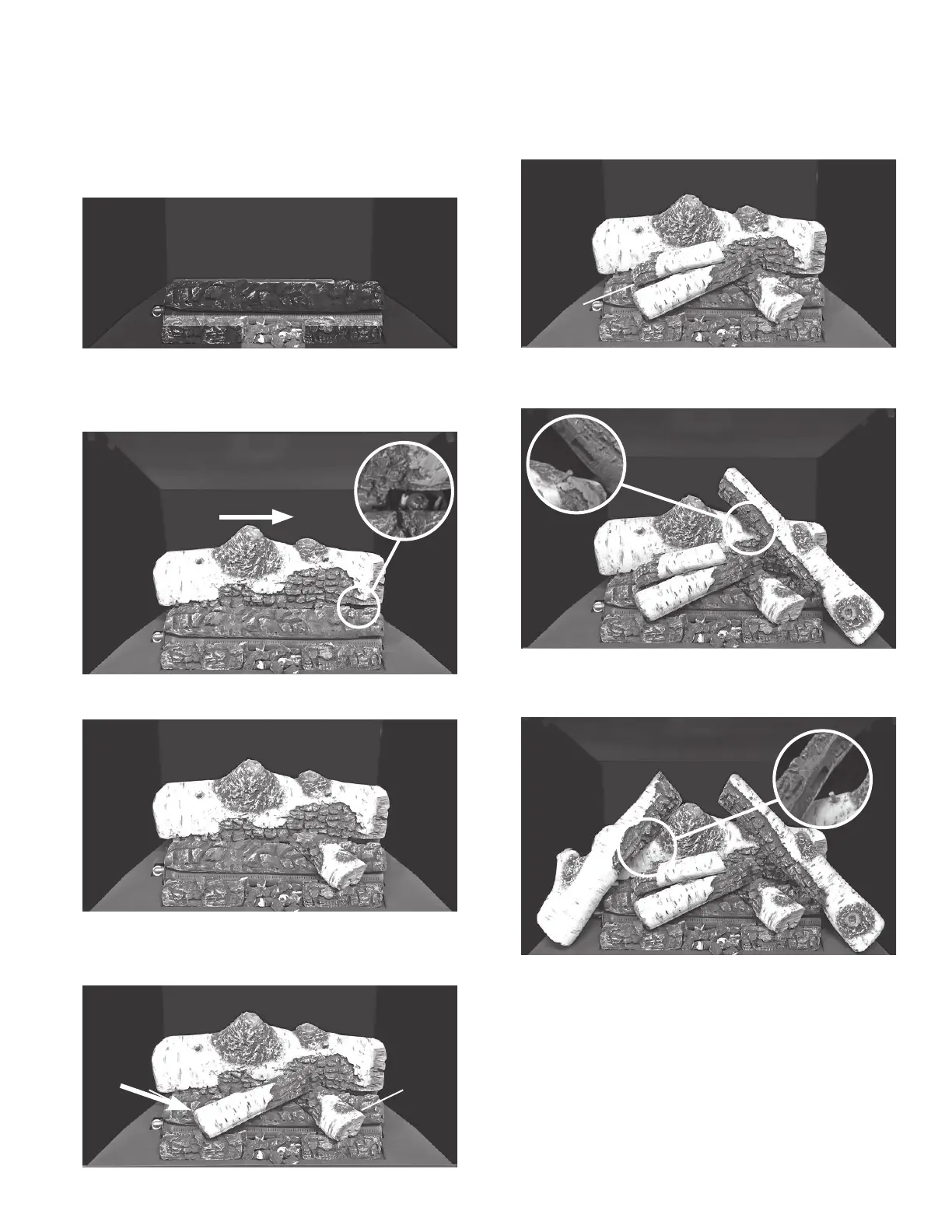

5. Place embers in the gap between H10 and H11, and

behind H10 and H11, against the burner. Hold some

embers back for later steps.

6. Place log G1 on the rear log support as shown,

behind the tabs. Slide it to the right until it presses

gently against the pilot shield.

7. Place log G6 as shown, on top of H11 and G4.

8. Place log G5 as shown, on top of H10 and G6. The

bottom of the log rests against a raised knob on

H10.

H11

H10

9. Place log H7 as shown, on top of G5 and G4.

10. Place the hole in log G3 onto the right pin on G1,

and rest the other end on the platform.

11. Place the hole in log G2 onto the left pin on G1, and

rest the other end on the platform.
