24
Installation
Fuel Beds

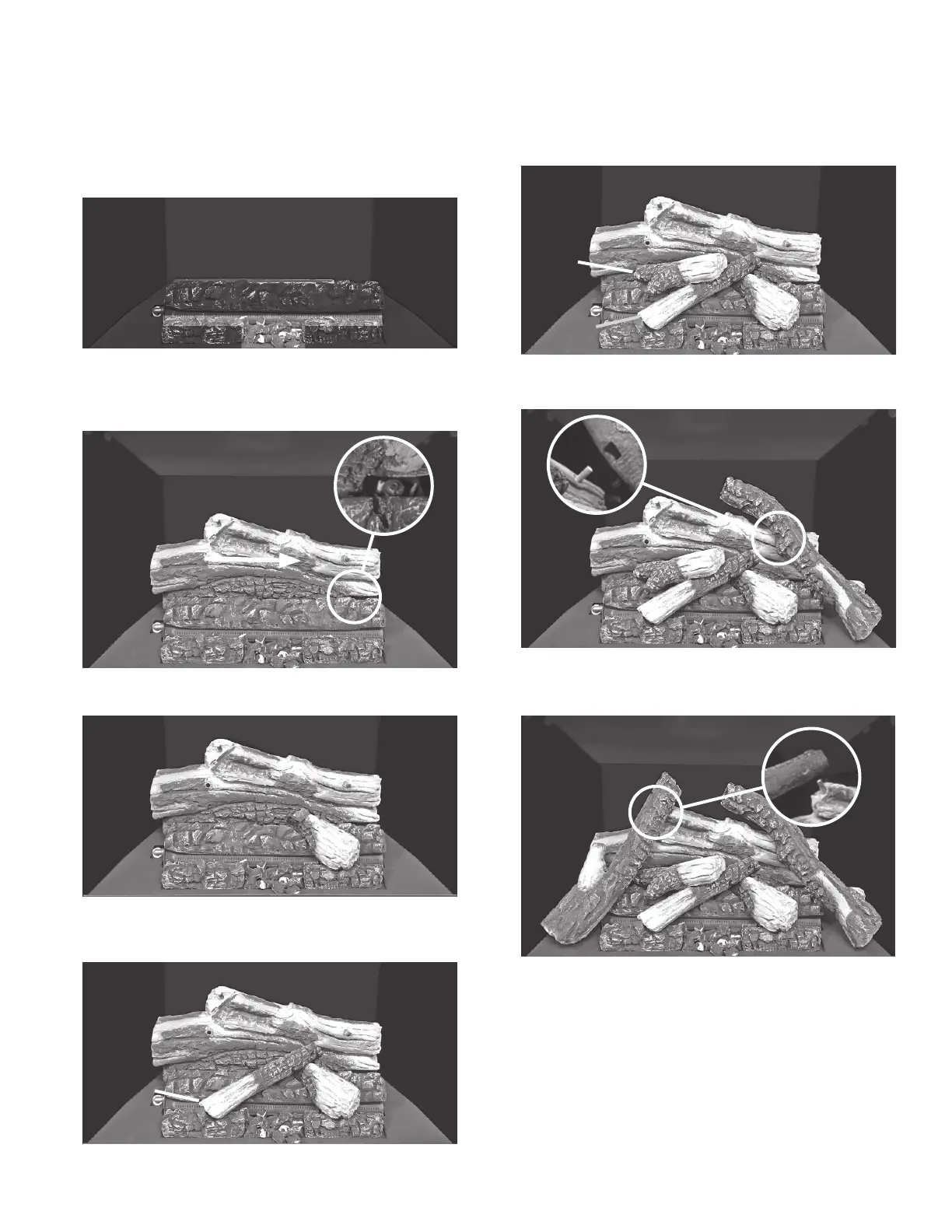

5. Place embers in the gap between H10 and H11, and
behind H10 and H11, against the burner. Hold some
embers back for later steps.
6. Place log G7 on the rear log support as shown,
behind the tabs. Slide it to the right until it presses
gently against the pilot shield.
7. Place log G10 on top of G4 and H11.
8. Place log G16 on top of H10, and into the groove on
top of G10.
G10
G4
H11
G16
H10
G10
9. Place log H28 on top of G16 and G4.
10. Place log G9 onto the right hand pin on G7 and onto
the platform as shown.
11. Place log G8 onto the left hand pin on G7 and onto
the platform as shown.
H28
G4
G16
G7
G9
G8
G7
G7
To Next Page
