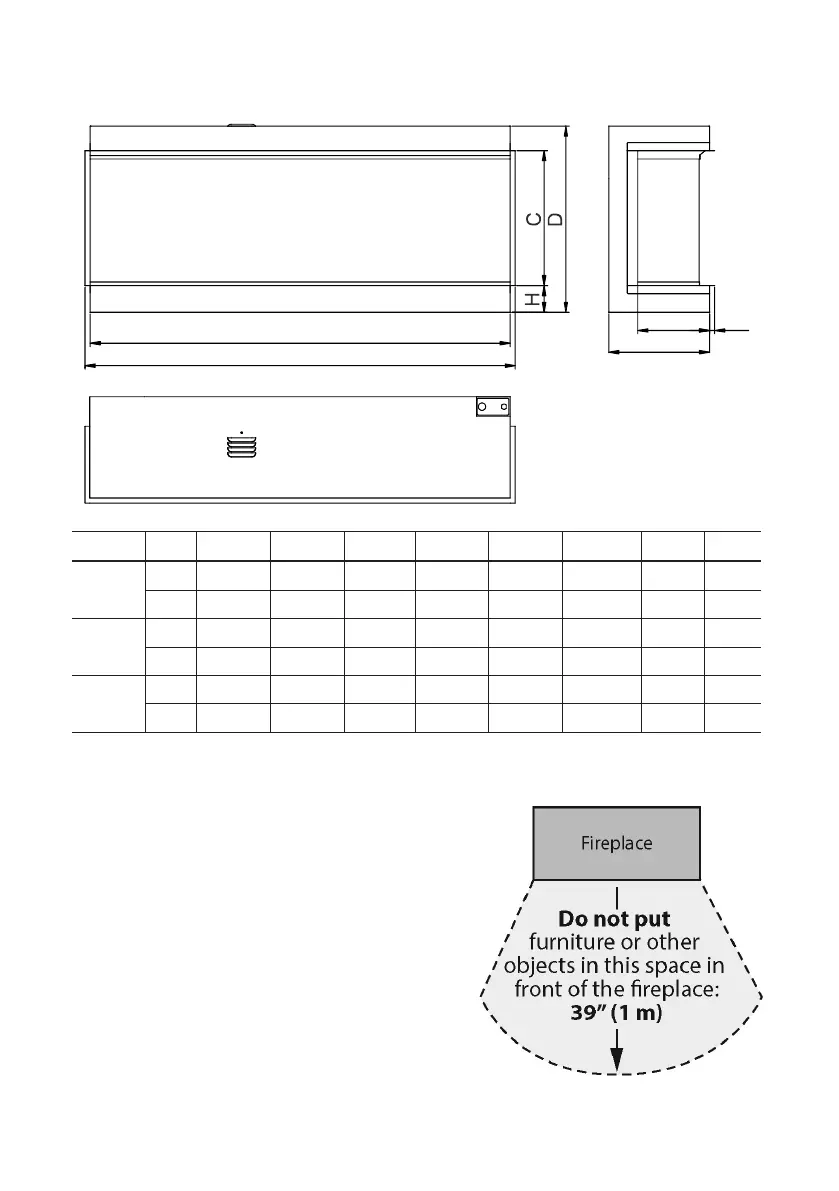

APPLIANCE DIMENSIONS
Clearances from combustibles
Top: 0
Bottom: 0
Closed Sides: 0
Rear: 0
Front and Open Sides: Minimum 1 m (39”)
A
B
G
E
F
Model
Units
A B C D E F G H
LEX2-S
mm
1250 1280 402 560 214 300 15 79
in
49-1/4 50-3/8 15-7/8 22-1/16 8-7/16 11-13/16 9/16 3-1/8
LEX3-S
mm
1500 1530 402 560 214 300 15 79
in
59-1/16 60-1/4 15-7/8 22-1/16 8-7/16 11-13/16 9/16 3-1/8
LEX4-S
mm
1800 1830 402 560 214 300 15 79
in
70-7/8 72-1/16 15-7/8 22-1/16 8-7/16 11-13/16 9/16 3-1/8
