15

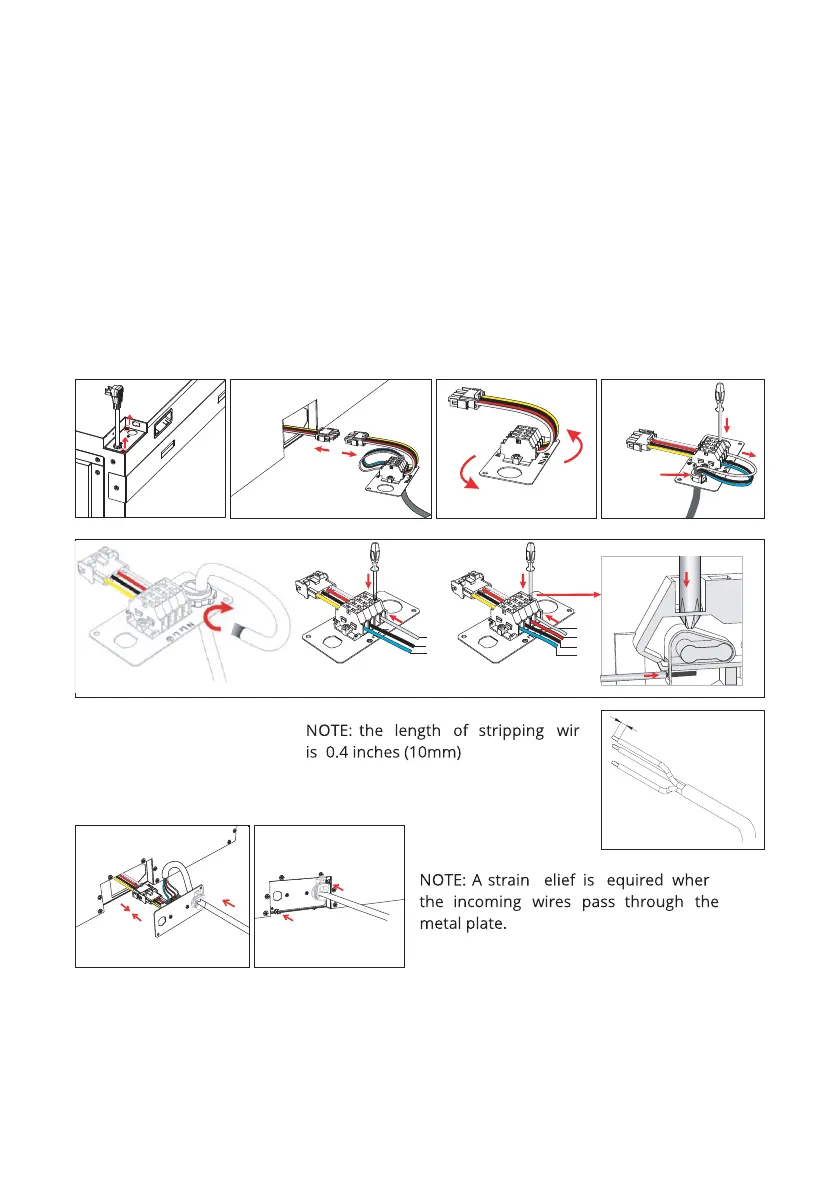

The power connection can be made with the 6 feet Mains Cable provided or
alternatively it can be hard wired by unscrewing and removing the Access
Plate, the Mains Cable and retention grommet. The access plate can be
repositioned so that the 22mm hole sits over the cutout in back of appliance.
The 22mm hole can be used for hard wiring access with a strain relief clamp.
WARNING! All electrical installation must be performed by a qualified
electrician and must be electrically wired and grounded in accordance
with local codes or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 0 or the Canadian Electrical Code, CSA C22.1.
Hard Wiring
120V 240V
N
L1
G
N
L2
G
L1
1
2
Turn 180°
Remove
1
0
e
r r e
To Next Page
