INSTALLATION
Flush Mounted Installation

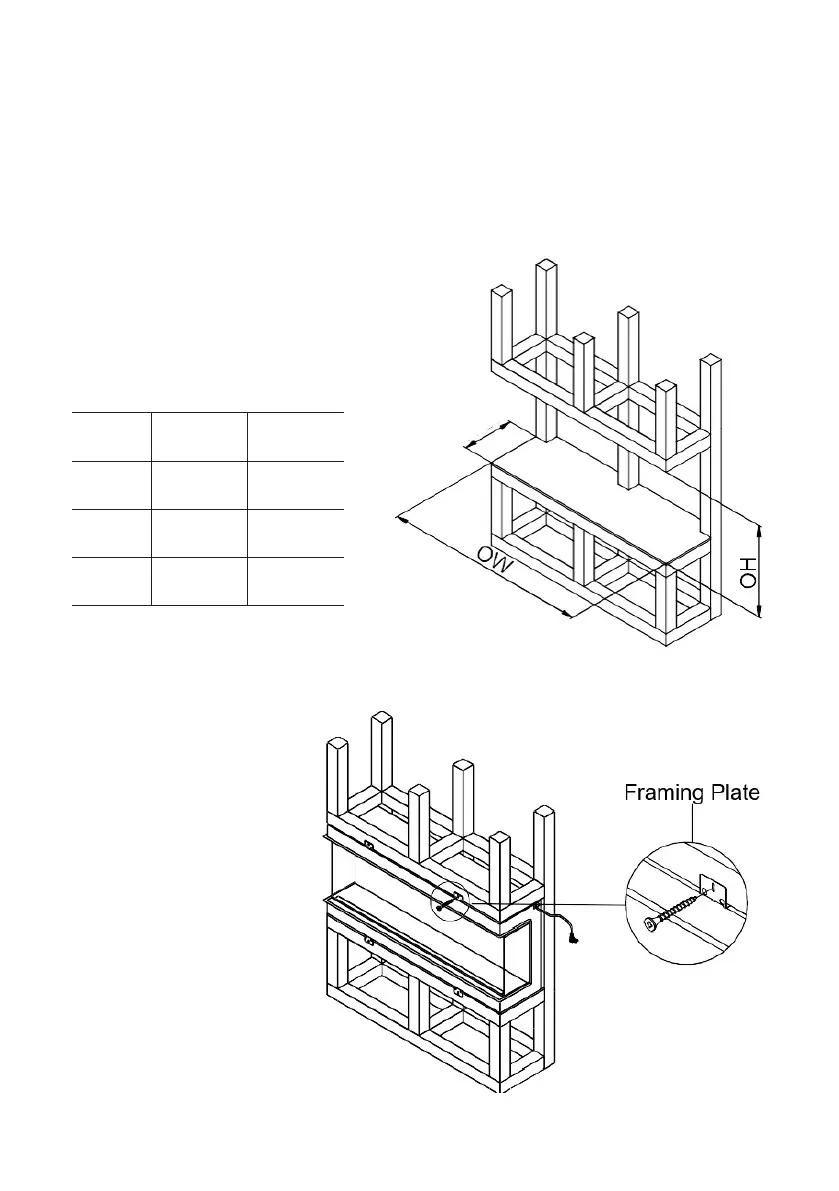

Prepare the framing using the image below as a general guide.
NOTE: Ensure a firm flat positioning of the appliance and secure fixing to
avoid vibration and movement of the appliance after applying wall finish.
Push the appliance into the framing and bend out the four brackets on the
upper and lower edges of the appliance; secure it to the framing with screws
provided.
Model
Overall
Width
Overall
Height
LEX2-S
1260
[49-5/8]
575
[22-11/16]
LEX3-S
1510
[59-1/2]
575
[22-11/16]
LEX4-S
[71-5/16]
1810
575
[22-11/16]
Units = mm [inches]
Min. 320
[12-5/8]
