17

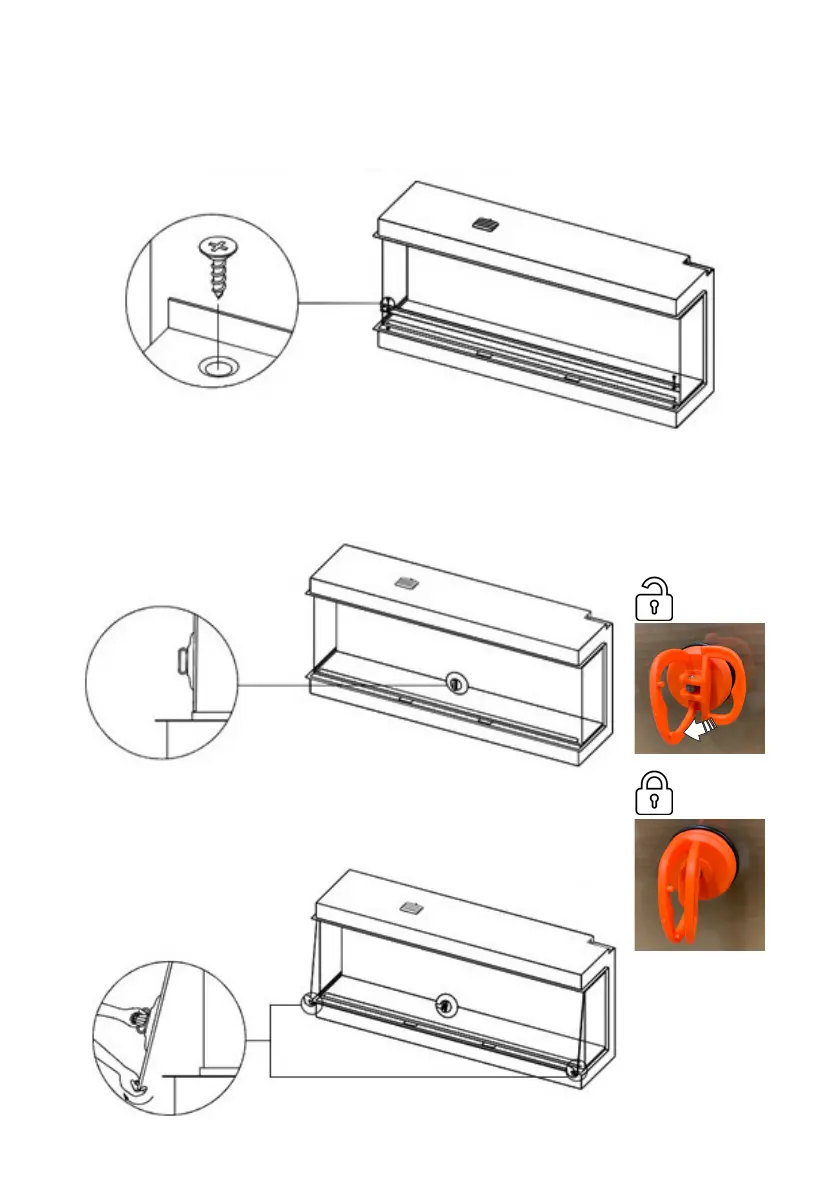

Removing the front glass panel
1. Remove the 2 countersunk screws and remove the glass retaining strip
as shown below.
2. Use the suction cup(s) provided to support the middle of the glass panel
and lock them as indicated below.
3. Lift the panel upward and pull it forward at its lower
edge. Carefully lift the glass away as shown below.
Suction cups
LEX2-S = 1
LEX3-S / LEX4-S = 2
