19
Wall finish
NOTE: Hard surfaces can amplify sound. Consider adding some underlay
or similar to the inside surface of the wall finish.

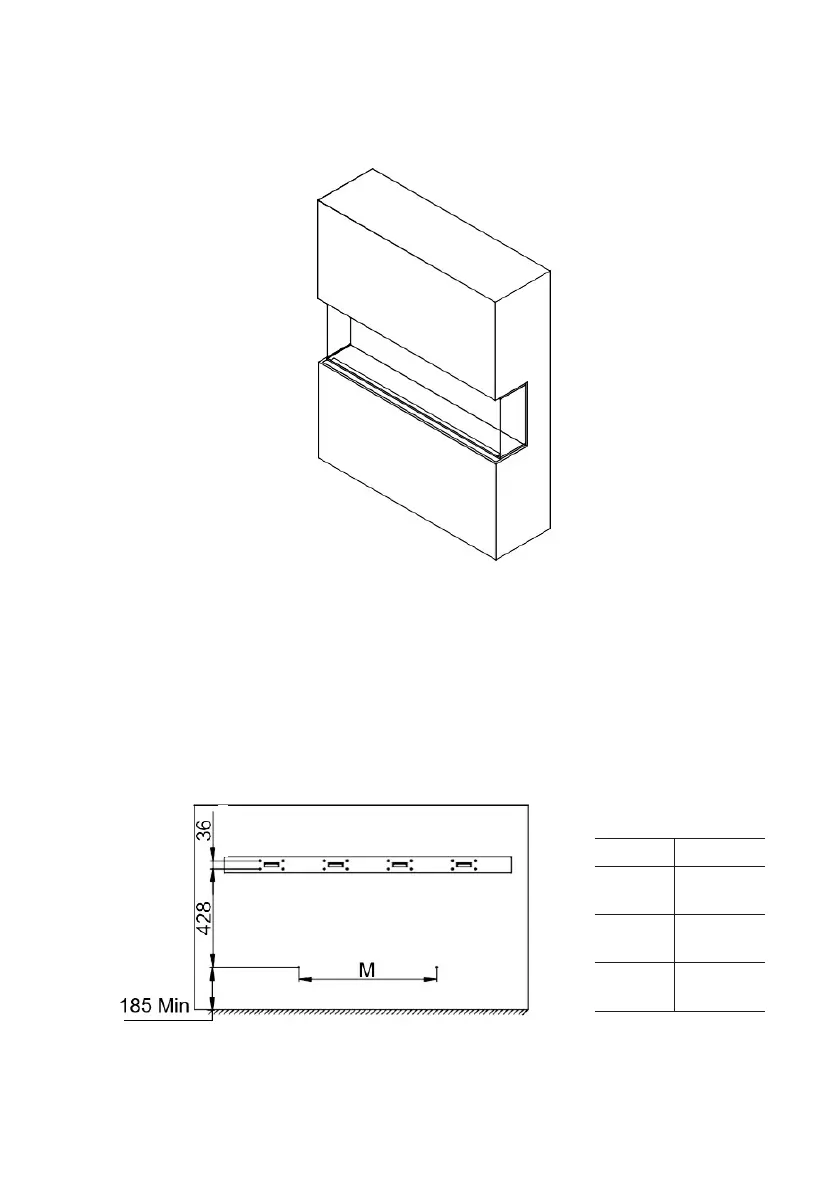

Wall Mounted Installation
1. Remove the wall bracket from the rear of the appliance.
2. Place the bracket horizontally against the wall where you plan to install
the appliance.
3. Using the wall as a template, mark the hole position as shown in the
figure below.
4. Mark the position for lower brackets.
Model M
LEX2-S
648
[25-1/2]
LEX3-S
1000
[39-3/8]
LEX4-S
1200
[47-1/2]
Units = mm [inches]
[7-5/16]
[16-7/8]
[1-7/16]
