20

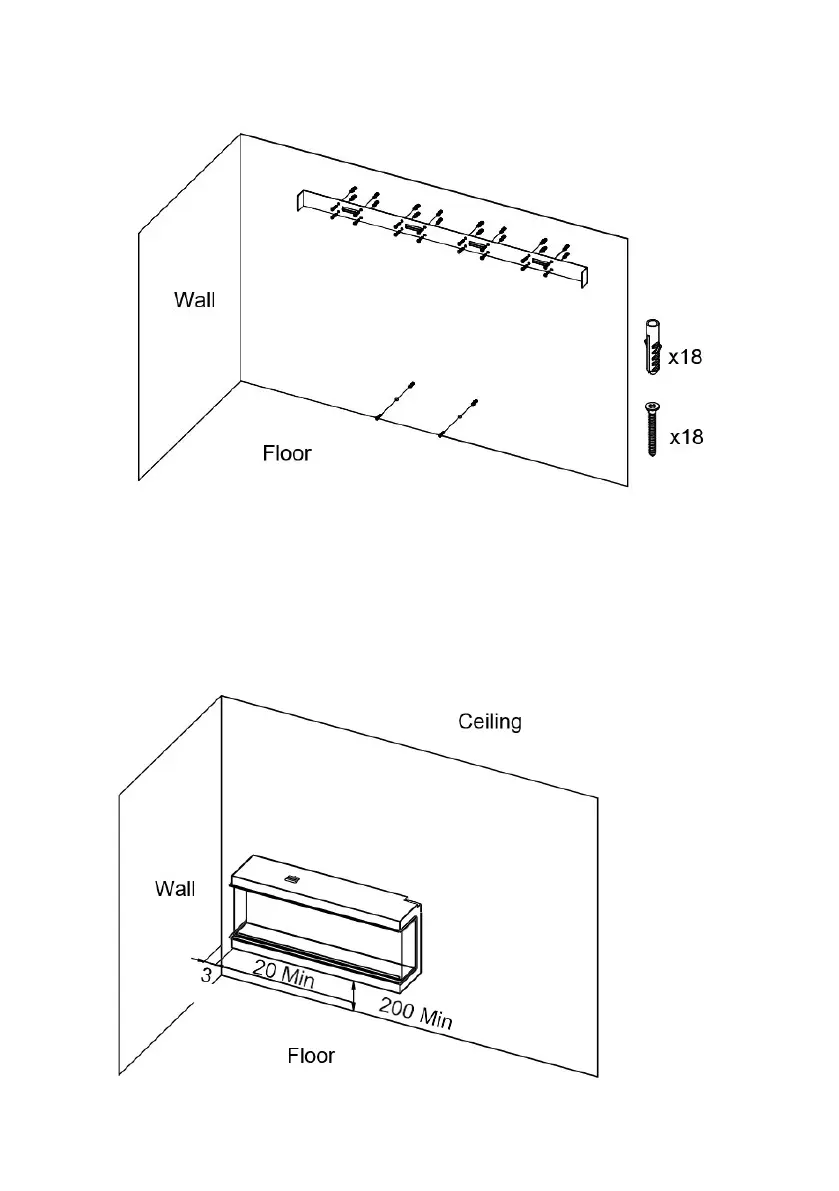

5. Drill holes and use the wall plugs supplied to prepare for the lower
bracket installation.
6. Carefully mount the appliance on the hooks of the wall bracket and
secure it with the screws provided (1 at each end).
7. Use four screws to secure the bottom brackets to the corresponding
holes on the underside of the appliance, adjusting the brackets position
to ensure the appliance is plumb with the wall. Secure the brackets to
the holes previously prepared.
Units = mm [inches]
[13/16]
[7-7/8]
[1/8]
