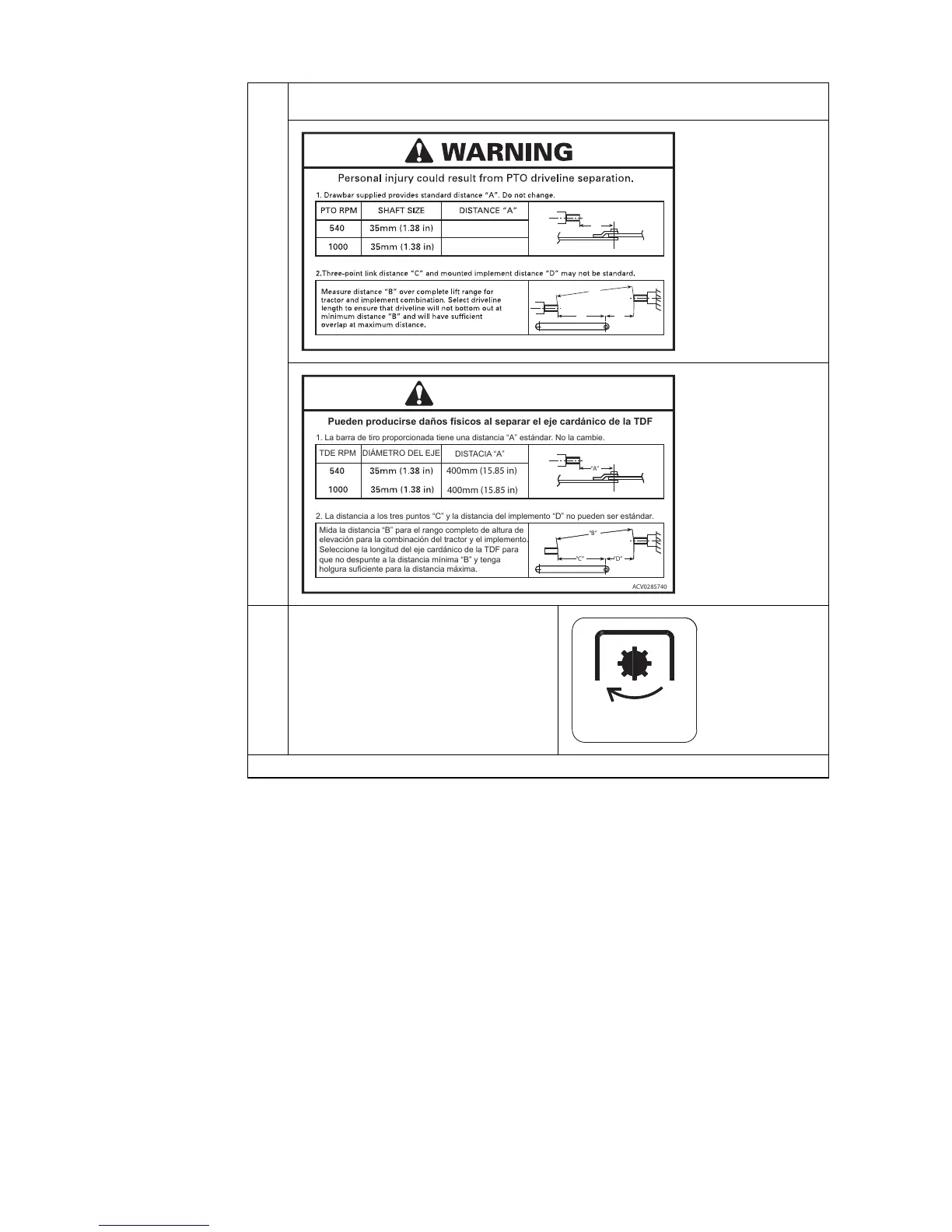

14 Warning: Country-specific sign indicating the standard distances related to PTO driveline. Located at
the back of the tractor, on the left rear wheel mudguard.
“B”
“C” “D”
“A”
400mm (15.85 in)
400mm (15.85 in)
ACV0279640
400mm (15.85 in)
400mm (15.85 in)
“B”
“C” “D”
“A”
ATENCIÓN
Pueden producirse daños físicos al separar el eje cardánico de la TDF
1. La barra de tiro proporcionada tiene una distancia “A” estándar. No la cambie.
TDE RPM
DIÁMETRO DEL EJE
DISTACIA “A”
2. La distancia a los tres puntos “C” y la distancia del implemento “D” no pueden ser estándar.
Mida la distancia “B” para el rango completo de altura de
elevación para la combinación del tractor y el implemento.
Seleccione la longitud del eje cardánico de la TDF para
que no despunte a la distancia mínima “B” y tenga
holgura suficiente para la distancia máxima.
400mm (15.85 in)
400mm (15.85 in)
ACV0285740
ATENCIÓN
15 Sign indicating location of the PTO emergency
stop. Located at the back of the tractor, below the
rear window.
STOP
A C V 0178450
Table continued on next page
1. Safety precautions
- 17 -
