Valtra T214 User Manual

3.2.7 Using the windscreen wiper and washer
5
20
30
40
50
0
5
0
20
25
30
1
GUID-50D64ECD-35D1-4CD7-A725-22439E1BBC6D

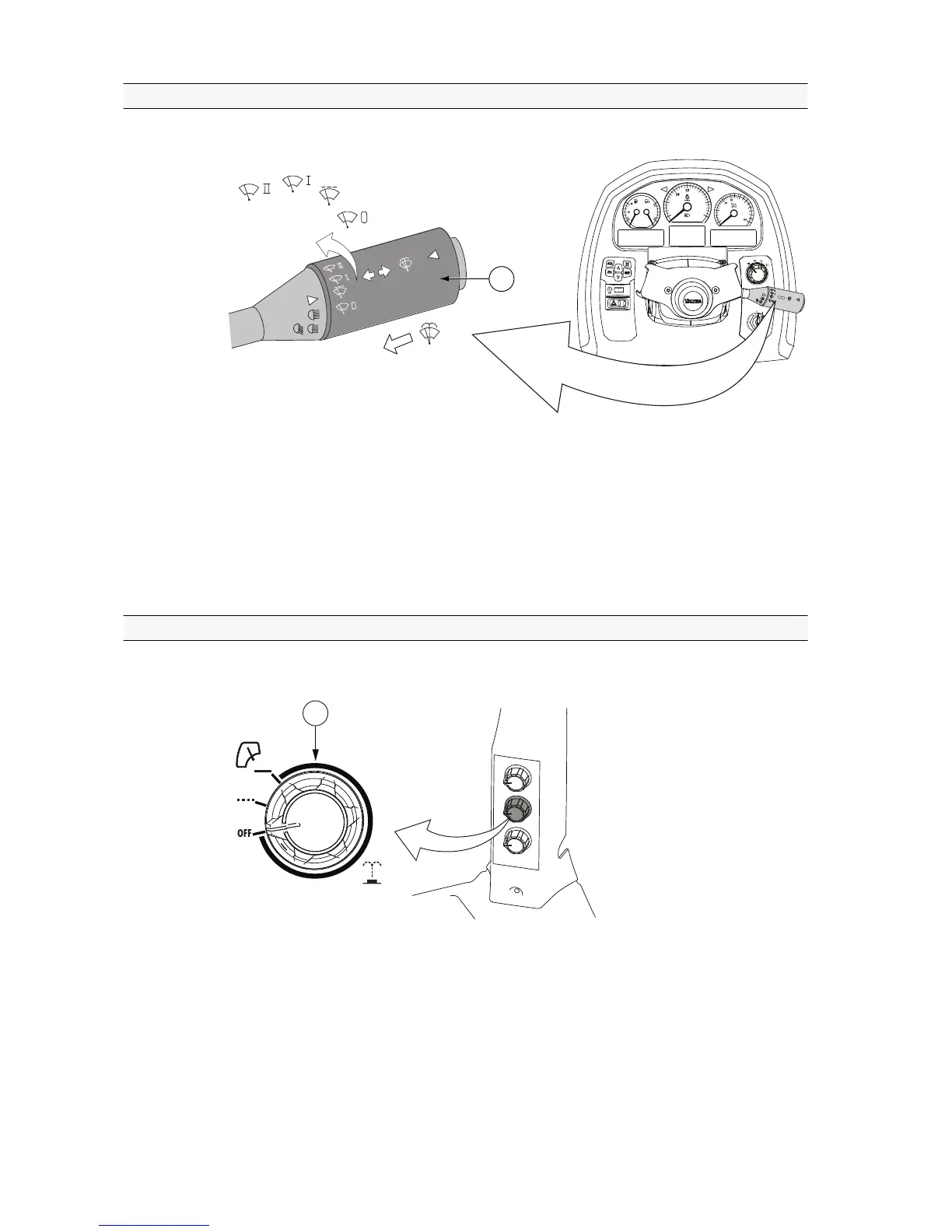

1. Multifunction lever
• To use the windscreen wiper, turn the multifunction lever.
The wiper has an intermittent position and two speeds.
• To use the windscreen washer, push the lever inwards.
3.2.8 Using the side window wiper and washer
The switch for the side window wiper and washer is located on the C-pillar.
1
GUID-DD5ABAC1-205B-4FD2-91F7-5FC599850A31
1. Side window wiper switch
• To use the side window wiper, turn the switch.
The wiper has an intermittent position and one speed.
• To use the washer, press the switch.
3. Operation
- 70 -

Valtra T214 Specifications

General

Transmission	Powershift
Max Speed	50 km/h
Engine Type	6-cylinder diesel
Displacement	7.4 liters
Engine	AGCO Power
Rear Lift Capacity	9500 kg
Lift Capacity	9, 500 kg
Wheelbase	2.995 m
Hydraulic System	Load-sensing
Tire Options	Multiple options available
