Volta Air Technology Owner’s Manual
Van Refrigeration & Freezer Unit
12
CONFIDENTIAL

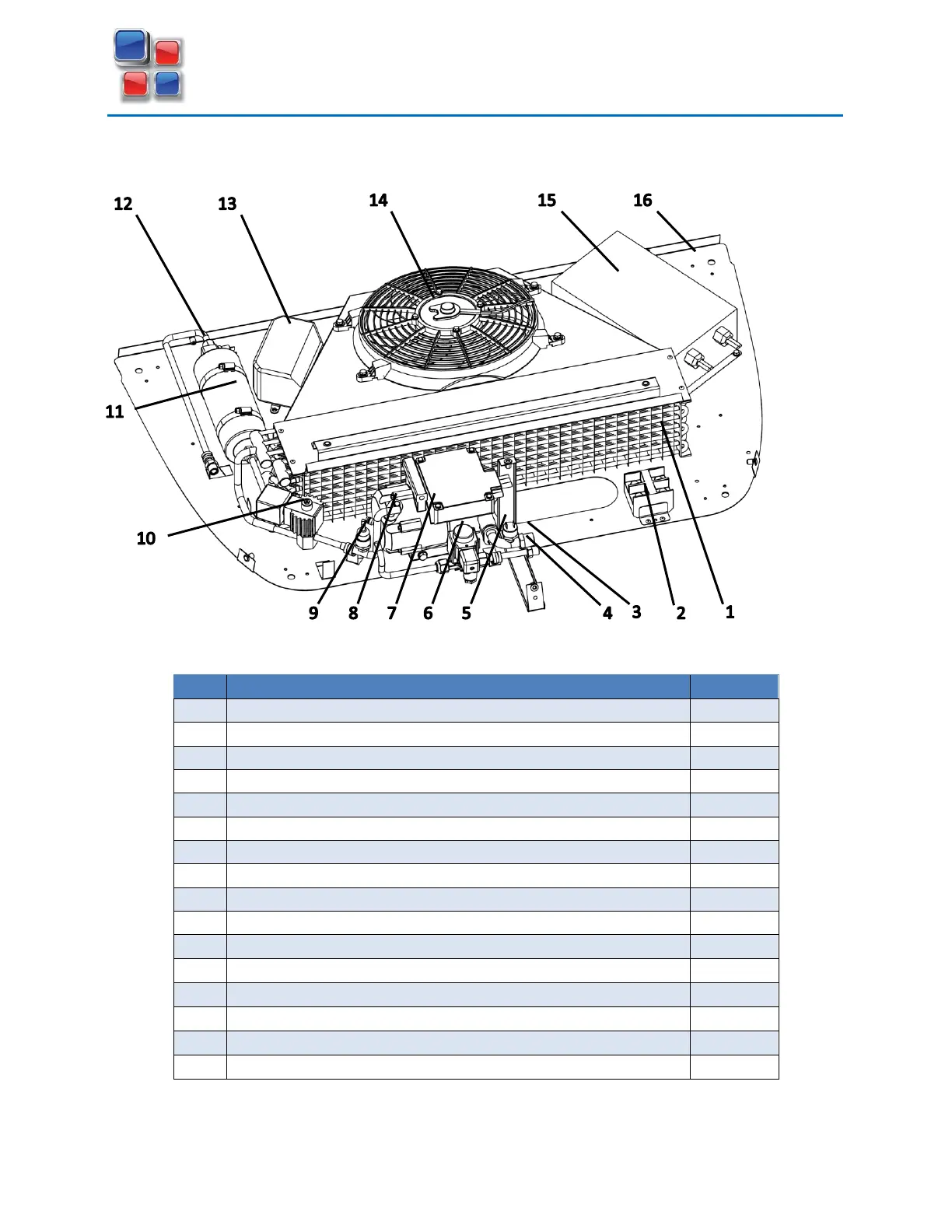

Condenser unit contains the condenser coil, condenser fan, receiver-drier, compressor, energy
stabilizer module, Relay-fuse box, safety pressure switches, and electrical terminal block.
Electrical terminal block
Compressor suction port – SAE 7/8
Hot gas solenoid valve (HGSV) – normally closed
Compressor – DC 12V – 90A
Compressor discharge line
Condenser pressure control valve (CPCV) – normally open
Receiver – drier - filter
Liquid line port – SAE 5/8
Condenser fan – DC 12V – 12A
