Volta Air Technology Owner’s Manual
Van Refrigeration & Freezer Unit
35
CONFIDENTIAL
Drain Installation
NOTICE
Make sure the drain is continuing to run down, at no point should the hose be
above the drain nipples on the evaporator
Drill or cut hole for drain to exit the vehicles refrigerated space OR into a removable
bladder/bucket
Secure drain against wall or support neatly to finish
Tighten all securing clamps
If the hose is deformed the clamps are too tight
NOTICE
Take into consideration how the vehicle will be loaded and unloaded. Limit the
inconvenience of the hose by running the hose tight to the wall

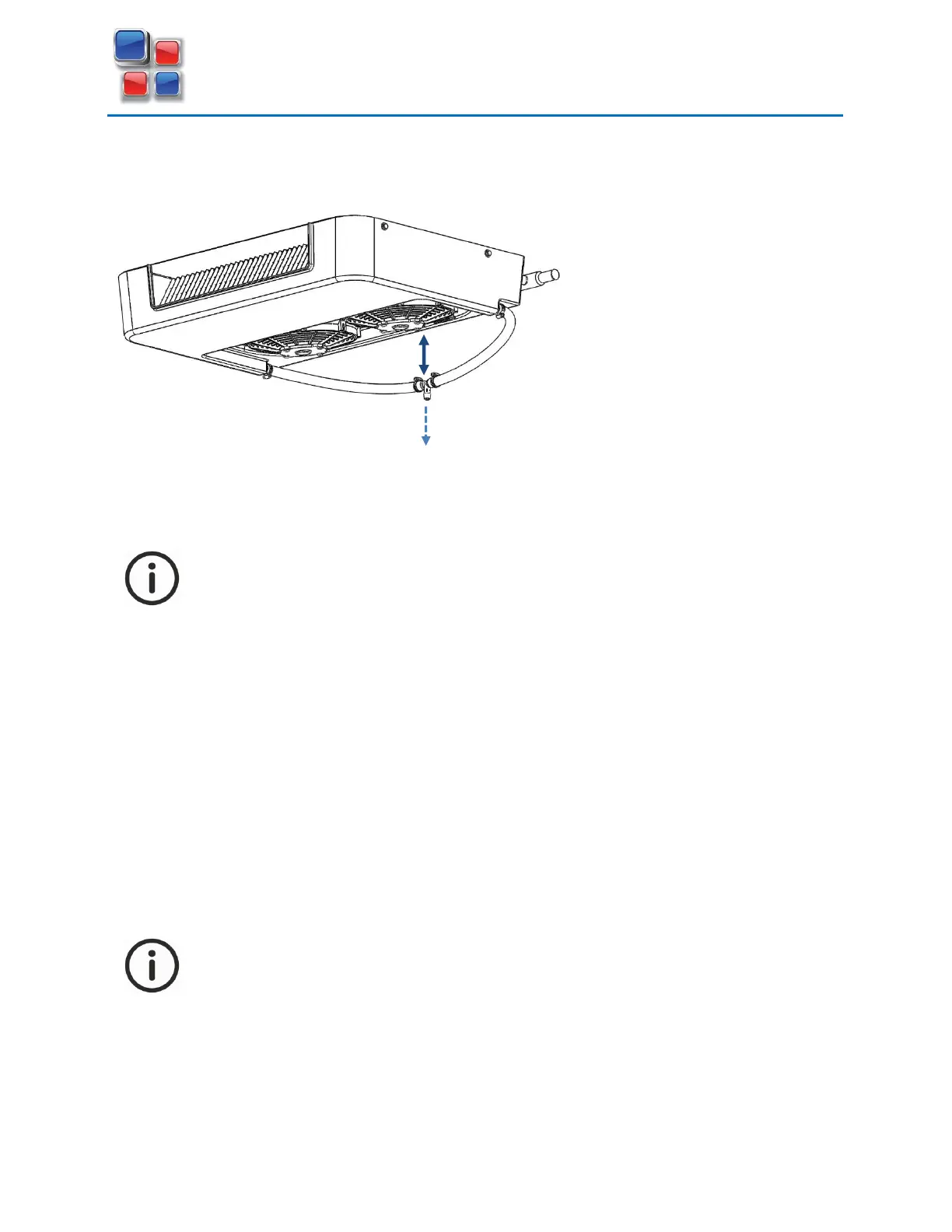

Cut drain hose to desired size
Attach hoses to the two drain nipples
on the evaporator
Merge the drains to a common point
or T-connector
Tighten all connection clamps
attaching the drain together
Mount the T-joint at least 2” lower
than the evaporator
> 2”
Drain out
