Volta Air Technology Owner’s Manual
Van Refrigeration & Freezer Unit
19
CONFIDENTIAL

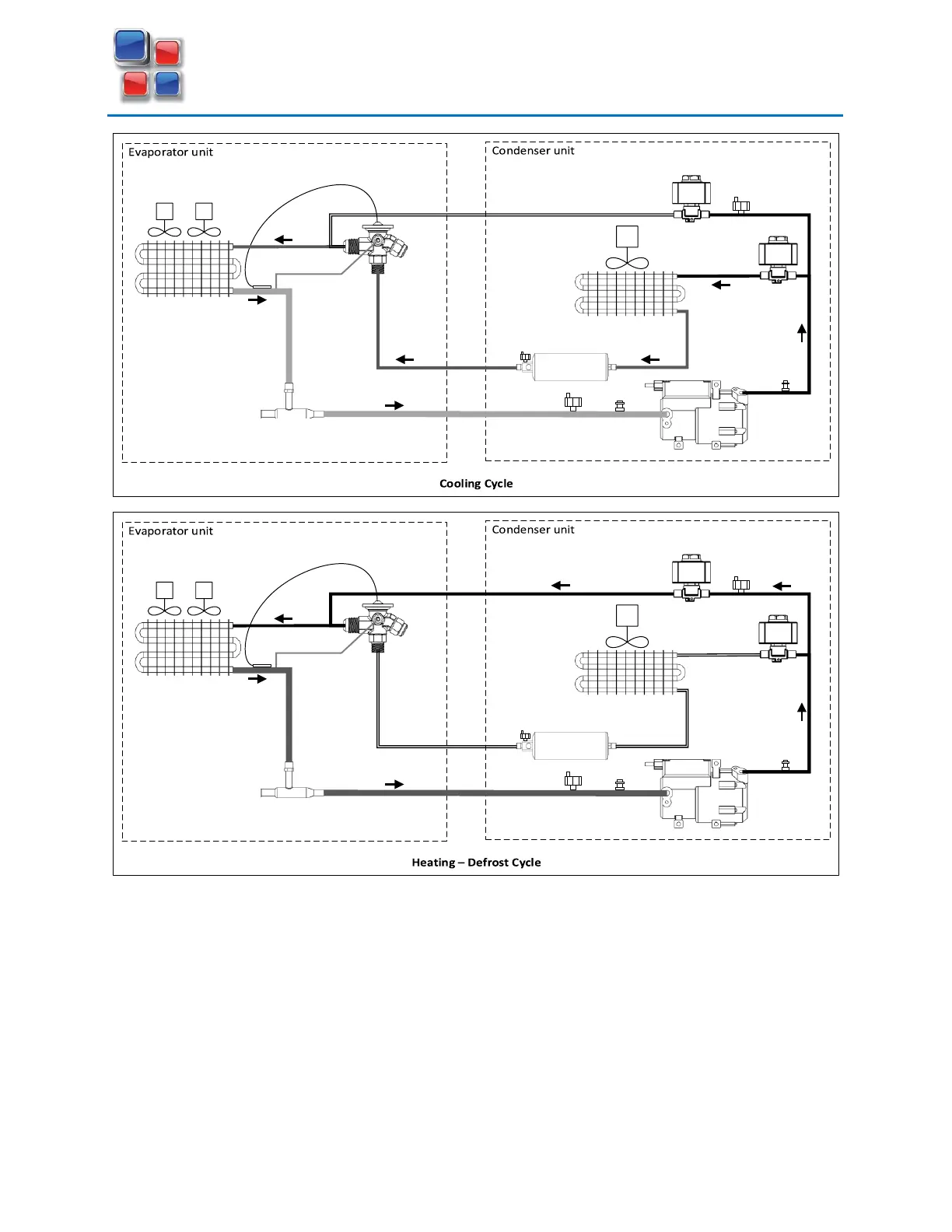

Cond. Pressure
control valve
Condenser
Evaporator
LPS
HPS
Hot gas
solenoid valve
Receiver-Drier
TXV
CPR Valve
Comp.
Suction
charging port
Discharge
charging port
TXV equalizer line
CPCS
Cond. Pressure
control valve
Condenser
Evaporator
LPS
HPS
Hot gas
solenoid valve
Receiver-Drier
TXV
CPR Valve
Comp.
Suction
charging port
Discharge
charging port
TXV equalizer line
CPCS
