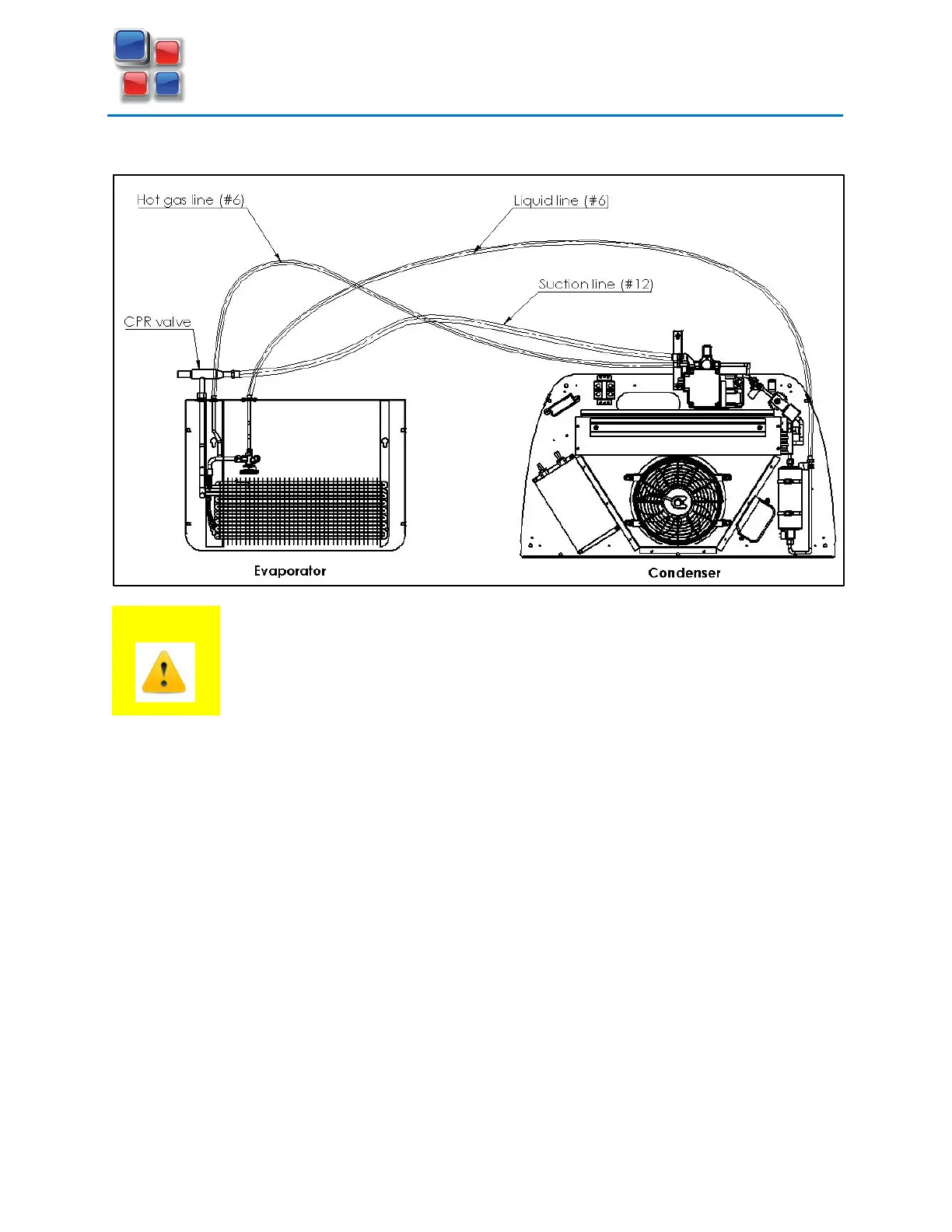

Follow the schematic diagram for connecting the hoses.
CAUTION!
1
If the two high line hoses are attached to the wrong fitting the refrigeration
system will not work and could be damaged (filter drier -> x-valve) the middle
fitting at the evaporator is for the hot-gas defrost function
• Crimp the suction hose (bigger size-#12) to the fitting with the service port, attach it to
compressor and pass it through to inside the van or trailer
• Crimp liquid line to the fitting with the charging port, attach it to the fitting at the filter-
drier and pass through hole
