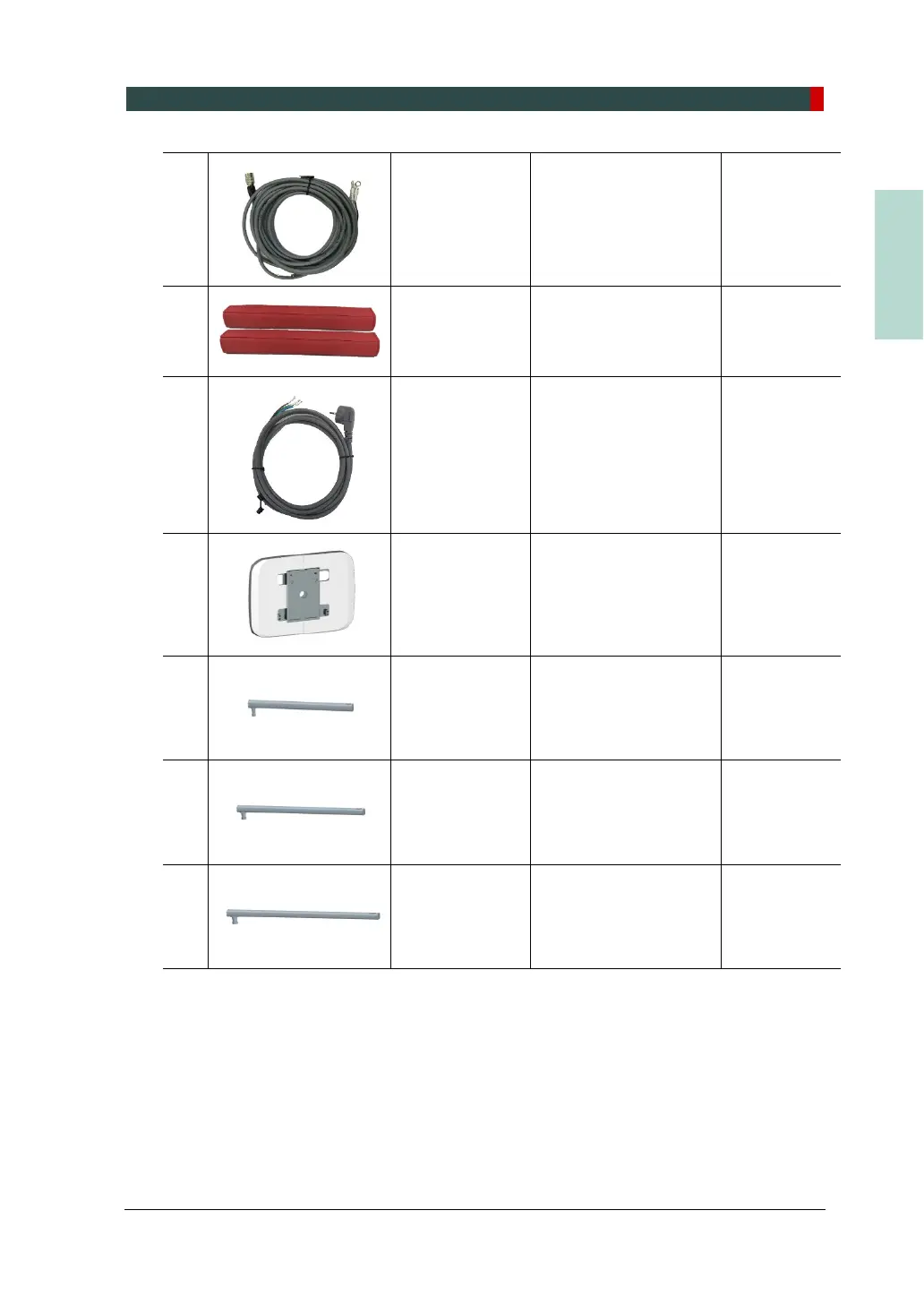

3. System Overview
EzRay Air Wall (VEX-S300W) User Manual 17
ENGLISH
7
Door Interlock
Cable
Used to connect the
Door Interlock Switch to
the Door Interlock
Cable Connector on the
bottom of the
PowerBox Assembly
PVC
8
Scissor Arm
Cover
Used to cover the
Scissor Arm
PVC
9 AC Power Cable
Used to connect the
power (AC 220 V) to
the Power Box
Assembly
PVC
10 Double Stud
Used for fixing the
power box to the wall
(when installing the
power box on the
wooden wall in the
North America regions)
ABS
(Acrylonitrile
butadiene
styrene)
copolymer +
SPCC
11
Horizontal Arm
450 mm
Used as a connection
arm (length: 450 mm)
between the Power Box
Assembly and the
Scissor Arm Assembly
AL6061 +
ABS
(Acrylonitrile
butadiene
styrene)
12
Horizontal Arm
600 mm
Used as a connection
arm (length: 600 mm)
between the Power Box
Assembly and the
Scissor Arm Assembly
AL6061 +
ABS
(Acrylonitrile
butadiene
styrene)
13
Horizontal Arm
900 mm
Used as a connection
arm (length: 900 mm)
between the Power Box
Assembly and the
Scissor Arm Assembly
AL6061 +
ABS
(Acrylonitrile
butadiene
styrene)
