3. System Overview
14 EzRay Air Wall (VEX-S300W) User Manual

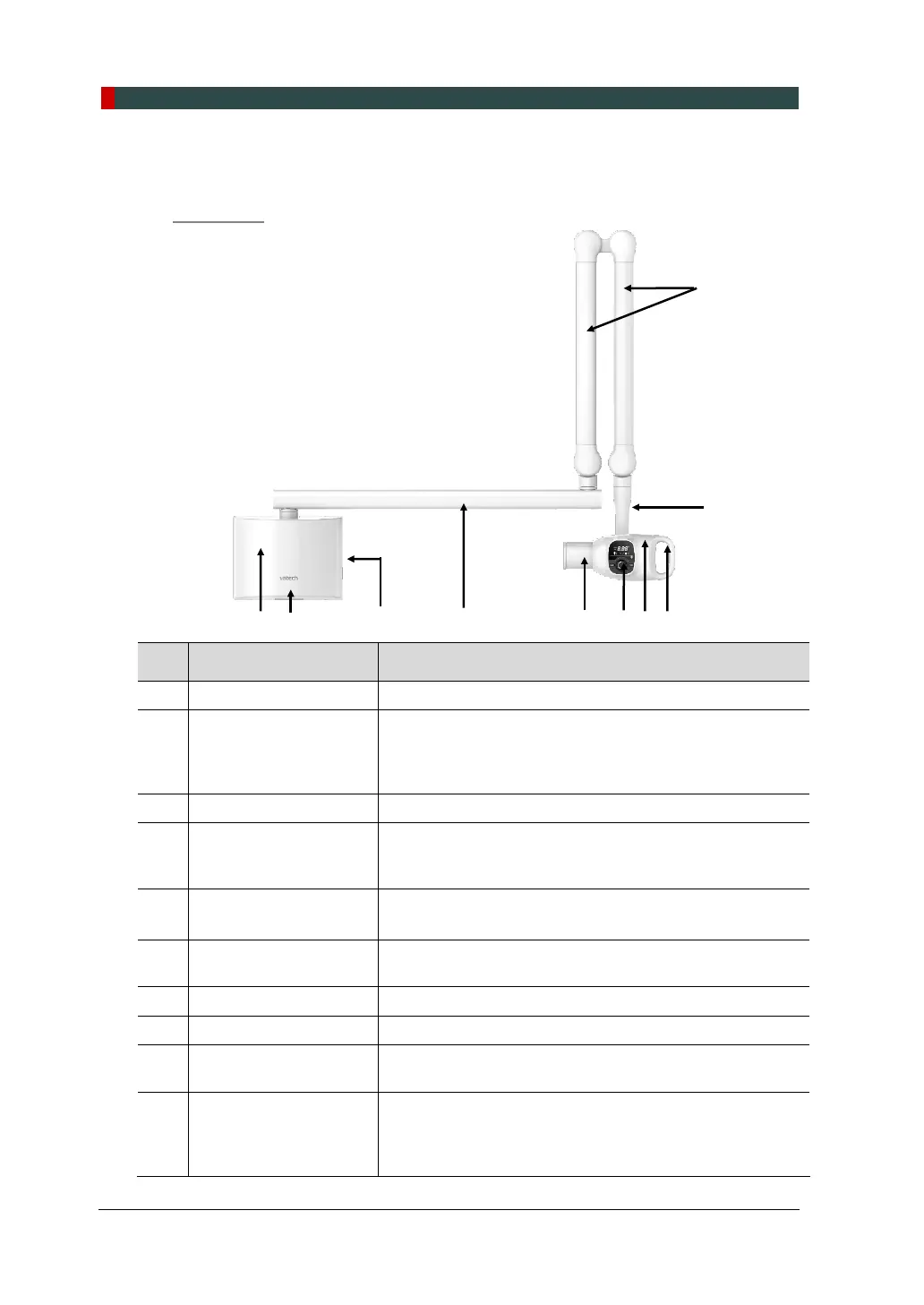

3.6 General View of the Equipment
Main Body
No.
Item Description
1 PowerBox Assembly Controls the electrical power of the system.
2
Remote Exposure
Switch and Power
Cable Connectors
Connect the X-ray Exposure Switch cable and AC power
cable (manufacturing option). Please refer to Section
4.4.1 Remote Exposure Switch and Power Cable
Connections.
3 Main Power Switch Main Power On/Off switch
4 Horizontal Arm
Connection arm between the power box assembly and
the scissor arm assembly. (3 length options: 450 mm, 600
mm, 900 mm)
5
X-ray Beam Limiting
Device
Limits the X-ray exposure area.
Default type: Round Cone + Round Cover (FOV: Ø 6 cm)
6 Control Panel
Display for the X-ray exposure settings and operation
conditions
7 X-ray Generator Includes the X-ray tube and the high-voltage generator.
8 Handle Grip the handle securely when using the system.
9 X-ray Generator Arm
Connection arm between the X-ray generator and the
scissor arm assembly
10 Scissor Arm Assembly
Adjusts the length of the entire arm by folding and
unfolding the scissor arm assembly. Connection arm
assembly between the horizontal arm and the X-ray
generator assembly.
2
10
5
9
6
7
8
3
4 1
