Vatech EzRay Air Wall - Angulations for Tooth Positioning

4. Operation
28 EzRay Air Wall (VEX-S300W) User Manual

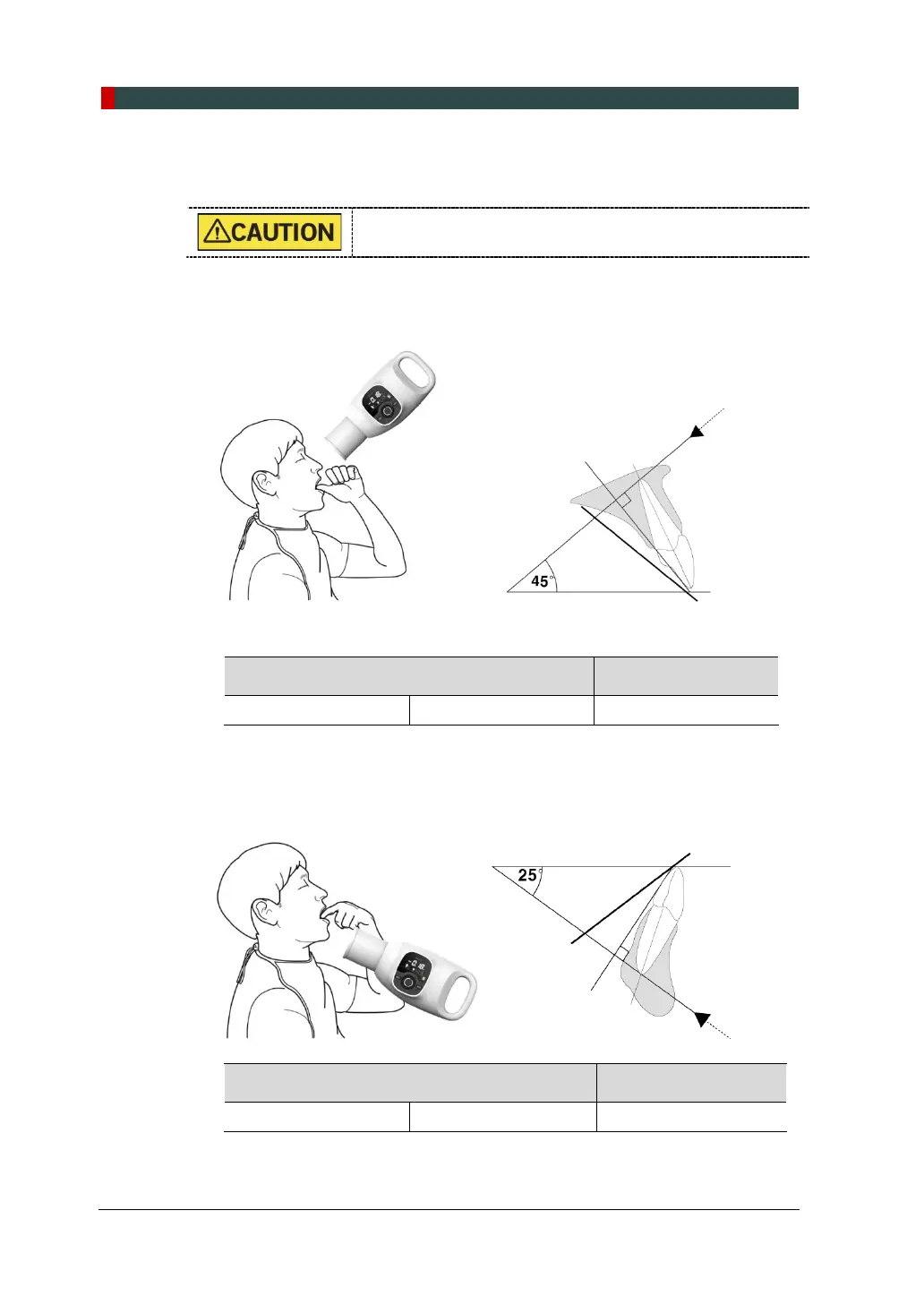

Here are the specific angulations and directions for the tube head to take the best
images of a particular tooth (i.e., Bisected angle technique).
Position the receptor carefully not to damage the soft tissue
of the patient’s intra-oral area.
 Maxillary Incisor
The x-ray beam is directed downward at 45°.
Teeth Angle of inclination
Incisor Maxilla +45˚
 Mandibular Incisor
The x-ray beam is directed upward at 25°.
Teeth Angle of inclination
Incisor Mandible -25˚
