9. Acquiring CBCT Images
Green Smart User Manual 115
Laser Beam Aligning
Be careful not to shine the Laser Beam directly into the person's eyes.
Doing so may result in vision loss.
If the Laser Beam is not correctly positioned, there may be distortion,
causing the image to be enlarged or reduced, or ghost shadows may
occur and lower the image quality. Be sure to align Laser Beam
properly.
This is a sample illustration for reference only. Actual FOV may vary
from the image as shown above.

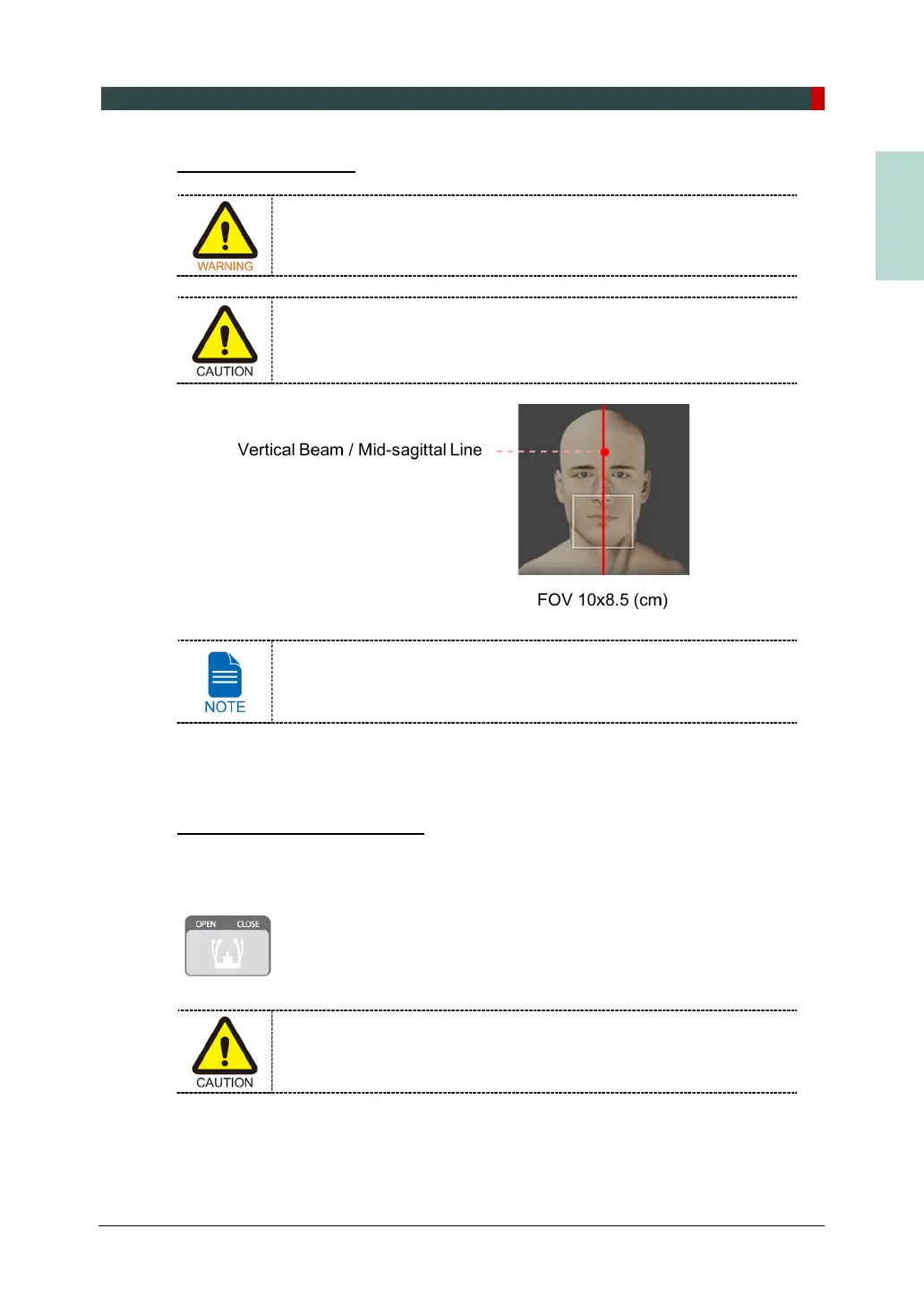

1. Align the Vertical Beam with the center of the face (Mid-sagittal Line). (It’s to prevent
horizontal expansion of the image.)
Finishing Patient Positioning
1. After checking the positions of the patient and the Laser Beam, click the Temple
Supports OPEN/CLOSE button on the control panel to prevent the patient's head from
moving.
Make sure that the Temple Supports are in CLOSE position before
clicking the READY button.
2. Click the READY button. The X-ray exposure has not started yet.
3. Now go to 9.4 X-ray Exposure to start the exposure.
