8. Acquiring CEPH Images (Optional)
Green Smart User Manual 87

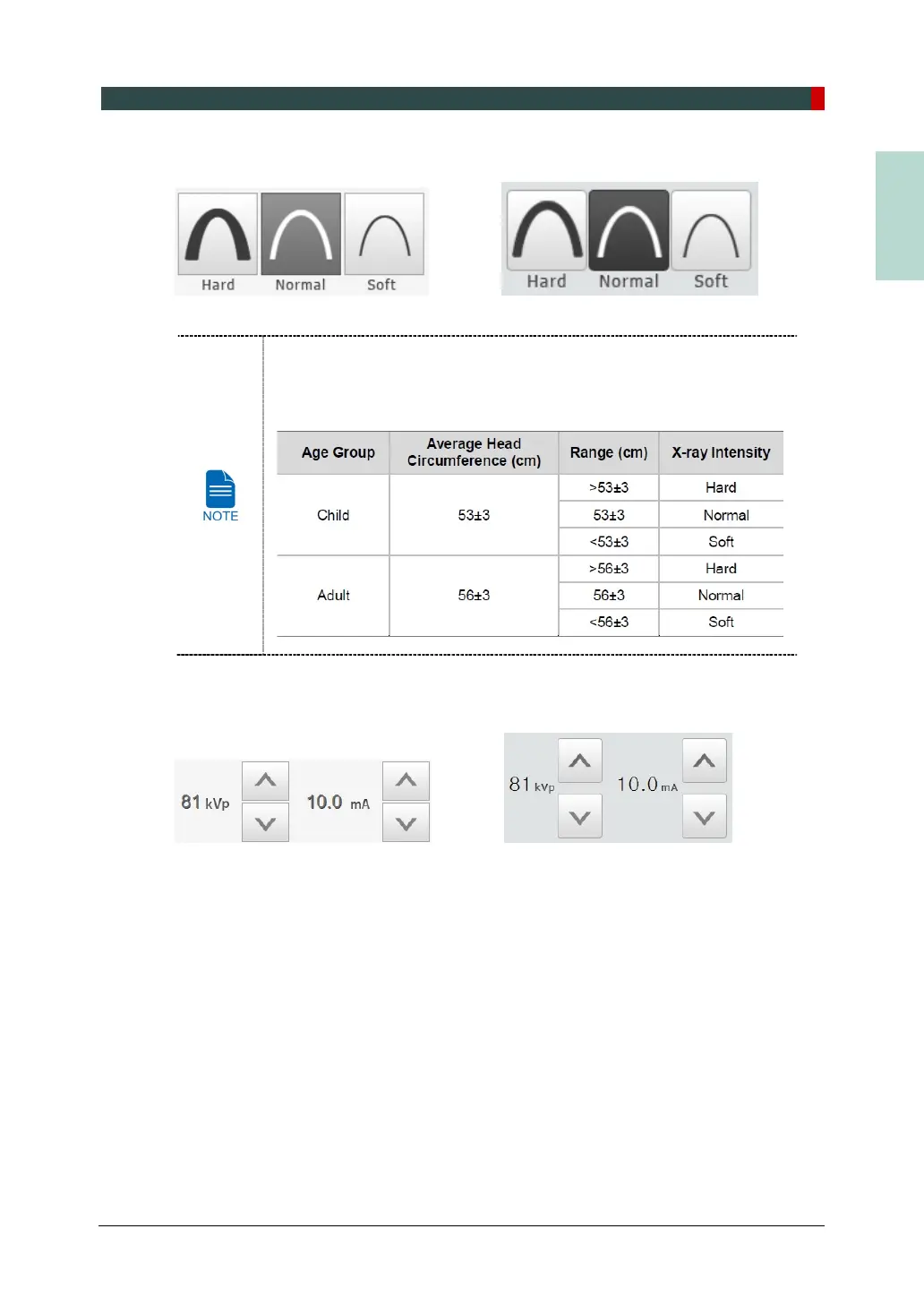

5. Select X-ray intensity.
<Console Software> <Touch Screen>
Depending on the circumference of the patient’s head, X-ray intensity
may be classified as Hard, Normal, or Soft :
Soft ≤ Normal ≤ Hard
6. The values of tube voltage and current are configured automatically according to the
patient's gender/age group and X-ray intensity. Click the UP/DOWN arrow to adjust kVp
and mA. The dose is adjustable by ±1 kVp and ±1 mA respectively.
<Console Software> <Touch Screen>
