PaX-Duo3D
6.1.
Inst

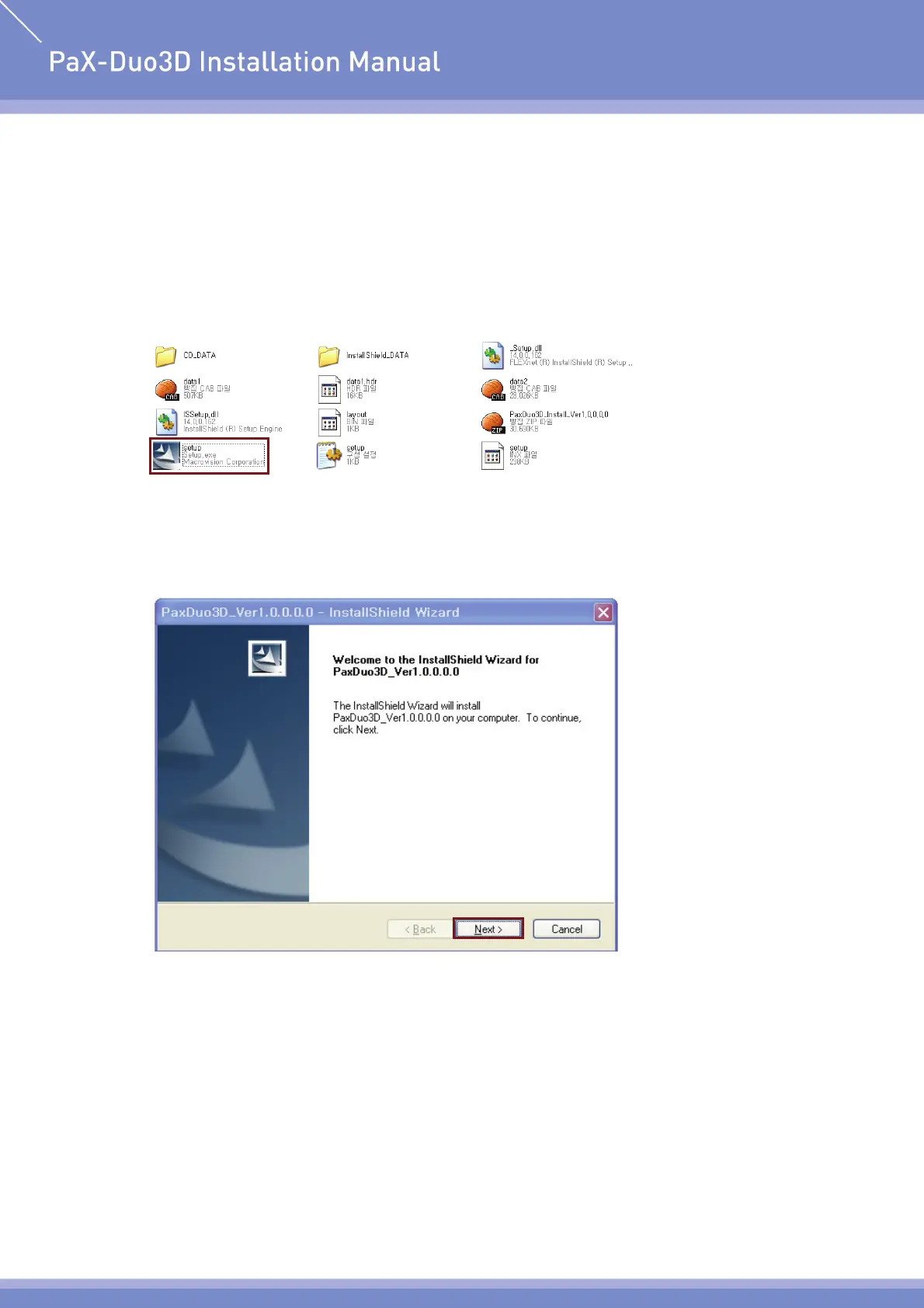

alling Imaging Software and Frame grabber Driver
T
o install the imaging software an
d frame grabber driver for the first time, go the drive wh
ere the following
files are in.
①
Please focus on the
setup.exe
an
d double-click it
<For the first time installation>
②
The following screen will a
ppear and click
Next
.
45
47
Table of Contents
default chapter
3
Table of Contents
3
Chapter 1. Introduction
8
Product Overview
8
Product Features
8
Product Components
9
Marks & Graphic Symbols
10
Chapter 2. Components and Functions
12
Hardware Components and Functions
12
Dimension of Pax-Duo3D
13
Chapter 3. Preparing for Installation
16
Checking Packages
16
Checking Carton No. 1
17
Checking Carton No. 2
18
Checking the Packing List of the Accessory Box
19
Replacement Parts and Positioning Accessories
21
Tools Require
22
Unpacking Carton
23
Chapter 4. Installing the Unit
26
Assembling the Column and the Base Plate
27
Balancing the System after Finishing Unit Assembly
35
Assembling Covers
36
Connecting Cables
37
Chapter 5. Configuring Computer
40
PC System Requirements
40
Installing LAN Card
41
Connecting the LAN Cable
41
Connect the Frame Grabber Cable and the USB Cable
42
Installing 2 USB-Type License Keys
43
Chapter 6. Installing Software
45
Installing Imaging Software and Frame Grabber Driver
46
HASP Device Driver
56
Directx Driver
58
Serial Card Driver Setting
60
Chapter 7. Using the Hyperterminal
64
Chapter 8. Technical Specification
68
Pax-Duo3D Specifications
68
Panorama X-Ray Detector
68
Image Magnification
69
Anatomic Programs
69
User Interface
69
X-Ray Generator
69
Collimator
69
X-Ray Tube
70
