68
PaX-Duo3D

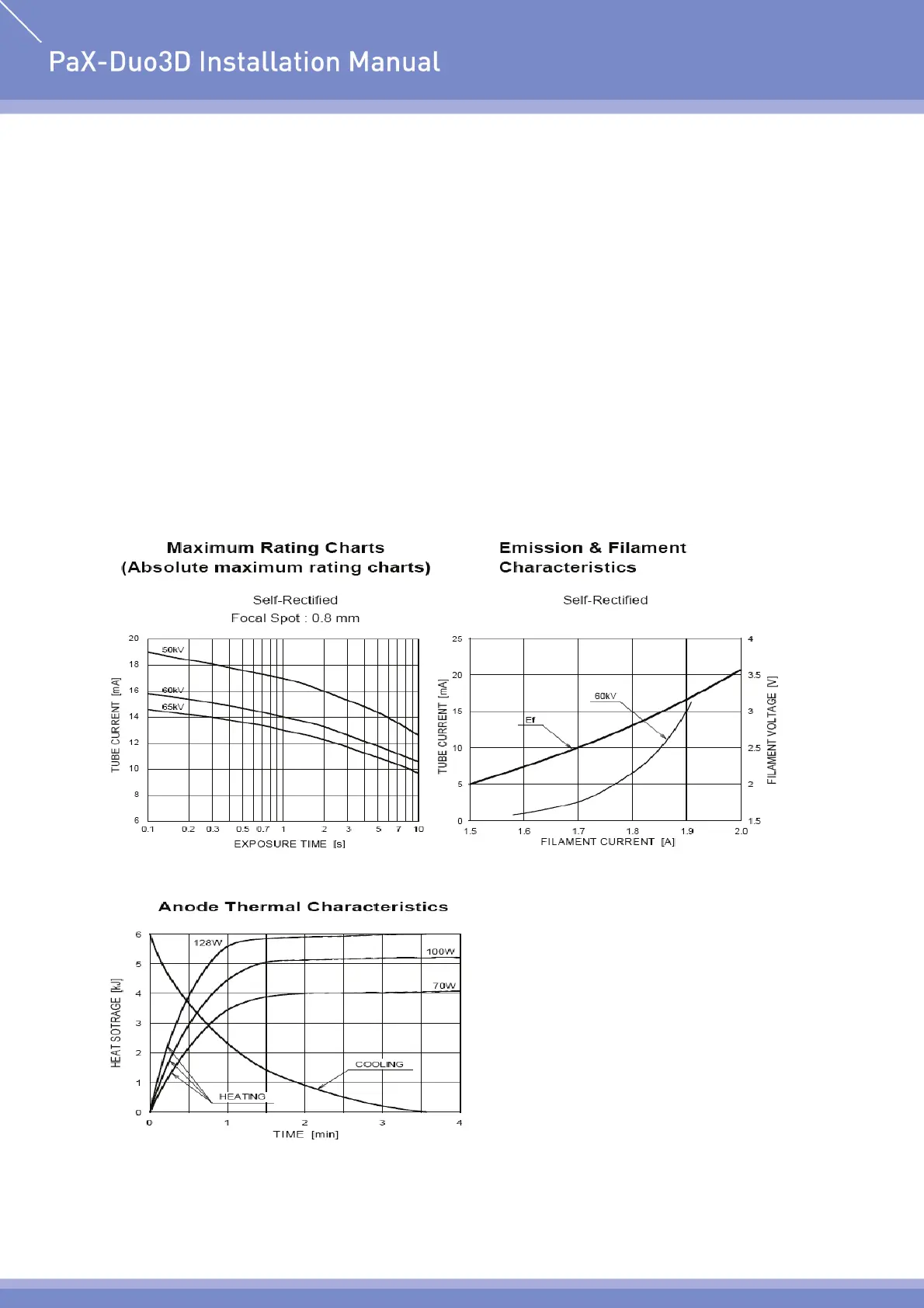

8.8. X-ray Tube
z Tube voltage: 50 ~ 100 kV
z Tube current: 1 ~ 22 mA
z Focal spot: 0.5 mm
z Inherent filtration: 0.8 mm Al
z Added filtration: 2.0 mm Al
z Total filtration: 2.8 mm Al
z Filament characteristics: 3.5~4.9V 3.5A(max. filament current)
z Anode angle:
z Anode Hu: 28000J
z Anode cooling rate: 265W
z Input energy at 1 sec: 1750W
z Tube target material: Tungsten
