Installation
manual
27
10.

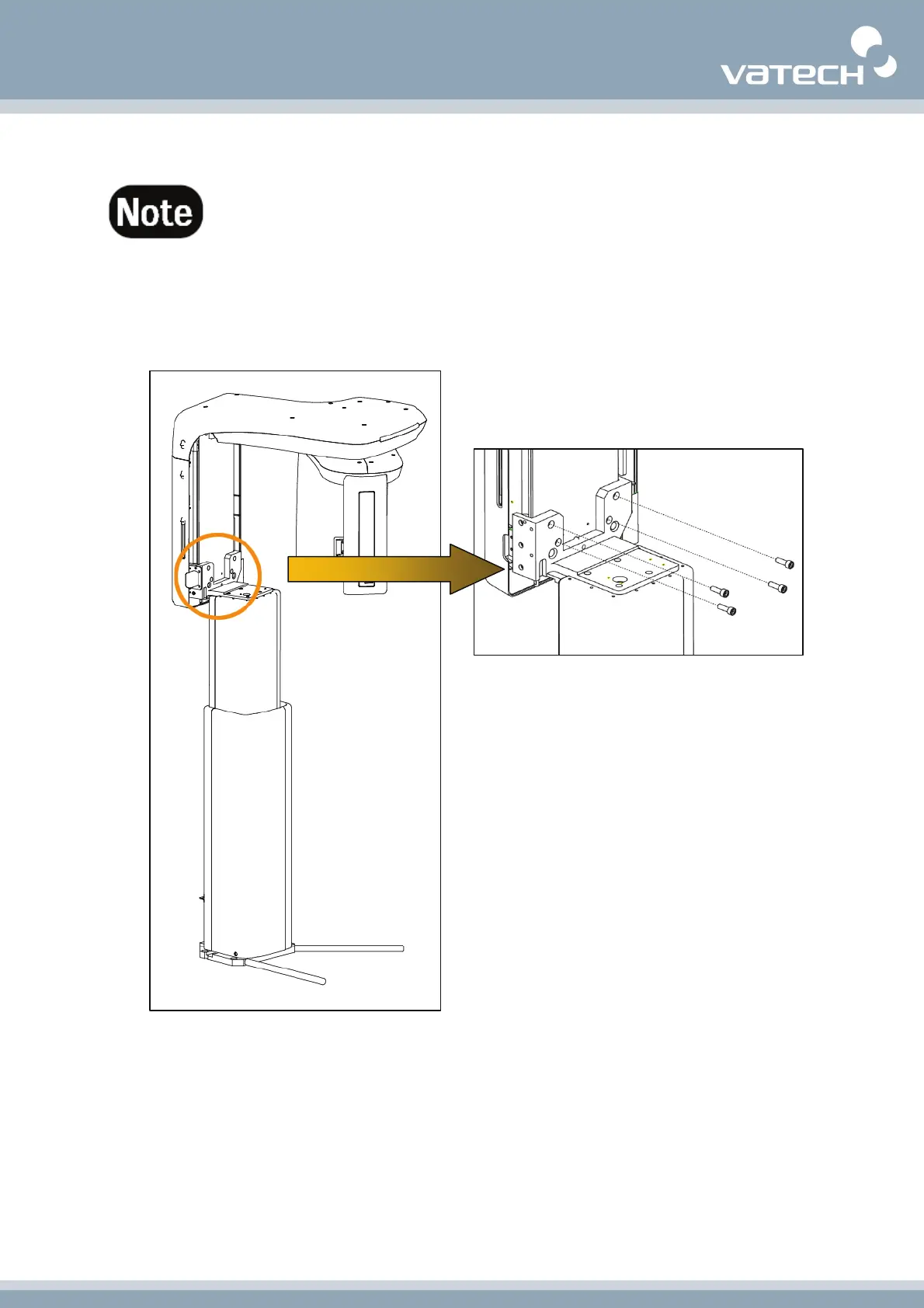

Please fix the column using M8*25 wrench bolt.(Acc. No.:25)
Works becom
e easier if the front p
art of rotating unit is slightly lif
ted up while
screwing
.
11.
On completio
n
of this, please move up, usin
g the Up/Down
switch, by about 15cm and remov
e the
brace rod.
28
30
