3.4. Installing exposure switch holder

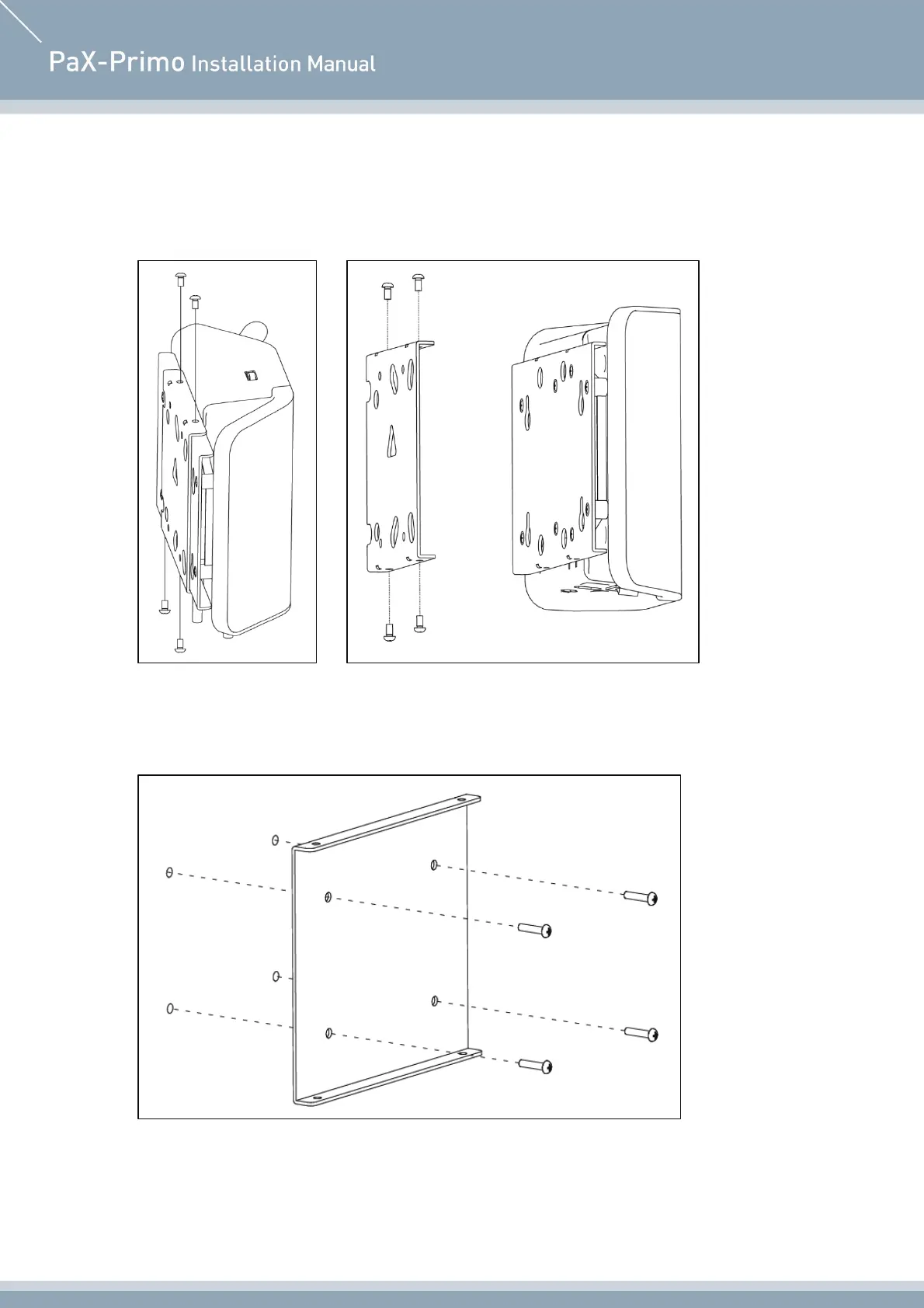

1. First unscrew 4 M3*6 truss bolts and separate the bracket from the exposure switch holder.
(Accessory No.09)
2. Please first install truss bolts screw anchors on the wall where the touch pad panel is to be installed.
Mount the wall mount bracket (Acc. No.27) and fix it using M4*16(Accessory No.35x4).
