PaX-Primo
42
5.

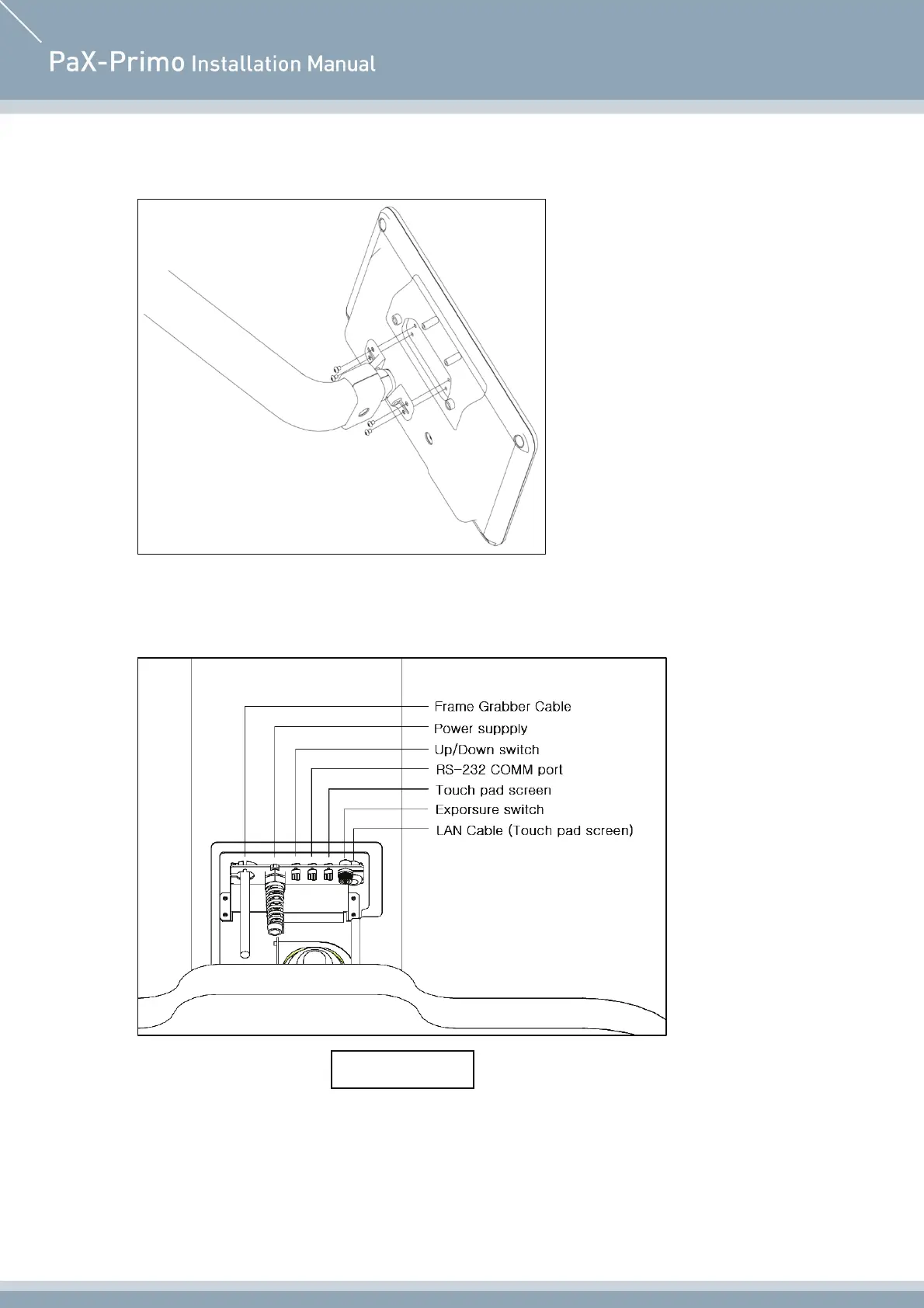

Please unscrew 4 M4*8 trusses
bolt (A
ccessory No.14) and detach
the touch pad scree
n from the
holding arm.
6.
Please conn
ect both LAN cable (Acc. No.21)
and RS-232(Acc. No.33) for touch
pad screen onto
connector p
anel of the underside of rear of unit.
Connecto
r panel
43
45
