Operating & Mounting instructions – 8 074 143.03/03 – Page 81

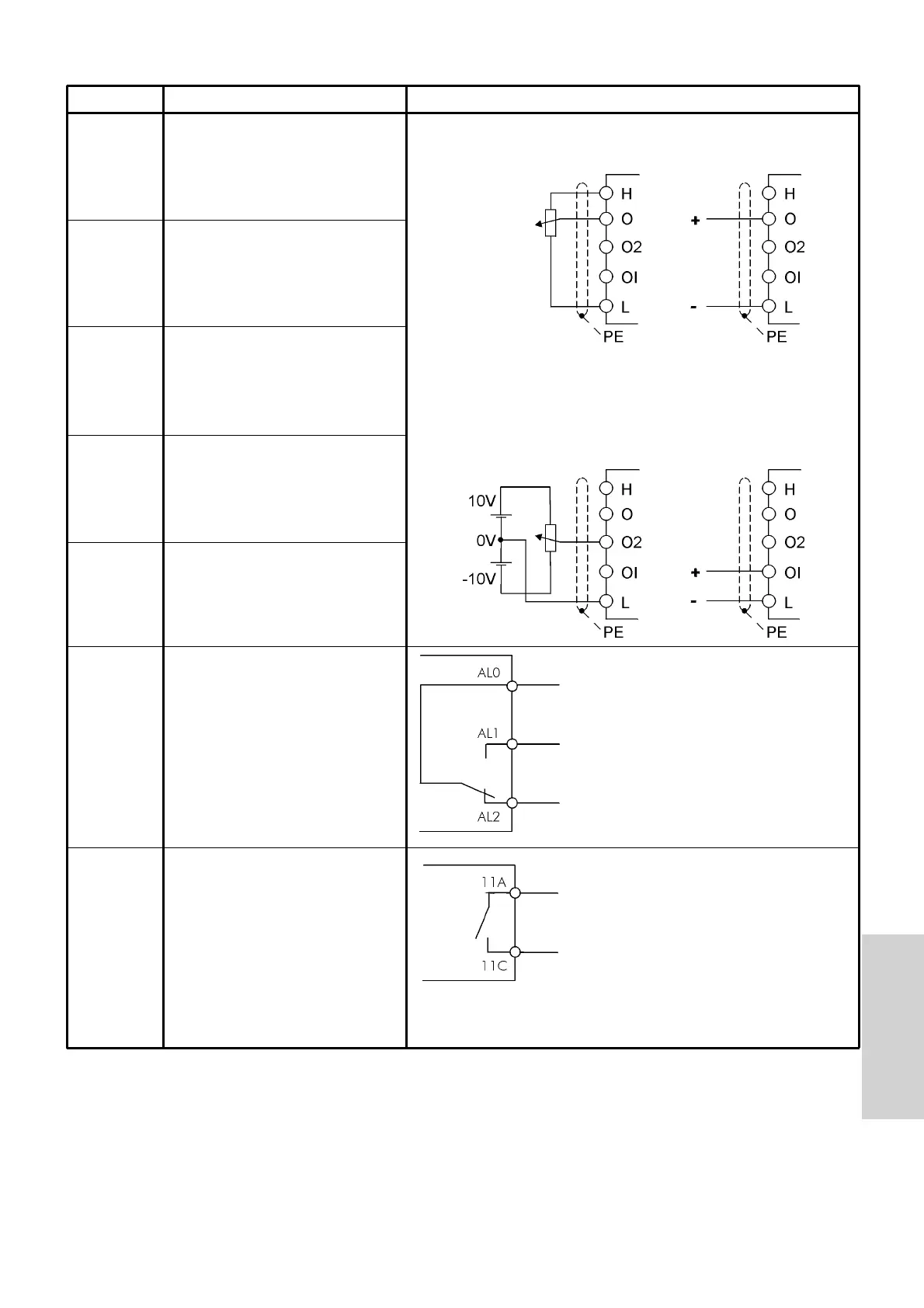

Connection
Terminal Function Description
H 10V reference voltage for
definition of frequency
reference value
max. 20 mA
O Analog voltage input
frequency ref. value 0...10V
or PID controller ref. value/
act. value
O2 Analog voltage input
frequency ref. value
-10...+10V
OI Analog current input
frequency ref. value
4...20mA or PID controller
ref. value / actual value
L 0V reference potential
AL0 Relay output
AL1
AL2
11A Relay output
11C
ohmic load: 250V AC; 5A 30V DC, 5A
inductive load: 250V AC; 1A 30V DC; 1A
Potentiometer
1...2 kOhm
0...10 V
Voltage signal
Potentiometer
1...2 kOhm
4...20 mA
Current signal
250V AC; 2,5A
30V DC; 3,0A
Minimum:
100V AC; 10mA
5V DC; 100mA
Minimum:
1V DC, 1mA
