Operating & Mounting instructions – 8 074 143.03/03 – Page 82

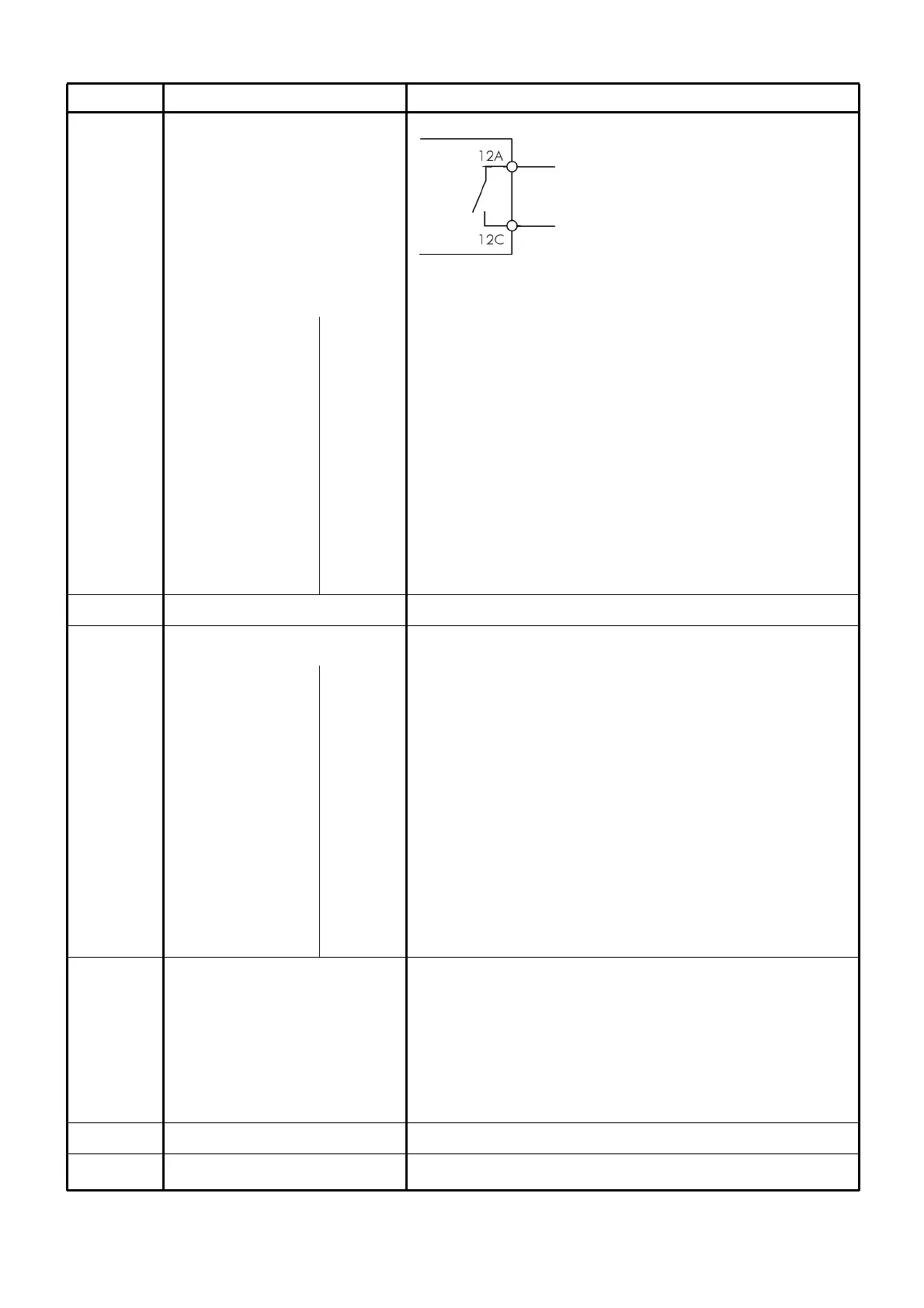

Terminal Function Description
12A Relay output
12C
ohmic load: 250V AC; 5A 30V DC, 5A
inductive load: 250V AC; 1A 30V DC; 1A
00 RUN
Operation
01 FA1
“Frequency value arrival” - signal
02 FA2
“Frequency exceeded” - signal (C042, C043)
03 OL
Overload message
04 OD
PID deviation too high
05 AL
Error message
06 FA3
“Frequency arrival” - signal (C042, C043)
08 IP
Mains failure
09 UV
Undervoltage
11 RNT
Operating hours motor exceeded (b034)
12 ONT
Operating hours inverter exceeded (b034)
13 THM
Temperature alarm (C061)
AM 0...10V analog output Analog output 0...10V; max. load 2mA
AMI 4...20mA analog output Analog output 4...20mA; max. ohmic resistance250 Ω
00
analog display of frequency
10V (20mA) = max. frequency A004, A204
01
analog display of current
10V (20mA) = 200% of nominal inverter current
03
digital display of frequency (only C027)
04
analog display of output voltage
10V (20mA) = max. motor voltage A082
05
analog display of power display
10V (20mA) = 200% of nominal inverter power
06
analog display of thermal load
10V (20mA) = 100% consumption
07
analog display of LAD frequency
10V (20mA) = max. frequency A004, A204
FM PWM output The actual frequency value is available optionally as an
imulse signal. (In default setting, the actual frequency
value is available as an analog signal.)
Impulse ssignal:
Frequency = output frequency x factor of multiplied
frequency display (parameter b086, factory default
= 1), max. frequency 3,6kHz.
TH Thermistor input Input for connection of a motor PTC resistor
CM1 Elektronic ground 0V potential for analog outputs and thermistor input
Minimum:
1V DC, 1mA
