9
.
Installing Soft
ware
11
4
vatech
A9
(Model:PHT
-
30CS
S
)
Installation Manual

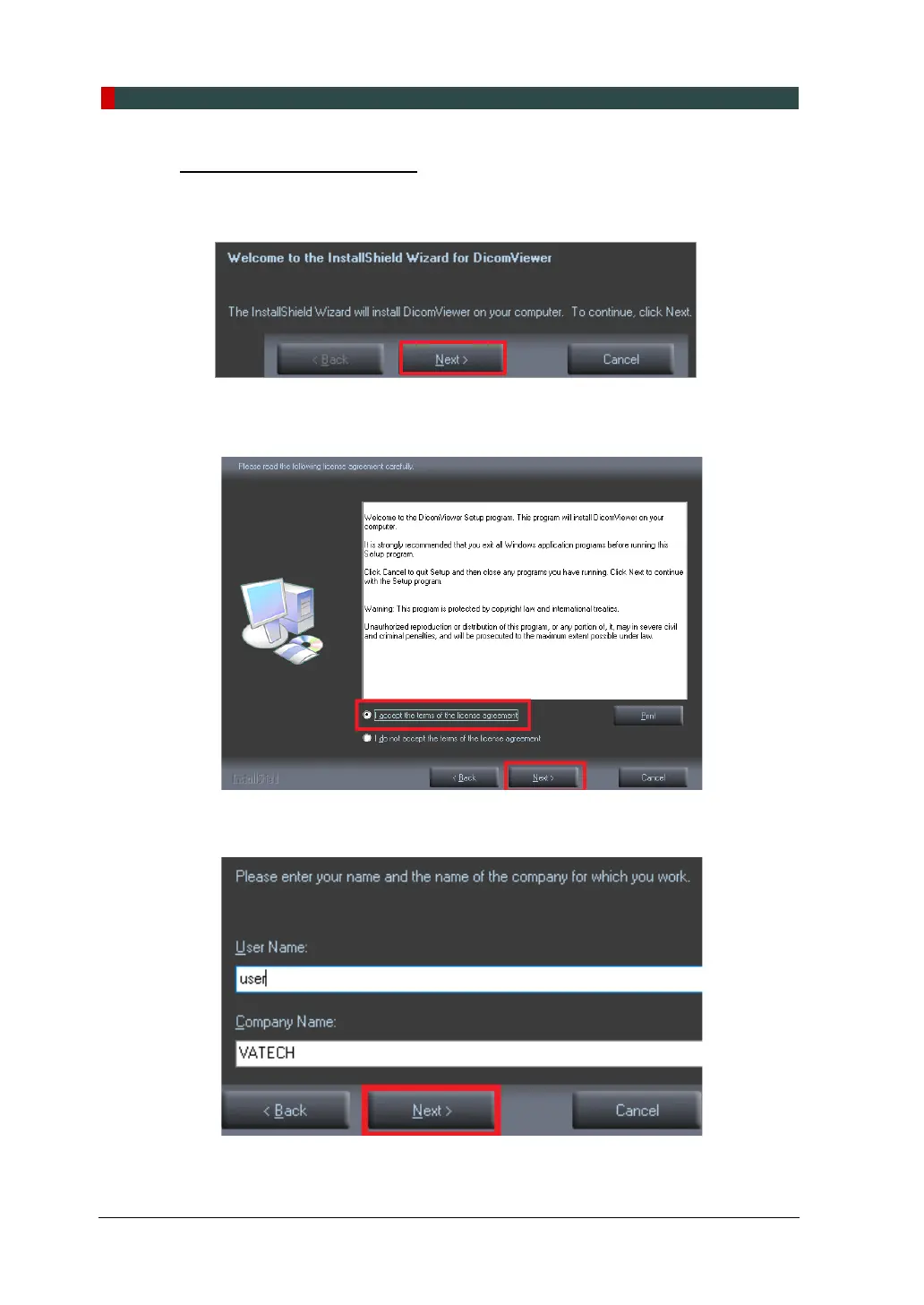

Installing the DICOM View
er
1.
After completin
g basic settin
g
s
,
the
DICO
M
V
iewer installation
will b
e
started
.
Click
Next
in th
e Welcome window
.
2.
Select “
I
accept
the terms of t
he license agree
ment
” and click
Next
.
3.
Enter the
User Name
and c
linic and click
N
ext.
123
125
Table of Contents
Important Notes
6
Table of Contents
7
Table of Contents
8
Introduction
11
Manufacturer's Liability
11
Customer's Responsibility
11
Conventions in this Manual
12
Marks and Symbols
17
Standards and Regulations
19
Choosing an Installation Site
21
Room Requirements
21
Specifications for Electrical Installation
25
Electrical Requirement
25
Environmental Specifications
27
Exposure Switch Installation Options
28
Installation Versions
30
Installing the Warning Lamp and Door Interlock Switch
34
Installing the Emergency Stop Switch
34
Before Installing the System
35
Required Tools
35
Checking the Shockwatch and Tiltwatch
37
Unpacking Boxes
38
Checking the Parts
44
Installing the Equipment: Base Stand (Optional)
52
Assembling the Base and Main Units
52
Installing the CEPH Unit (Optional)
57
Installing the Wall and Column Brackets
60
Fixing the Base (Optional)
66
Connecting the Cables to the Equipment
70
Removing the Transportation Safety Bolts
72
Leveling the Equipment
74
Tightening the Bolts
77
Completing Miscellaneous Works
88
Assembling Various Covers
88
Assembling the Chinrest and Bite
90
Installing the Switch Holders
91
Installing the Real Miscellaneous Works
93
Setting up PC
96
Direct Connection Diagram
96
The Recommended PC Requirements
97
Connecting the Cables to PC
102
Setting up G-Ethernet Grabber
104
Setting up Pc's Environment Variables
110
Before Beginning
110
Turning off the Firewall
111
Setting up the Power Management Options
112
Turning off the User Account Control
114
Setting Folder Exclusions with Anti-Virus Software
115
Installing Software
116
Before Beginning
116
Software Installation Flow
117
Installing Image Viewer Program
117
Installing the Installshield
118
Setting up the User-Specific Information
129
10. Technical Specifications
142
Mechanical Specifications
142
Drawing Dimensions
143
Electrical Specifications
145
Environmental Specifications
146
Vatech A9 (Model: PHT-30CSS) Installation Manual
149
Appendix
149
Installing the Warning Lamp and Door Interlock Switch
149
Installing the Emergency Stop Switch
152
Connecting the 3 Rd Party Exposure Switch (Optional)
153
Checking PC BIOS Settings
154
Installation Checklist
155
