A-4 vatech A9 (Model: PHT-30CSS) Installation Manual

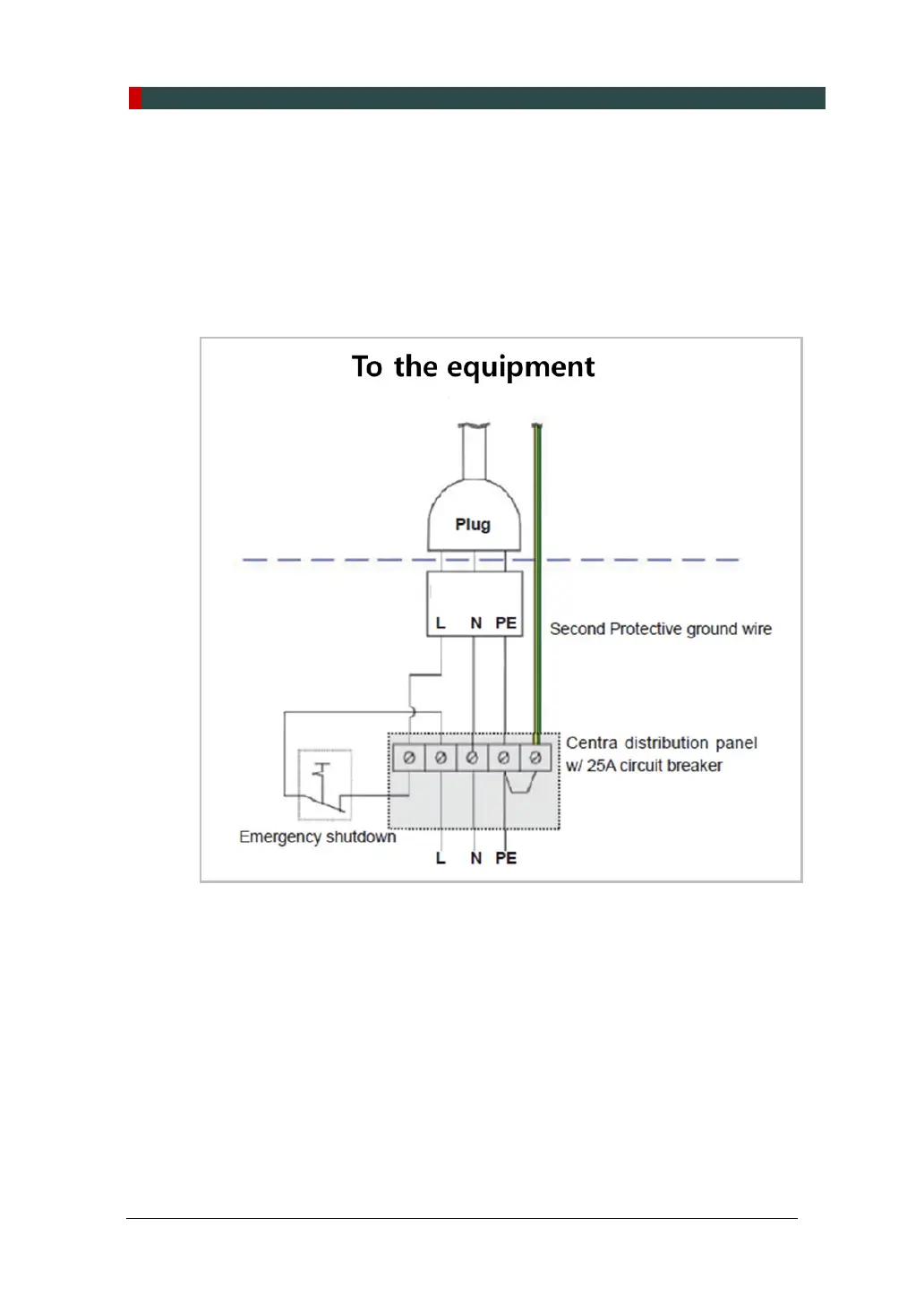

B. Installing the Emergency Stop Switch
 Install the Emergency Stop Switch on the power cable line.
 Install this switch so that it is easy to reach in an emergency but cannot
be pushed by mistake.
 The switch shall be a type of mistake-proof.
 The switch is not supplied.
 The switch shall be installed at the height of 1.2 to 1.5 meters (47 to 60”).
1. The cable sizes: N, L, and PE≥ 12 AWG (3 x 4 mm
2
).
2. The cable to Emergency Stop Switch shall be the same size
as the power cable itself.
3. Install the socket connector terminal for the 2nd protective ground wire.

Vatech PHT-30CSS Specifications

General

Brand	Vatech
Model	PHT-30CSS
Category	Medical Equipment
Language	English
