4. Installing the Equipment: Base Stand (Optional)
vatech A9 (Model: PHT-30CSS) Installation Manual 53

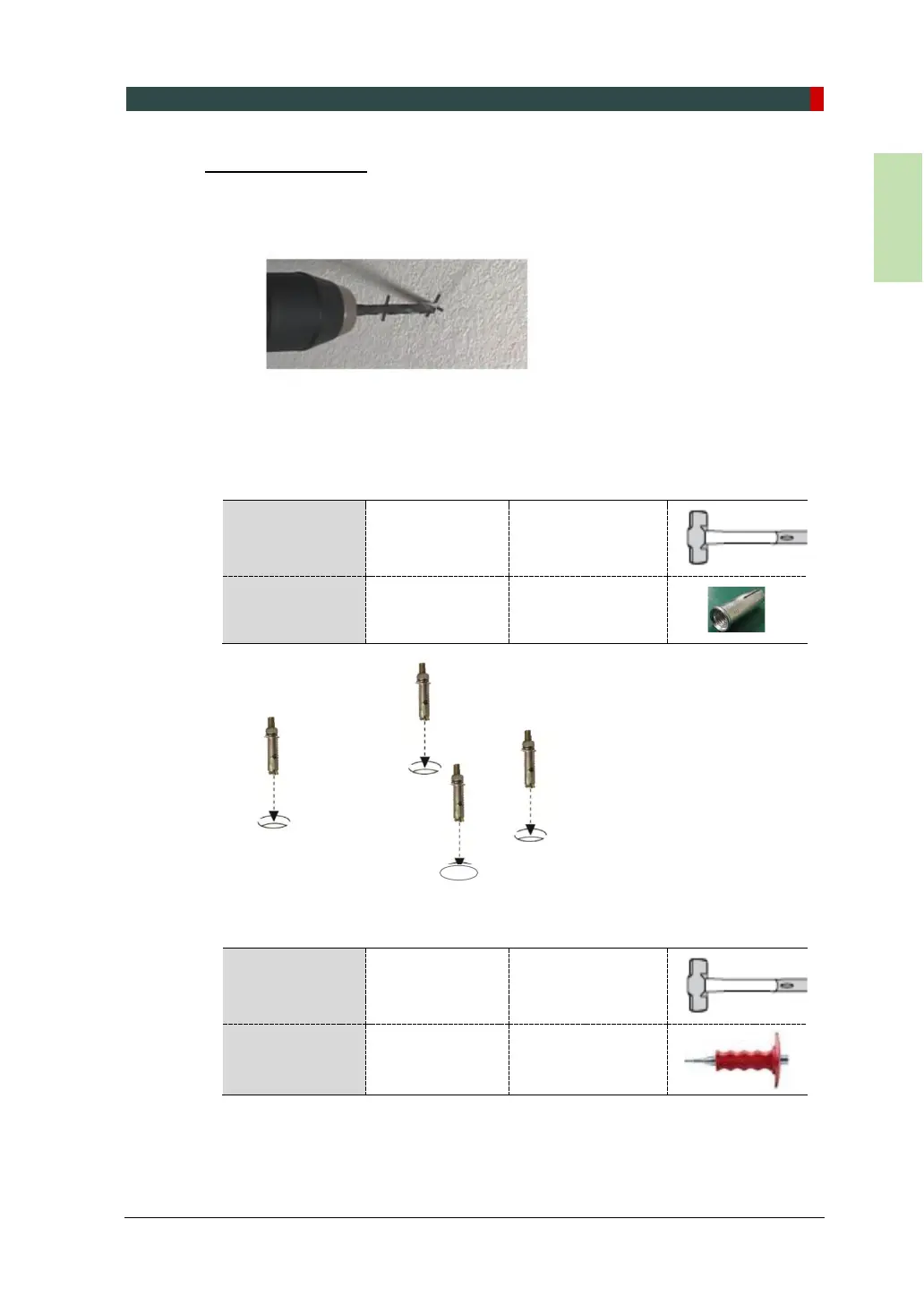

Drilling on the Wall
1. Drill the wall holes of size 10.5 mm x 30 mm (depth) using the concrete hammer
drill.
2. Remove the debris and clean the holes using the dust pump.
3. Using the hammer, insert a Ficher strong anchor into the hole.
Required Tool Hammer N/A
Parts and
Accessory
Flat Anchor Bolt
M8 x 30
(Part. No. 34) - 4
pcs
4. Using the hammer, insert an EHS tool into the inner bolt.
Required Tool Hammer N/A
Parts and
Accessory
EHS tool
EAW H
8x30
To Next Page
