Digital Audio Input of the amplifier with the Optical Digital Audio Cable.

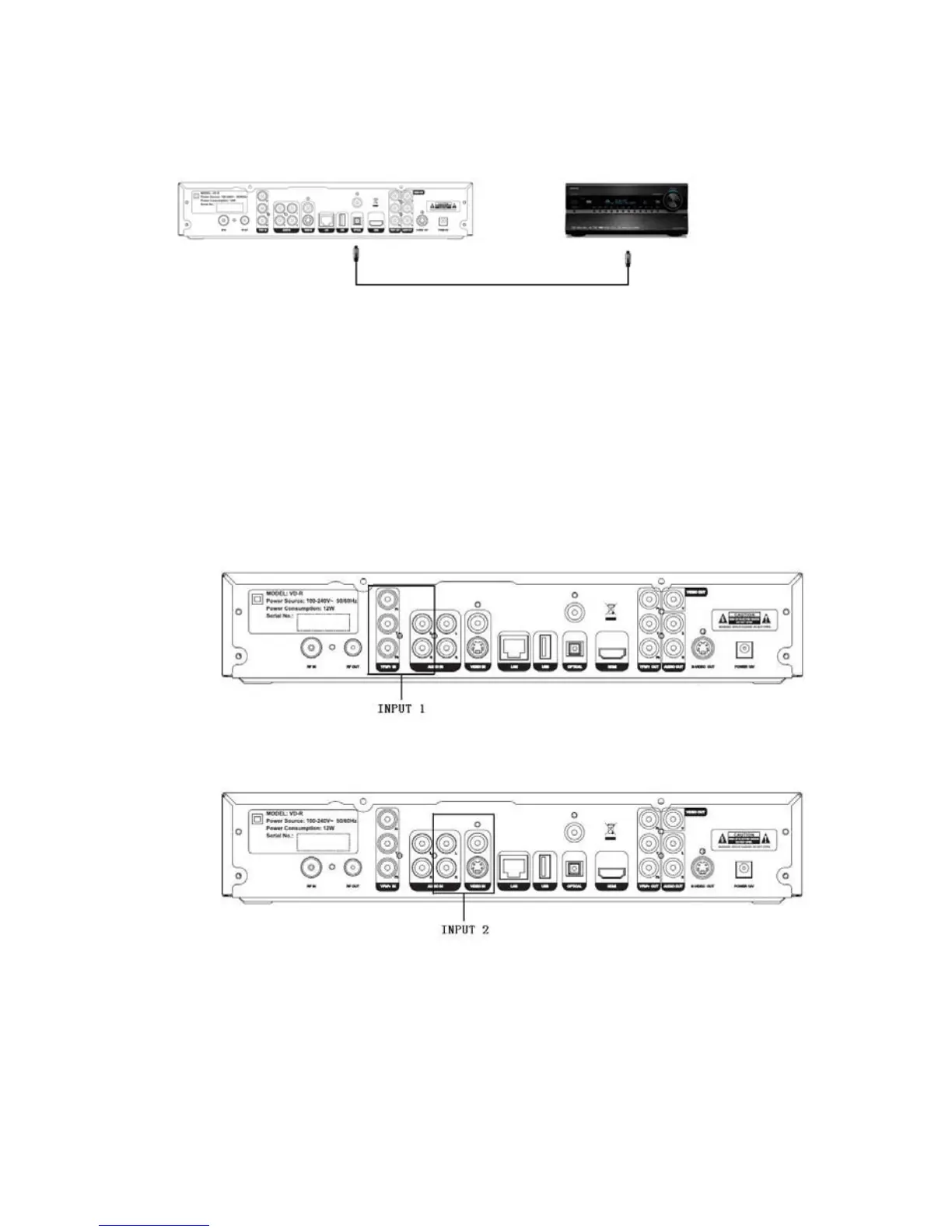

3.8 Other Options for Audio & Video Input Source
YPbPr, Audio IN and Video IN on the rear panel are for VD-R’s Audio/Video
Input. They are separated into 2 groups.
Component Video and Audio L/R Inputs are in 1 group on the left namely
Input 1:
S-Video/V and L/R Inputs are in 1 group on the right namely Input 2:
V and L/R Inputs are in 1 group on the front namely Input 3:
54 / 81
