Veeco Digital Instruments Dimension 3100 - 9.3.2 Tip Suggestions

Contact AFM in Fluids
Rev. C Dimension 3100 Manual 9-153
Fluid Operation Hardware continued...

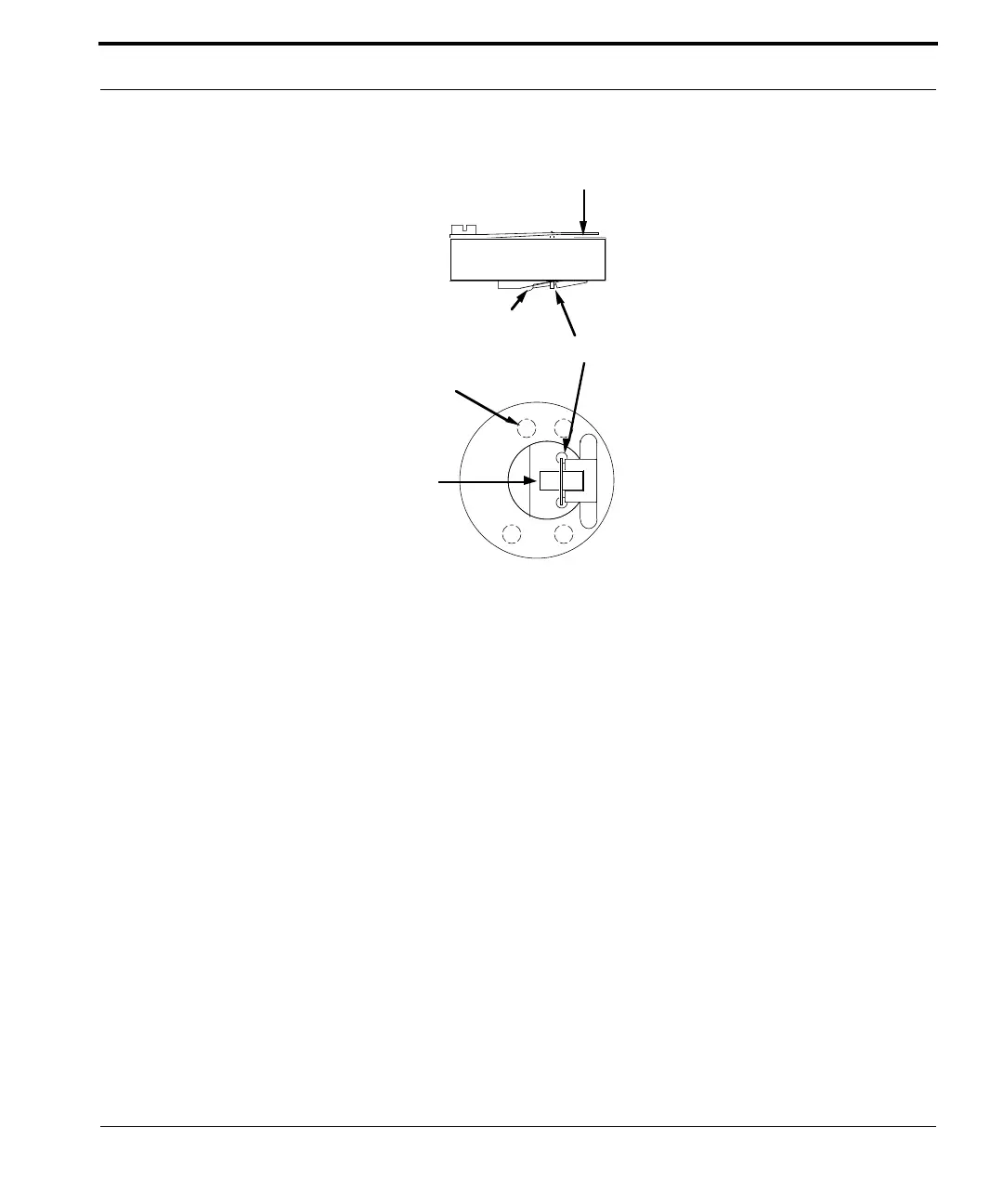

Figure 9.3a Fluid Tip Holder
9.3.2 Tip Suggestions
Soft cantilevers, particularly oxide sharpened tips, produce the best results
for biological applications. These tips are typically 100 microns long,
narrow-legged with oxide sharpened silicon-nitride tips. Models DNP-S or
DNP-STT are good examples. Users should experiment to find which
cantilevers work best for their sample.
Note: For additional information on selecting
a cantilever, please refer to the Digital
Instruments Veeco website (www.di.com).
Removing Organic Contamination
Contaminants on the cantilever tip may limit the AFM’s resolution. Use
ultraviolet light to remove contaminants as follows:
1. Place the fluid cell with installed tip face-up on a clean surface.
2. Position a UV lamp very close (3-5mm) to the fluid cell and
irradiate the unit for two minutes at full intensity.
sockets not shown!!
SIDE VIEW
tip installed
BOTTOM VIEW
tip not installed
sockets shown are
on top but viewed
through bottom !!
Spring Loaded Probe Clip
Probe Clip Spring Lever
Cantilever Probe Tip
( tip faces down )
Cantilever
Mounting
Groove
( no tip
installed )
Mounting Sockets ( 4 plcs.)
( Top Side )
