Facilities Requirements
3-58 Dimension 3100 Manual Rev. C
Acoustic/Vibration Isolation Systems continued...
3.4.4 Computer/Controller Facility Requirements
The IS3K-2 allows placement of the computer/controller within the
framework of the unit. No additional footprint is required.
Customer must supply computer and controller table or order the optional
Elcon console for enclosure.

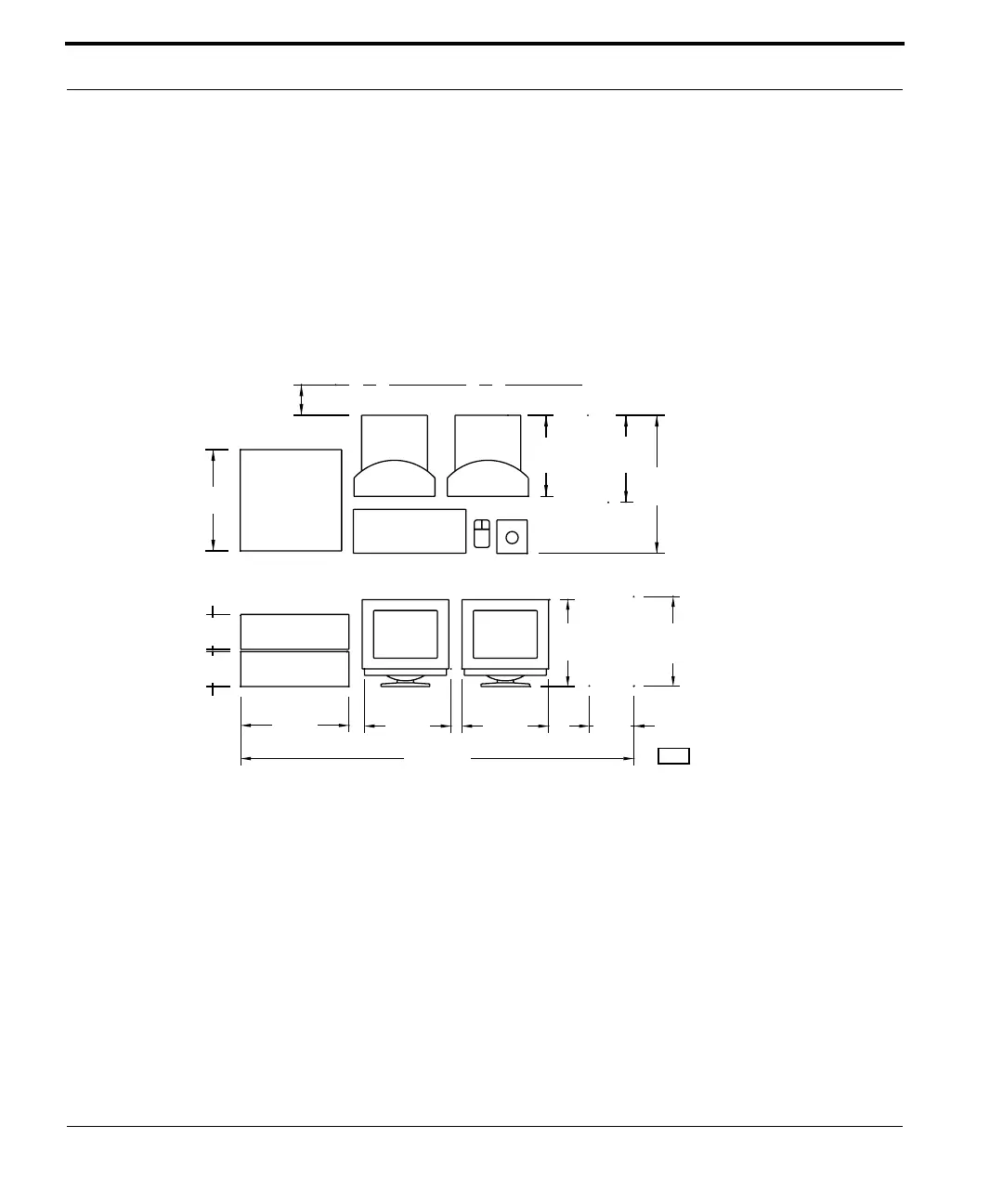

Figure 3.4j Axiom VT-103-3K and Axiom VT-102
Weight: 170 lbs. nominal total; 140 typically on table top.
Note: Dimensions shown for computer and
controller equipment are approximate and
subject to change without notice.
16.5"
419.1 mm
20.0"
508 mm
16.0"
406.4 mm
16.0"
406.4 mm
7.3"
185.4 mm
60" min.
1524 mm
17.0"
431.8 mm
18.0"
457.2 mm
6" CLR. Required for Cables
17.0"
431.8 mm
18.5"
469.9 mm
30.0"
762 mm
Monitor
Control
Display
Monitor
6.0"
152.4 mm
6.0"
152.4 mm
CPU
SPM
Controller
Supply Module
Air and Vacuum
CPU
Control
Monitor
Mouse
(SPM
Controller
Below)
Supply Module
AIir and Vacuum
Keyboard
Display
Monitor
Trackball
AC Power Supply Here
152.4 mm
4004
Top View
Front View
