Veeder-Root TLS-450PLUS Troubleshoot Manual

2 System Description System Parts Identification
2-6

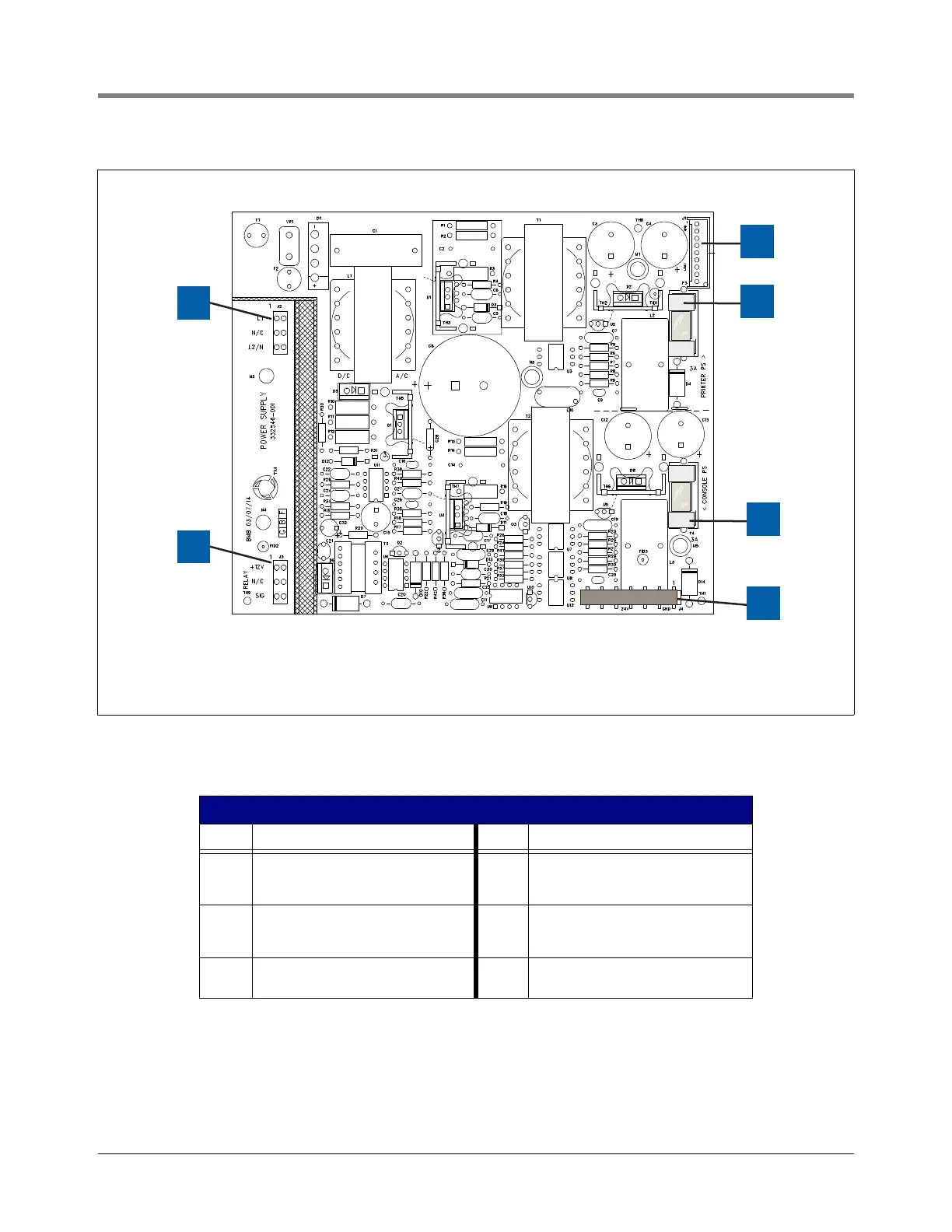

Figure 2-6. Power Supply Board
Legend For Figure 2-6
Item Description Item Description
1 Low voltage relay control connector
(Relay connector on AC input board
connects here)
4 Printer power supply fuse, 3A Slo-Blo
2 AC Input power connector (Line AC
input connector on AC input board
connects here)
5 Console power supply fuse, 3A Slo-
Blo
3 Printer power connector J1 6 Power output connector (connects to
Comm Backplane board)
5
6
4
3
2
1
