7-11
7 Component Removal Removing The Features iButton

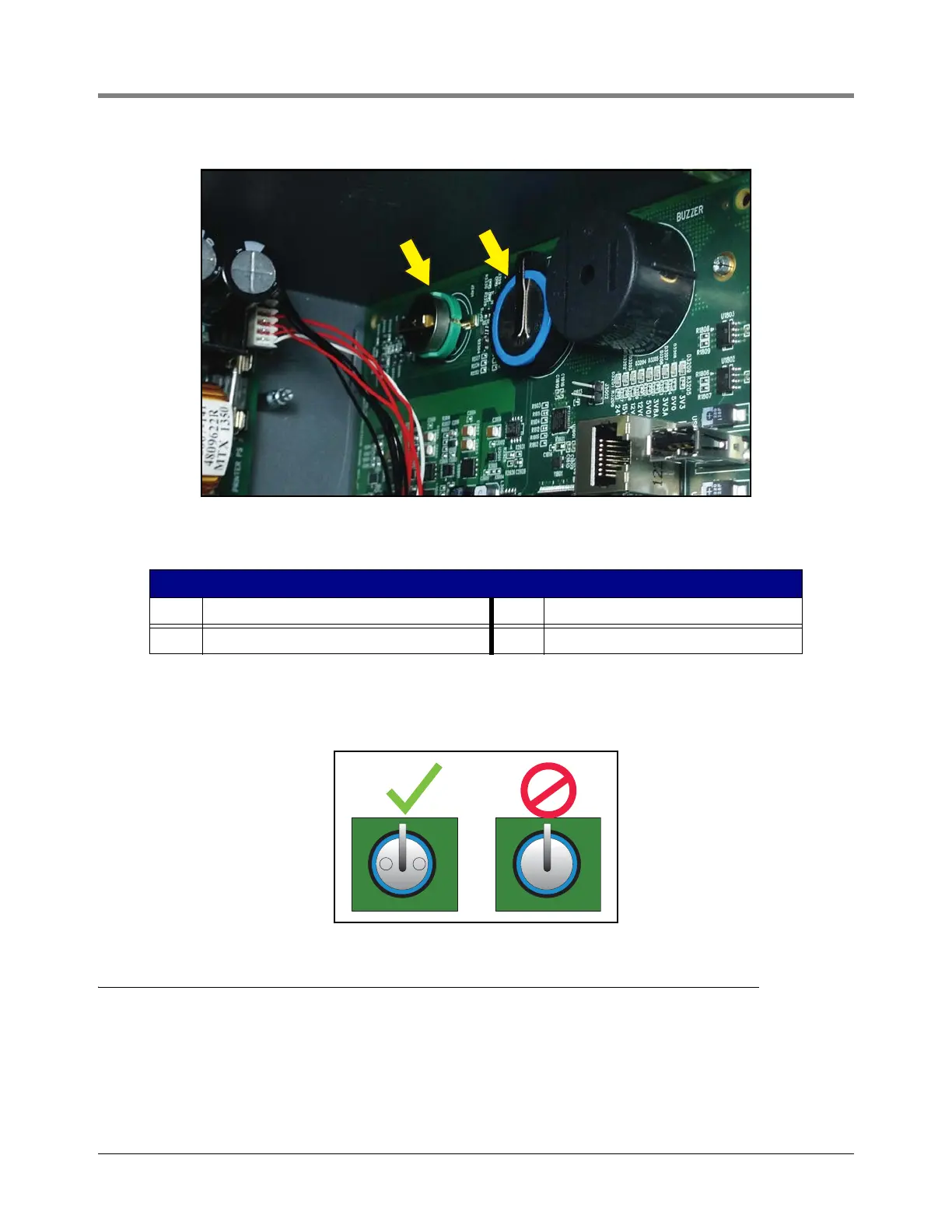

Figure 7-14. Locating Features iButton And Backup Battery
4. Remove the battery by gently lifting the retaining clip over the battery as you slide it down out of its holder.
Reinstall the battery with the ‘+’ side up, by sliding it up under the retaining clip until it snaps securely into the
holder:
Removing The Features iButton
1. Perform all of the Steps in the section entitled “Before Turning Off Power” on page 7-2.
2. Open the console doors as described in Step 1 of the section entitled “Removing The Ack Switch Panel/
Display (Right) Door And CPU Board” on page 7-3.
3. Perform all of the steps in the section entitled “Removing The Ack Switch Panel/Display (Right) Door And CPU
Board” on page 7-3.
Legend For Figure 7-14
Item Description Item Description
1 Features iButton 2 Backup Battery
+
+
To Next Page
