7 Component Removal Removing The AC Input Filter And Power Supply Board

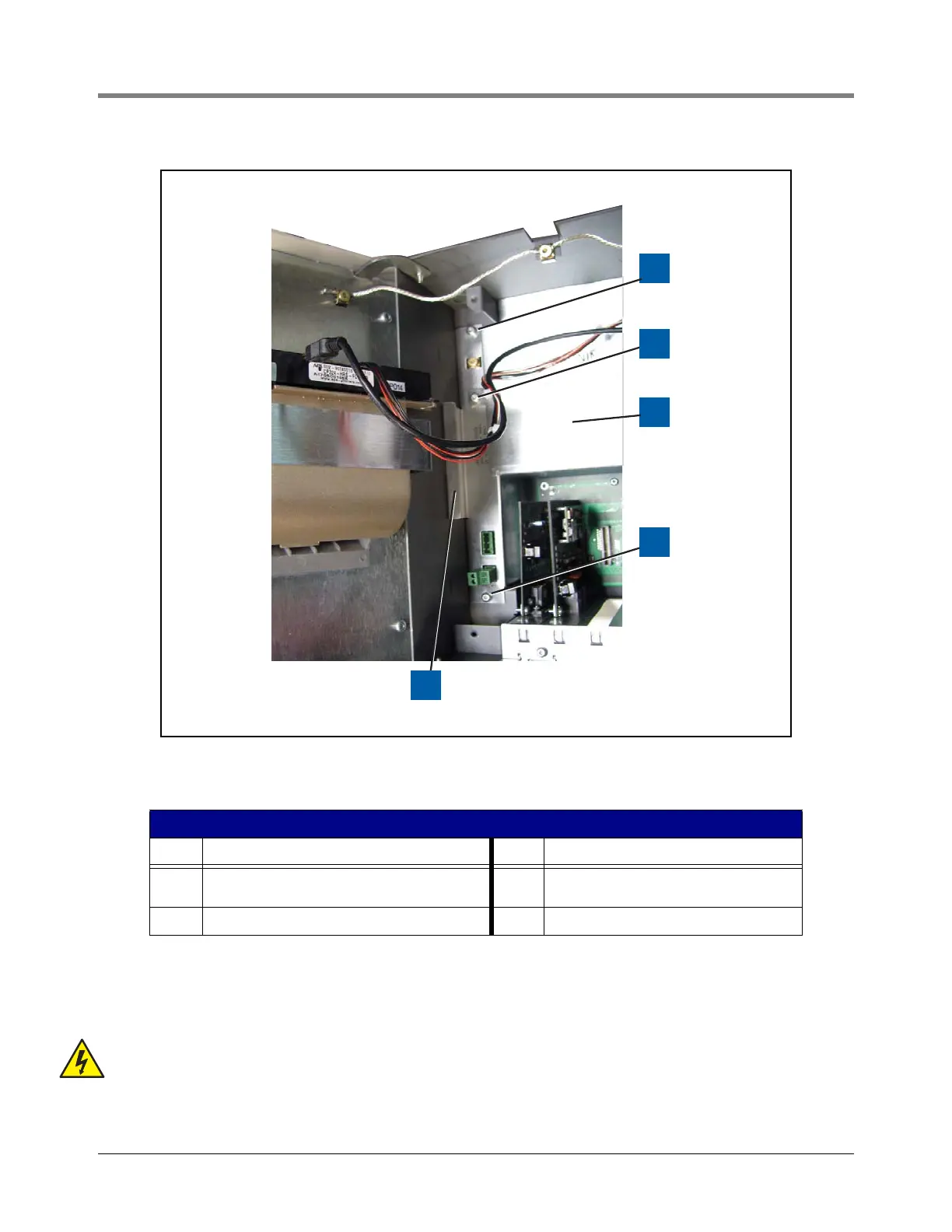

Figure 7-9. Removing AC Input Filter
7. Remove the two T15 screws (item 1 in Figure 7-10) that secure the Power Supply board to the console
housing.
8. Place a finger under the edges of the Power Supply board near the upper right and lower left edges of the
board and lift the board up until it is free of the three snap pins (item 2 in Figure 7-10).
WARNING! Shock hazard. Do not touch underside of Power Supply board beneath the five
capacitors (identified by item 3 in Figure 7-10).
9. Disconnect the printer power cable from the Power Supply board connector J1.
Legend For Figure 7-9
Item Description Item Description
1 T15 screws (the middle one secures the Power
Supply shield to the AC Input Filter bracket)
3 AC Input Filter handle
2 Power Supply shield
956-5.eps
1
3
1
1
2
