7 Setup with smartphone/tablet (Bluetooth)
VEGAPULS C 23 • Modbus and Levelmaster protocol
58349-EN-200806
After connection, the sensor adjustment menu is displayed on the
respective adjustment tool.
If the Bluetooth connection is interrupted, e.g. due to a too large
distance between the two devices, this is displayed on the adjustment
tool. The message disappears when the connection is restored.
Parameter adjustment of the device is only possible if the parameter
protection is deactivated. When delivered, parameter protection is
deactivated by default and can be activated at any time.
It is recommended to enter a personal 6-digit device code. To do this,
go to menu " Extended functions", " Access protection", menu item "
Protection of the parameter adjustment".
7.3 Parameter adjustment
The sensor adjustment menu is divided into two areas, which are
arranged next to each other or one below the other, depending on the
adjustment tool.
•
Navigation section
•
Menu item display
The selected menu item can be recognized by the colour change.

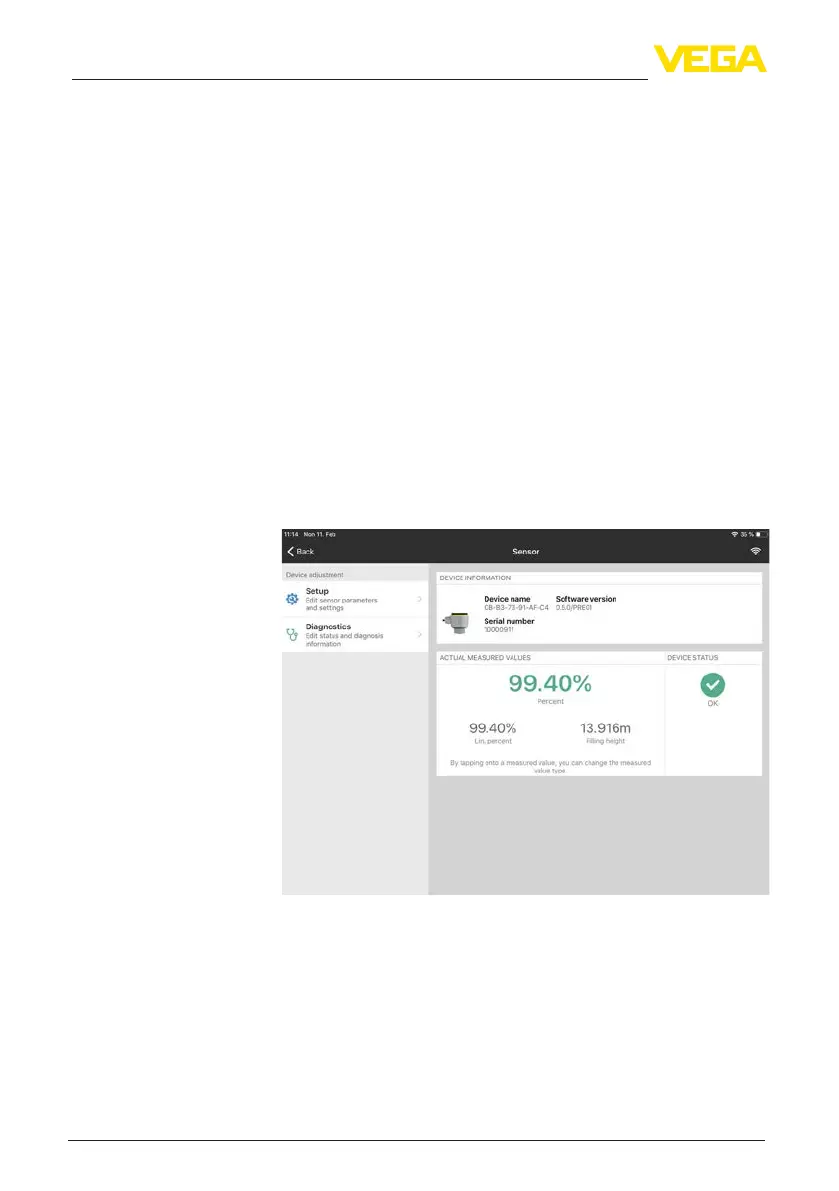

Fig. 20: Example of an app view - Setup measured values
Entertherequestedparametersandconrmviathekeyboardorthe
editingeld.Thesettingsarethenactiveinthesensor.
Close the app to terminate connection.
Connected
Change device code
Enter parameters

Vega VEGAPULS 11 Specifications

General

Frequency	80 GHz
Protection class	IP66/IP67
Accessory Type	Radar sensor
Purpose	Level measurement
Measuring range (short)	8 m
Beam angle	8°
Accuracy	±2 mm
Communication interface	HART
Measuring range	Up to 8 m
Process temperature	-40 to +80 °C
Process pressure	-1 to +3 bar
Output signal	4...20 mA/HART
Material	Plastic
Protection class (dual)	IP66/IP67
Housing material	Plastic
Power supply	12 - 30 V DC
