3 Product description
VEGAPULS 11 • Two-wire 4 … 20 mA
58350-EN-200806
4
5
1
2
3

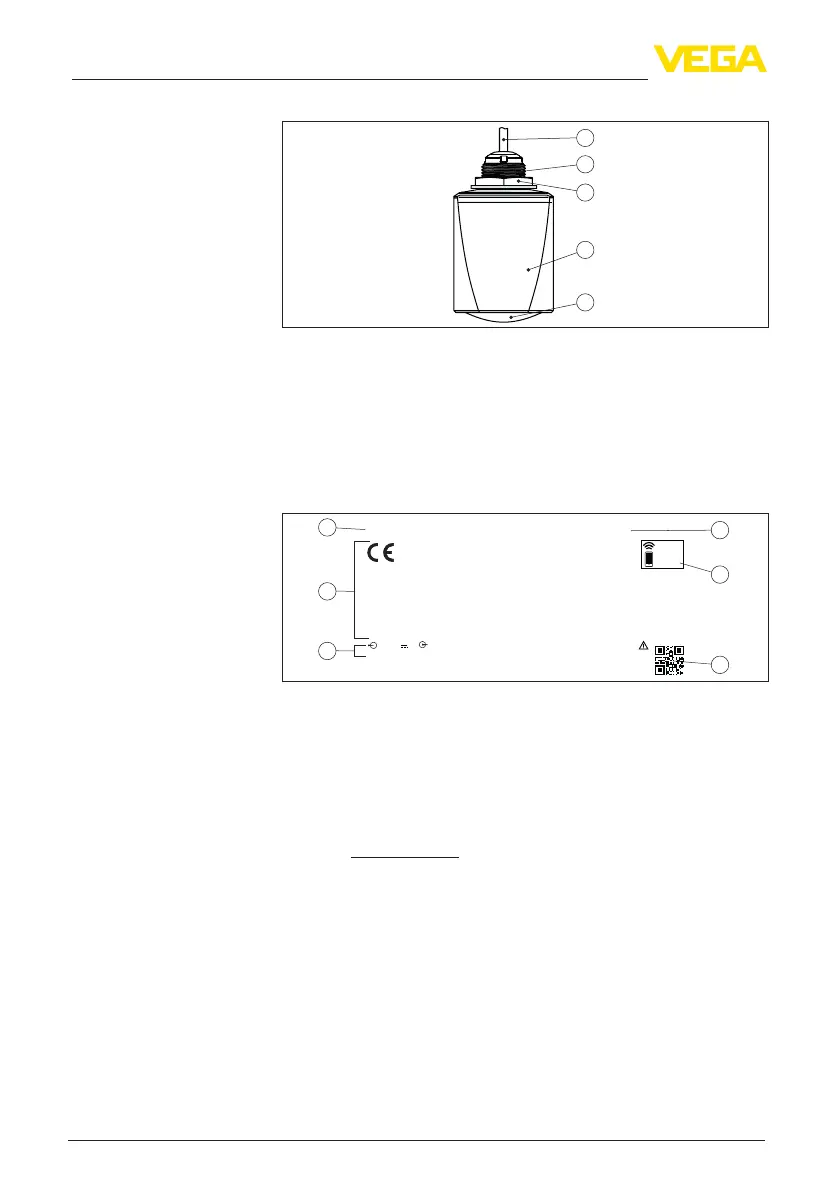

Fig. 1: Components of VEGAPULS 11
1 Radar antenna
2 Processtting
3 Process seal
4 Electronics housing
5 Ventilation/pressure compensation
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument.
0044
12...35V
4...20mA
IP66/IP67, TYPE 4x
0...8m
123456
1
5
6
7
2
3
2020
www.vega.com
77761 SCHILTACH,
Made in Germany
VEGAPULS 1. s/n 12345678
MWP 3bar (300kPa)
PVDF
L=5m
1½ NPT / 1 NPT
TAG1234
Fig. 2: Layout of the type label (example)
1 Instrument type
2 Field for approvals
3 Technical data
4 Bluetooth access code
5 QR code for device documentation
6 Serial number
Move to " www.vega.com"andenterinthesearcheldtheserial
number of your instrument.
Thereyoucanndthefollowinginformationabouttheinstrument:
•
Order data
•
Documentation
•
Software
Alternatively,youcanndallviayoursmartphone:
•
Scan the QR-code on the type label of the device or
•
Enter serial number manually in the VEGA Tools app (available
free of charge in the respective stores)
Constituent parts
Type label
Documents and softwar
e
