Meter readout
Audio power calculation.
The measured voltage is converted into power,
suposing that the voltage is measured across an
impedance. The calculated power can be displayed
for loads of 2, 4, 8, 16 or 32 Ohm. To choose the
different loads, first highlight the power readout and
then press the right cursor key.
13. W ac
AC Rms power calculation into selected impedance
14. W peak
Peak power calculation into selected impedance.
15. W ac+dc
AC+DC power calculation into selected impedance
(a normal audio signal can not have DC component).

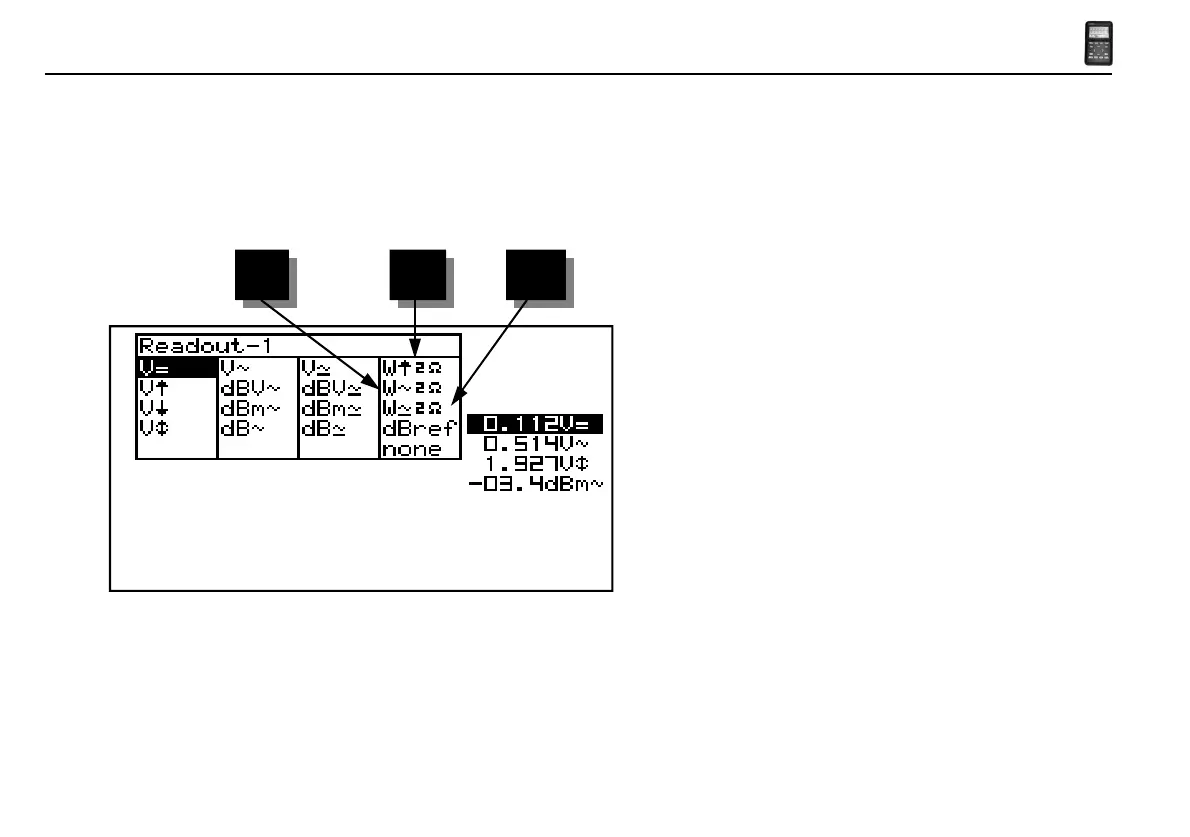

Fig 27
13 14 15
