2. Description
2.1 Overview HP25E / HP30E
1 Hopper
2 Vacuum pot
3 Vacuum display
4 Vacuum control valve
5 Lifting/tipping device
(optional)
6 Control panel
7 Adjustable feet
8 Step
9 Knee lever
10 Filling horn
11 Locking nut
12 Hopper release mechanism
13 Mirror
14 Stopper

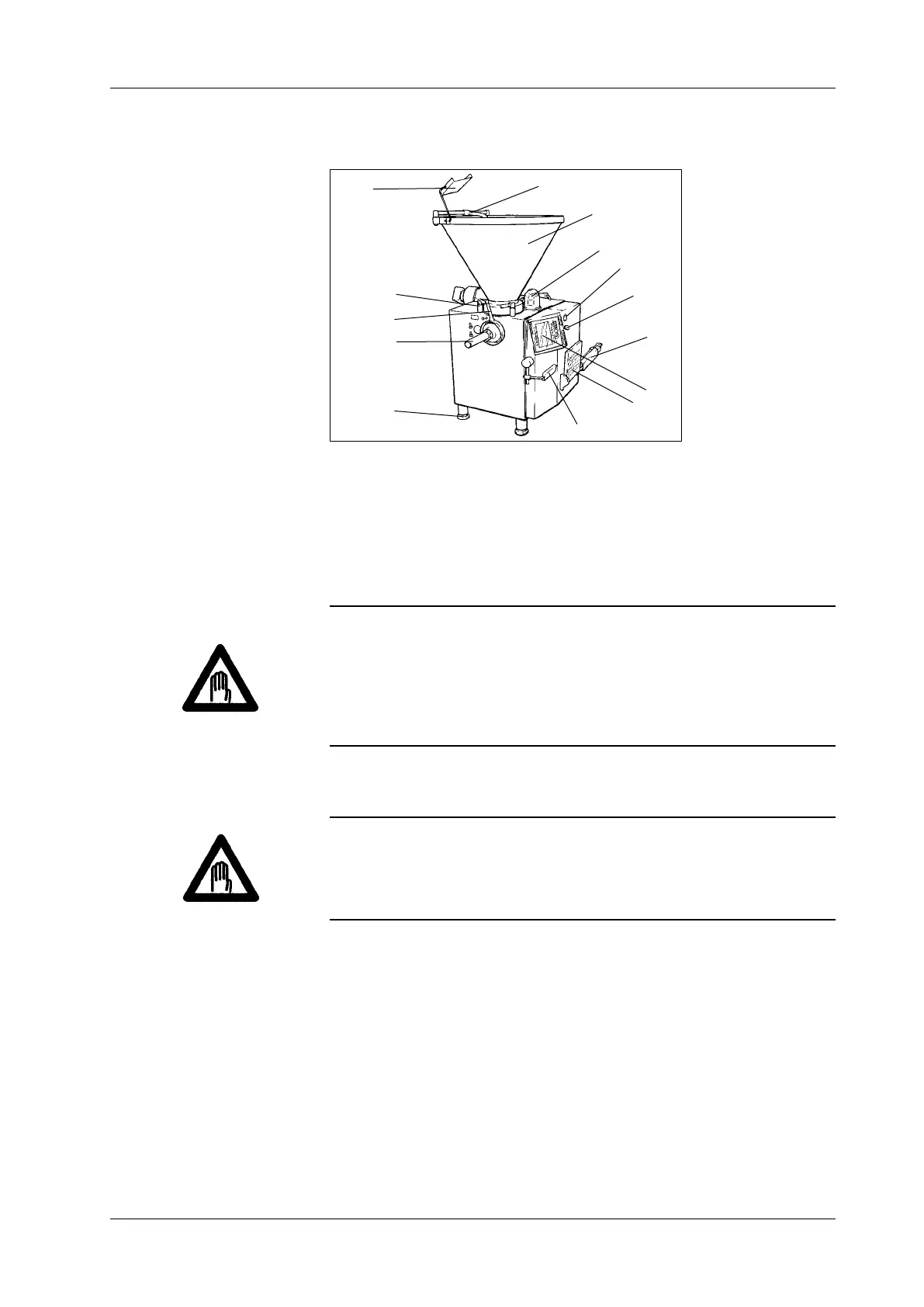

Fig. 2-1
Machine with lling horn
1
2
4
5
3
6
8
9
7
10
11
12
13
14
2.2 Brief description
2.2.1 Hopper
The ller is equipped with a hopper for pouring in product for lling. The
hopper is tted with a safety device which switches o󰀨 the machine when
the hopper is open. A mirror attached to the hopper allows the contents to
be checked.
Danger!
To prevent injury, switch o󰀨 the machine before doing any work on the
hopper. Then switch o󰀨 the main switch to disconnect the machine from
the mains. Do not climb onto the machine to check the hopper/hopper
contents or for cleaning and maintenance purposes, use only the step
provided. Under no circumstances use a ladder or other aid to get at the
hopper of the machine.
The hopper is tted with cushioning as a partial counterweight to prevent
the hopper falling shut under its own weight.
Danger!
Proceed especially carefully when opening and closing the hopper to
prevent injury (risk of crushing). Grasp the hopper only at the ange to tip
it over carefully. Do not open the hopper as long as the lifting and tipping
device (optional) is in its top limit position.
