3.2 Setting up the machine
The machine must stand rmly on all four feet at all times and be aligned
as horizontally as possible in the longitudinal direction (outlet side). There
may be a slight inclination (max. 2°) in the direction of the outlet side to
encourage water to drain o after cleaning. In the cross-wise direction
(control side), the machine must be parallel to the oor. The feet (1) can
be adjusted using universal spanner (2).
The outlet height of the machine is 1,000 mm as standard. It can be
increased by up to 80 mm with the aid of the adjustable feet.
• Unscrew feet: height of outlet is increased
• Screw in feet: height of outlet is decreased

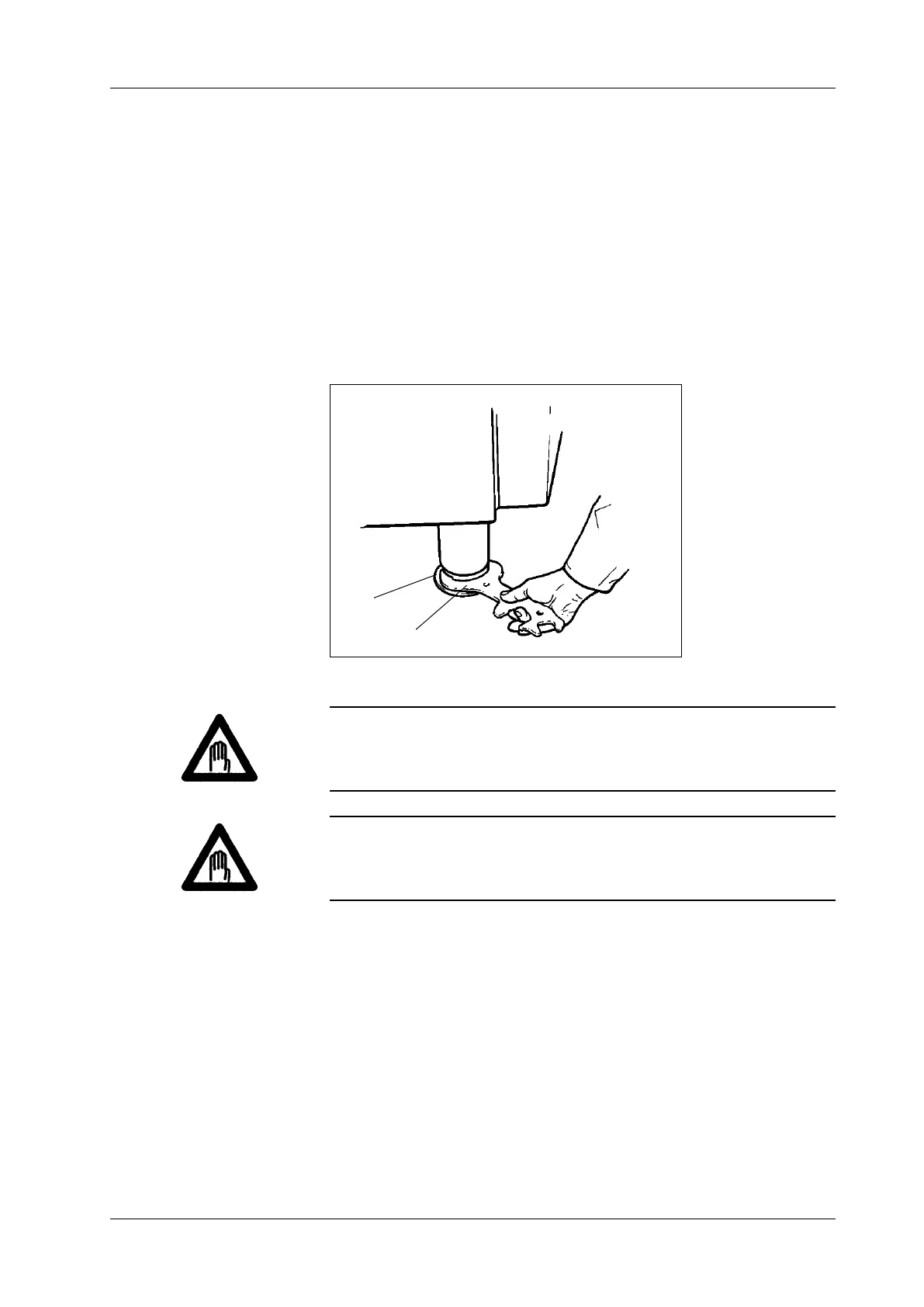

1 Adjustable foot
2 Universal spanner
Fig. 3-4
Setting up the machine
1
2
Danger!
There is a risk of injury from the machine overturning if the feet are un-
screwed too far.
Do not unscrew the machine‘s feet by more than 80 mm.
Danger!
If the machine is not parallel to the oor in the cross-wise direction and
the trolley is not held correctly by the trolley hoist, there is a risk of injury
due to a falling trolley.
