HP25E / HP30E3. Installation and commissioning
3-6 © VEMAG 2018
3.5 Levelling the lifting/tipping device (optional)
The trolley hoist of the lifting/tipping device is set at the factory with the
feet of the machine screwed in and on a level oor (outlet height 1,000
mm). If the feet of the machine are screwed out to adjust height or to
align the machine, the stop parts on the lifting and tipping device will have
to be readjusted to obtain the correct height for the trolley to enter.
Adjust the lifting/tipping device as follows:
• Align the machine properly using the adjustable feet.
Section 3.2

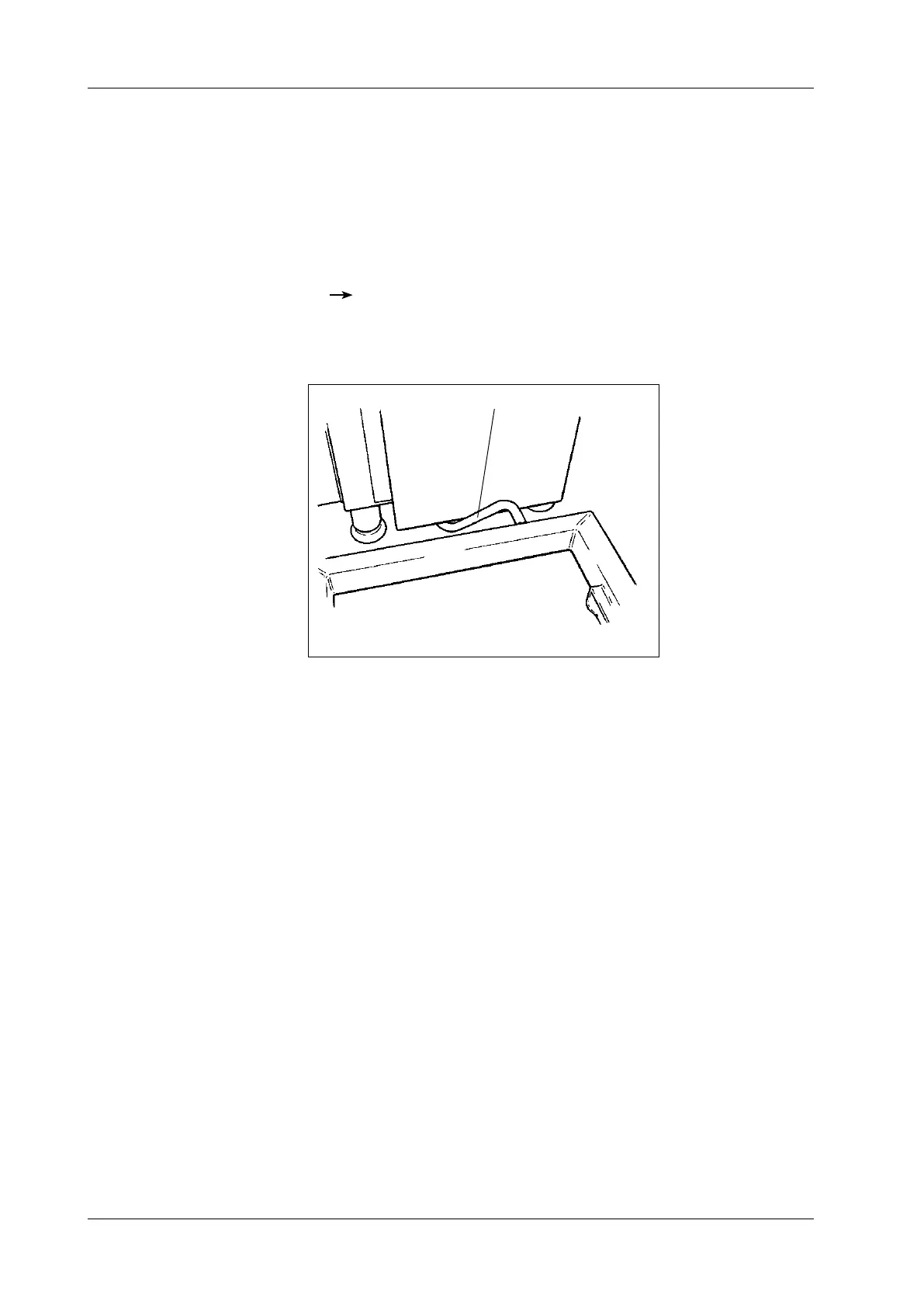

• Undo the four mounting bolts for the stop bar (1) of the trolley hoist
and push the bar right in.
1 Stop bar
Fig. 3-7
Stop
1
• Switch on the machine and move the arm of the lifting/tipping device
to the vertical end position using the UP key.
