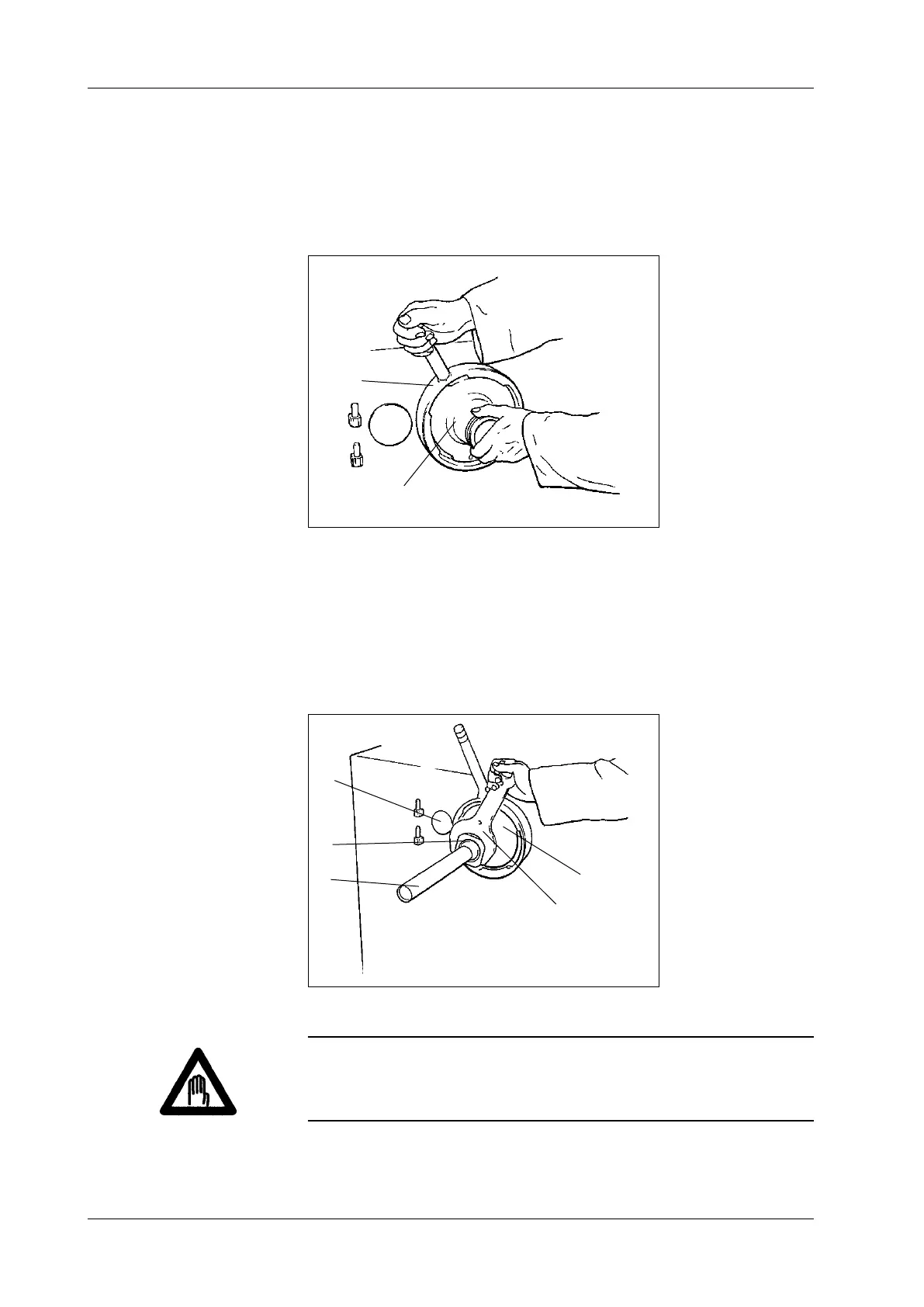

4.4 Fitting the lling horn
• Adjust locking nut (1) so that the handle is between the 10 and 11
o’clock position and insert lling horn holder (2).
• Turn locknut (1) clockwise to lock the lling horn holder. The handle
should now be approximately vertical.
1 Locking nut
2 Filling horn holder
Fig. 4-5
Locking the lling horn
holder
1
2
• Select a lling horn with the largest possible diameter related to the
size of the casing.
• Use the lling horn nut (2) on the lling horn holder (3) to attach the
lling horn (1). Use the appropriate universal spanner (4).
• Push the protective cap (5) onto the linking cartridge (if present).
1 Filling horn
2 Filling horn nut
3 Filling horn holder
4 Universal spanner
5 Protective cap
Fig. 4-6
Fitting the lling horn
1
2
3
4
5
Danger!
There is a risk of injury if the linking cartridge is left open.
Always place the protective cap on the linking cartridge when working
without a linking gear (optional).
