HP25E / HP30E4. Setting up
4-10 © VEMAG 2018
4.9 Adjusting the knee lever
The knee lever can be adjusted in terms of height (H), angle (W) and
projection (A) to suit the height and location of the operator.
• Undo the hexagonal nut (1) using the universal spanner (2).
• Adjust the knee lever to the desired height (H) and angle (W).
• Tighten up the hexagonal nut again.
• Move the knee lever plate (3) along the lever shaft until the desired
projection (A) is reached. The plate can be taken o the lever shaft
altogether if required.
A
H
W
1 Hexagonal nut
2 Universal spanner
3 Knee lever plate

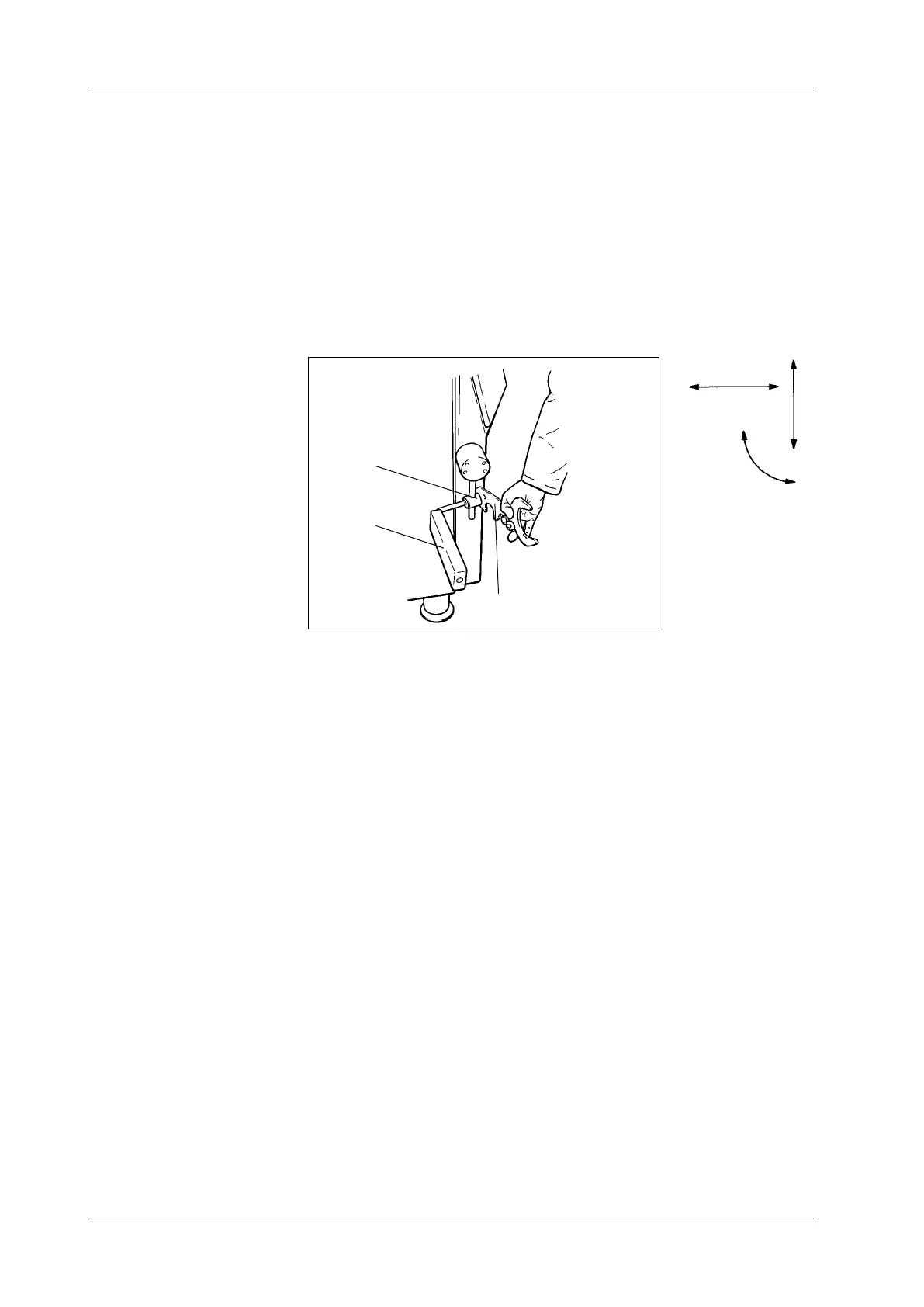

Fig. 4-14
Adjusting the knee lever
1
2
3
