SETUP
Cable Connections
V
X
670 INSTALLATION GUIDE 15
V
E
R
I
F
O
N
E
C
O
N
F
I
D
E
N
T
IA
L
R
E
V
I
S
I
O
N
A
.
5
RS232 Connection
using an External
Power Brick
A special dongle cable is used, where one end of the cable plugs into the VX 820
while the other end terminates in a DB-9 connector housing. On the housing, a
DC jack is provided to connect to an external power brick. This is a generic cable
for all RS232-based hosts.

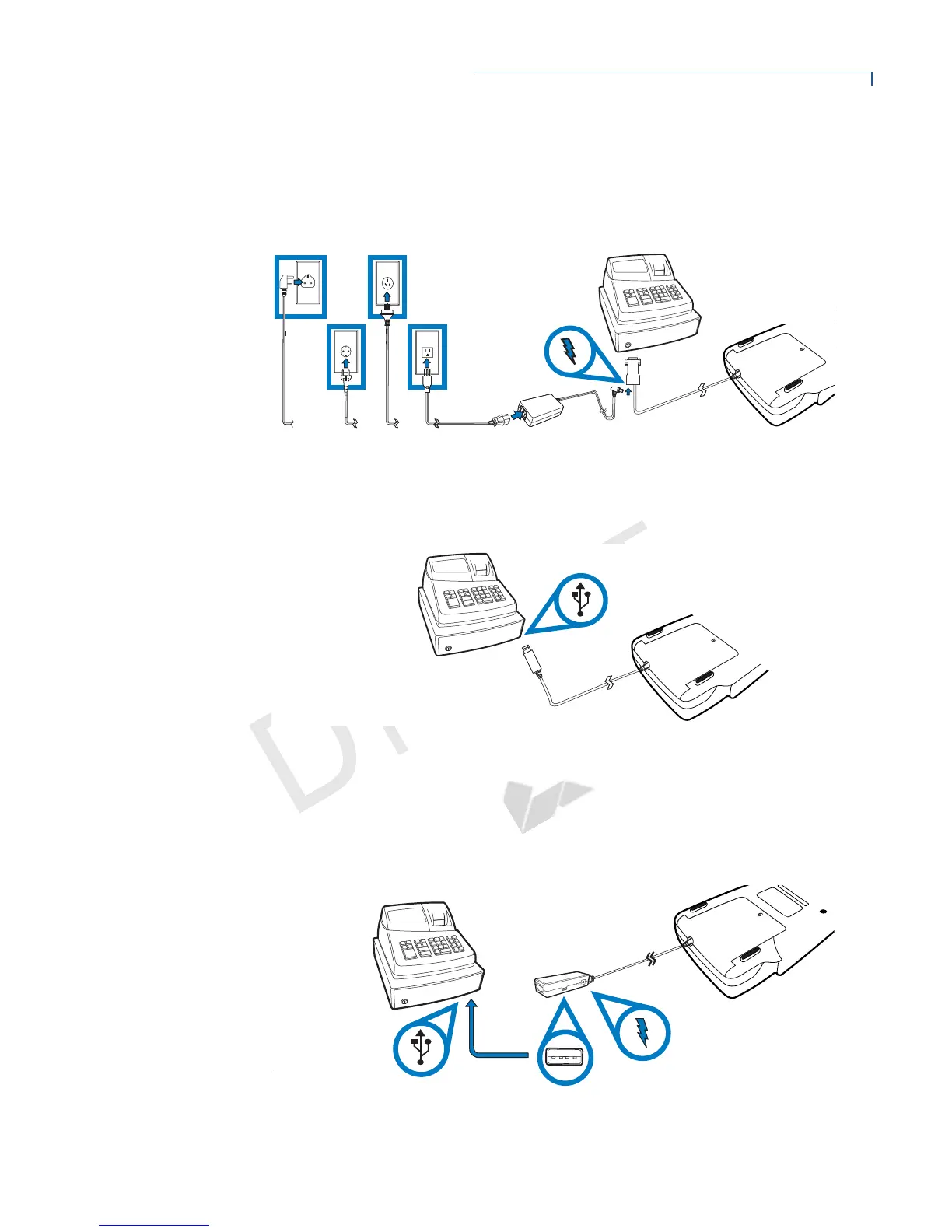

Figure 9 VX 820 with an RS232 Connection Using an External Power
Brick
Direct USB
Connection
Similarly, a dongle cable is required in standard USB environments. For this cable
option, the host end has a molded housing which exposes the standard USB plug.
Figure 10 Direct USB Connection
USB–Download
Support using an
External Power
Brick
This cable option comes with a junction box that provides a mini-style Type B
USB socket for connecting to the USB-based host and a DC jack for external
power connection.
In addition, a Type A USB socket is provided on the junction box to support
application download via a USB thumb drive.
Figure 11 VX 820 Connected to a USB with Download Support
