VeriFone VX 820 Installation Guide

SETUP
Cable Connections
16 VX 820 INSTALLATION GUIDE
V
E
R
I
F
O
N
E
C
O
N
F
I
D
E
N
T
IA
L
R
E
V
I
S
I
O
N
A
.
5
PoweredUSB
connection
For a USB-based host with PoweredUSB feature, a straight cable is all that is
required. The VX 820 supports the 12 V DC option.

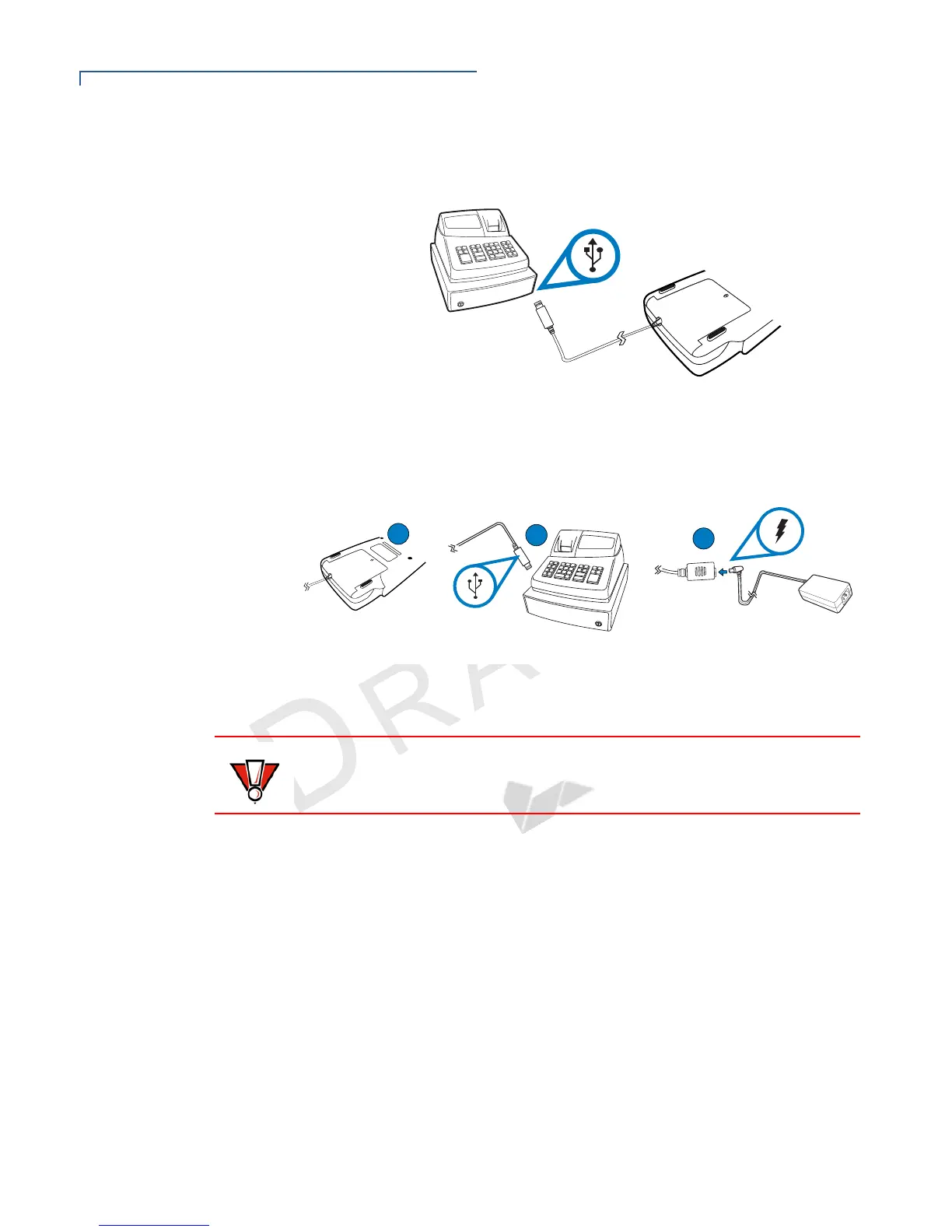

Figure 12 PoweredUSB Connection
Use the DC jack provided on the USB power cable to connect to an external
power brick. Connect the cable to the VX 820 and plug the male USB connector
into the corresponding USB port on the USB host as illustrated in Figure 10.
Figure 13 USB Power Cable Connections
A
C
B
CAUTION
Using an incorrectly rated power supply can damage the unit or cause it not to
work properly. Use only a power pack with PWR282-001-01-A (see
Specifications for detailed power supply specifications).

VeriFone VX 820 Specifications

General

Display	3.5 inch color touchscreen
Connectivity	Ethernet, USB, RS-232
Processor	400 MHz ARM11
Memory	128 MB Flash, 32 MB SDRAM
Card Readers	Magnetic stripe, contactless
Security	PCI PTS approved
Weight	320g
