SETUP
Power Supply
V
X
670 INSTALLATION GUIDE 17
V
E
R
I
F
O
N
E
C
O
N
F
I
D
E
N
T
IA
L
R
E
V
I
S
I
O
N
A
.
5
Ethernet
Connection with
External Power
Brick
The cable required junction box that provides a standard RJ-45 LAN socket and a
DC jack. However, since most hosts do not support peer-to-peer LAN connection
to a PIN pad, an additional RJ-45 socket is provided on the junction box to allow a
direct connection between VX 820 and the host.

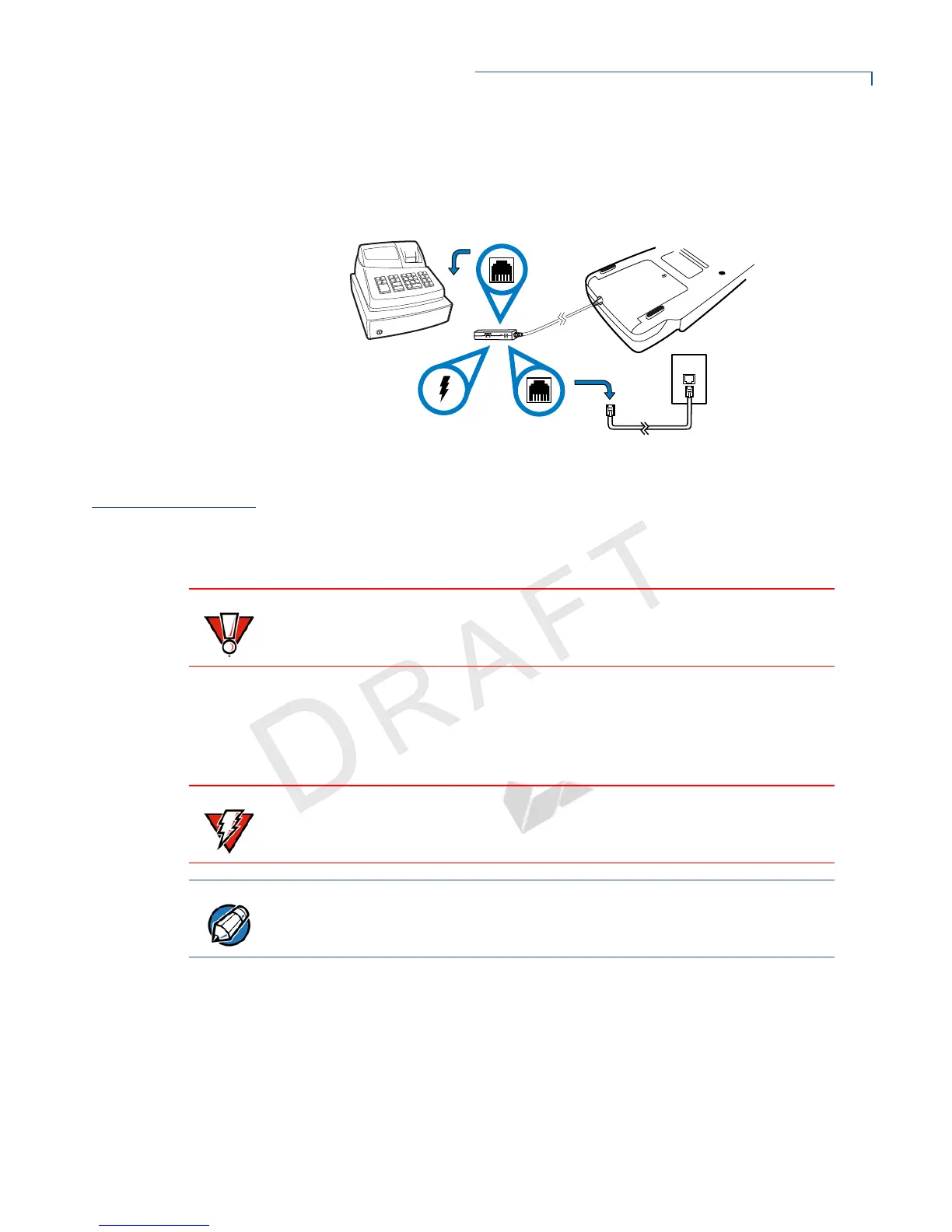

Figure 14 Ethernet Connection with External Power Brick
Power Supply
Not all VX 820 configurations and device contexts require the use of a power
supply – VeriFone ships power supplies with the VX 820 as required.
If you have changed the context in which the VX 820 is used or have questions
about which power supply should be used, contact your VeriFone representative.
Before connecting a power supply, disconnect the power pack cord from the
power outlet.
Connect and route all cables between the VX 820, ECR, and PC before plugging
the power pack cord into a wall outlet or surge protector.
When the VX 820 has power and an application is loaded, the application starts
after the initial VeriFone copyright screen and displays a unique copyright screen.
If no application is loaded,
DOWNLOAD NEEDED appears on the display after the
initial VeriFone copyright screen.
Using an incorrectly rated power supply can damage the unit or cause it not to
work properly. Use only a power pack with VPN PWR282-001-01-A (see
Specifications for detailed power supply specifications).
Do not plug the power pack into an outdoor outlet or operate the VX 820
outdoors. Also, disconnecting power during a transaction can cause transaction
data files not yet stored in memory to be lost.
