VeriFone VX 820 Installation Guide

SETUP
Optional Accessories
V
X
670 INSTALLATION GUIDE 21
V
E
R
I
F
O
N
E
C
O
N
F
I
D
E
N
T
IA
L
R
E
V
I
S
I
O
N
A
.
5

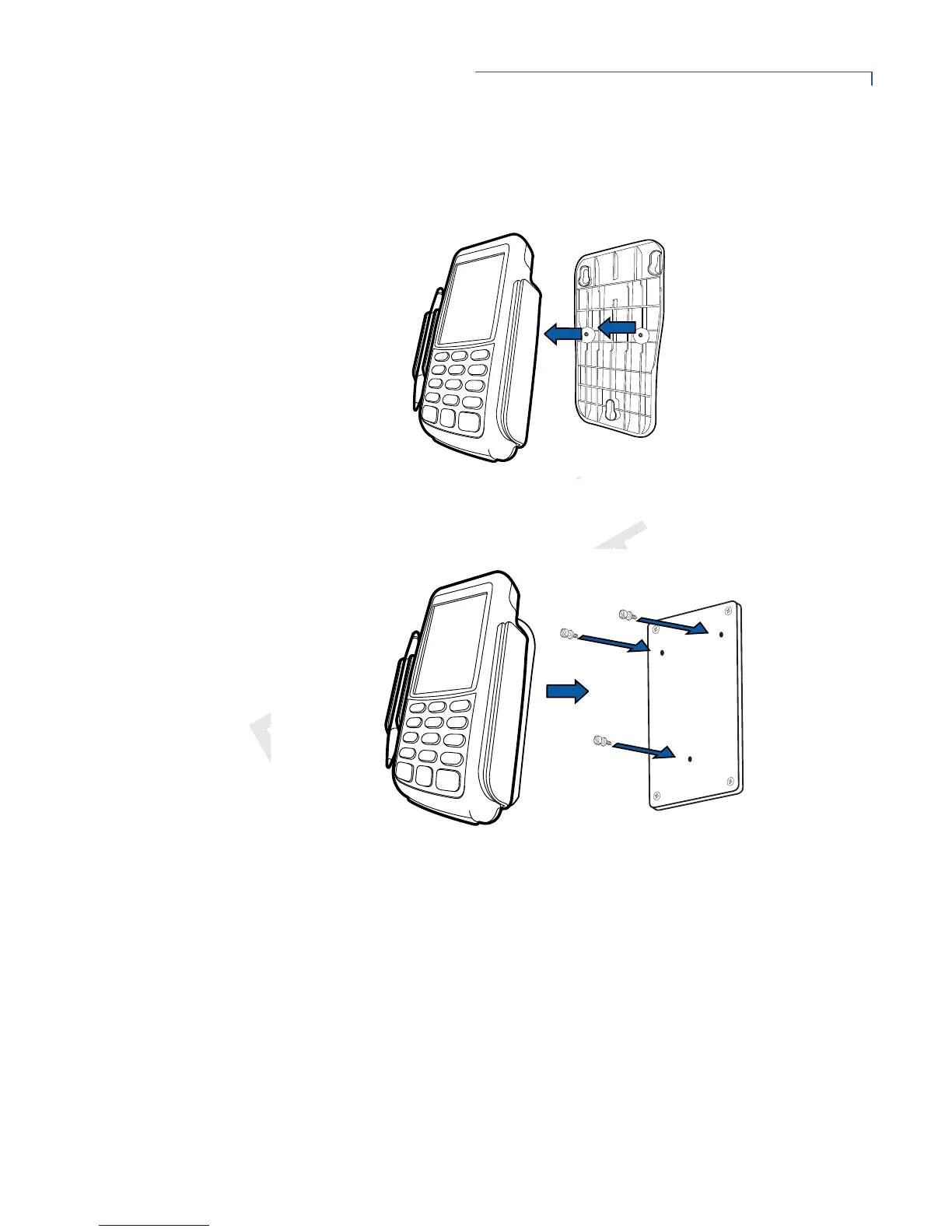

Mounting Adapter
This optional accessory is used to mount the VX 820 to vertical or inclined
surfaces. First, screw the mounting adapter in place using the two slots behind the
terminal, and optionally the stylus holder.
Attach three M3 screws to the desired surface. Make sure that they are placed at
distances that align with the slots on the mounting adapter. Finaly, slide the
terminal with the attached adapter in place.
M3 screws

VeriFone VX 820 Specifications

General

Display	3.5 inch color touchscreen
Connectivity	Ethernet, USB, RS-232
Processor	400 MHz ARM11
Memory	128 MB Flash, 32 MB SDRAM
Card Readers	Magnetic stripe, contactless
Security	PCI PTS approved
Weight	320g
