Table 2-1
Usable NetBackup 5340 Appliance 5U84 Storage Shelf storage
capacities by disk drive capacities (continued)
Usable storage capacities (8-TB Drives)Usable storage capacities (4-TB Drives)
1920TiB
* **
(2,111TB)
960TB
* **
(1,056TB)
*
NetBackup 5340 Appliance software version 3.1.1 supports up to 960TiB (1,056TB) of usable MSDP storage capacity.
For all storage configurations with an aggregate total of all MSDP pools equaling 960TB or larger, Veritas strongly
recommends upgrading the memory capacity to 1536GB.
** For these storage shelf configurations, Veritas strongly recommends that you upgrade the memory capacity to
1.5TB when using NetBackup Appliance software versions 3.1 or later, due to the increased resource requirements
from updated MSDP encryption standards.

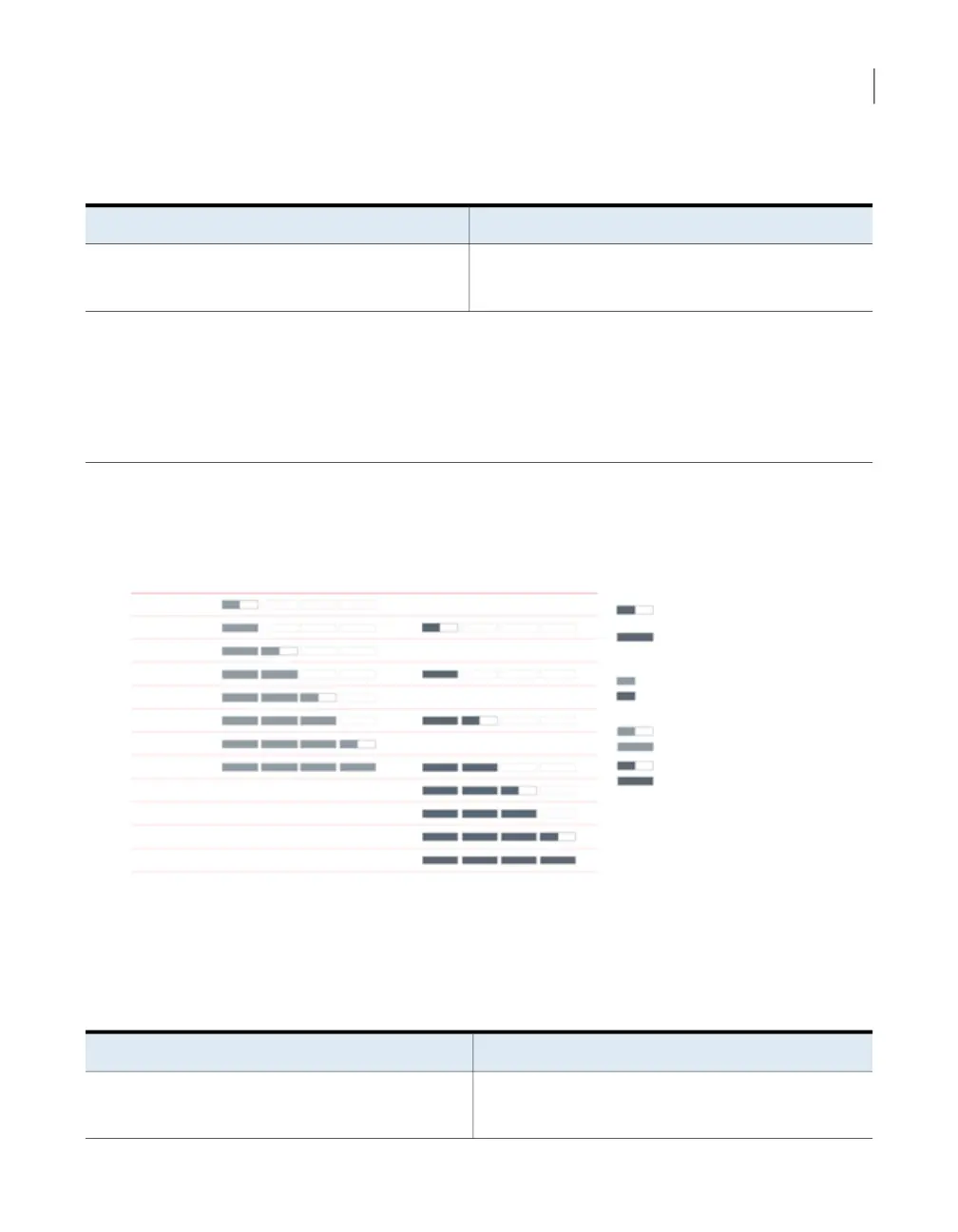

Figure 2-1
Available NetBackup 5340 Appliance 5U84 Storage Shelf
configurations
Total Capacity
With 4TB shelves With 8TB shelves
LEGEND:
Storage Shelf Population
Half populated 5U84 Storage Shelf – 45 disk drives
Fully populated 5U84 Storage Shelf – 84 disk drives
4TB 5U84 Storage Shelf
8TB 5U84 Storage Shelf
½ 4TB 5U84 Storage Shelf = 120TiB / 132TB
Full 4TB 5U84 Storage Shelf = 240TiB / 264TB
½ 8TB 5U84 Storage Shelf = 240TiB / 132TB
Full 8TB 5U84 Storage Shelf = 480TiB / 528TB
120TiB / 132TB
240TiB / 264TB
360TiB / 396TB
480TiB / 528TB
600TiB / 660TB
720TiB / 792TB
840TiB / 924TB
960TiB** / 1,056TB**
1200TiB** / 1,320TB**
1440TiB** / 1,583TB**
1680TiB** / 1,847TB**
1920TiB** / 2,111TB**
Table 2-2 shows the available storage shelf storage capacities for the 5340
Appliance running Flex software using 4-TB and 8-TB disk capacities.
Table 2-2
Usable Flex 5340 Appliance 5U84 Storage Shelf storage
capacities by disk drive capacities
Usable storage capacities (8-TB Drives)
*
Usable storage capacities (4-TB Drives)
*
480TiB
(528TB)
240TiB
(264TB)
42About the Veritas 5U84 Storage Shelves
